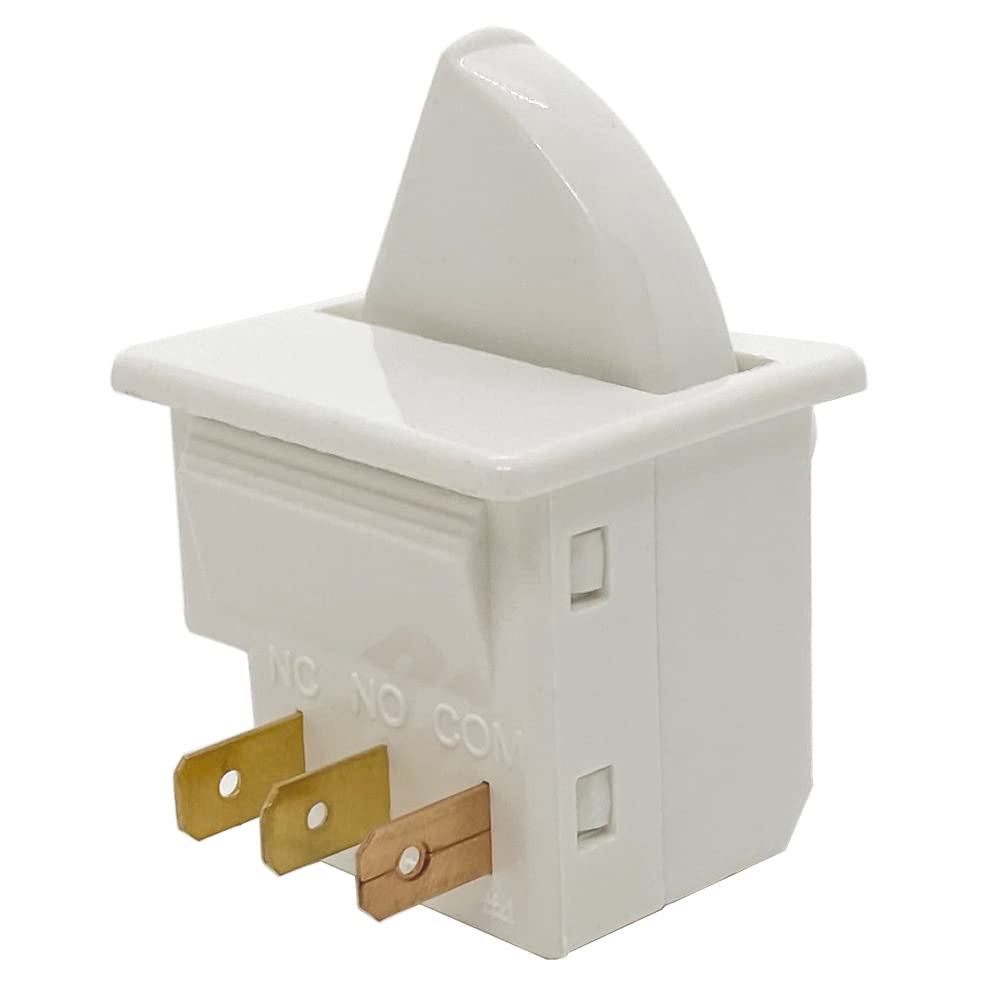

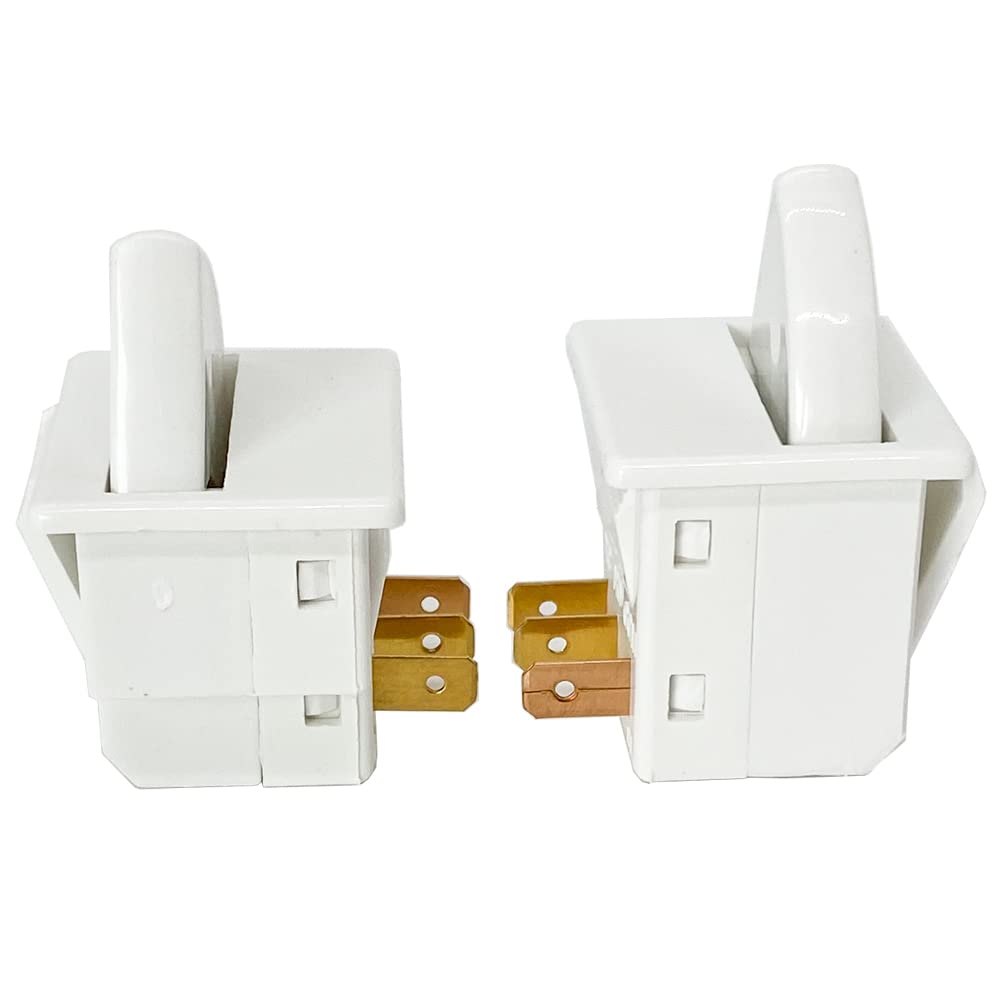

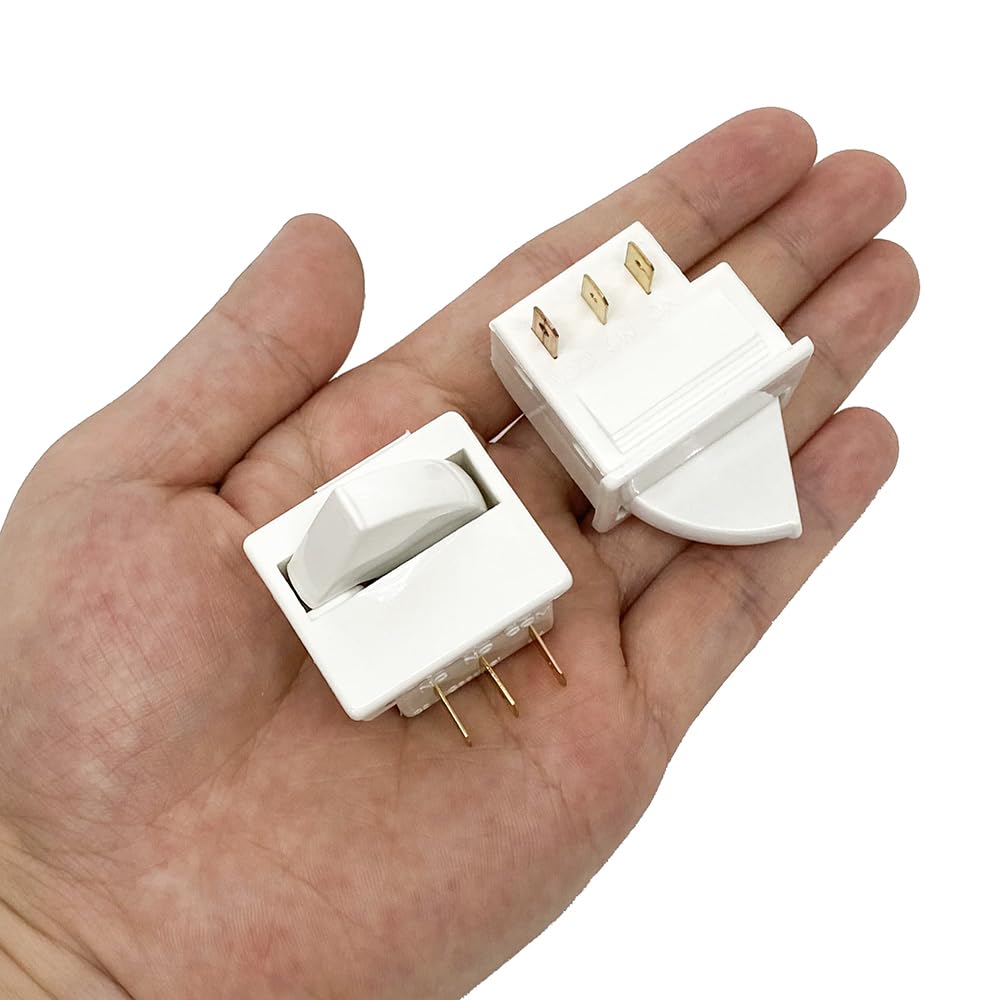

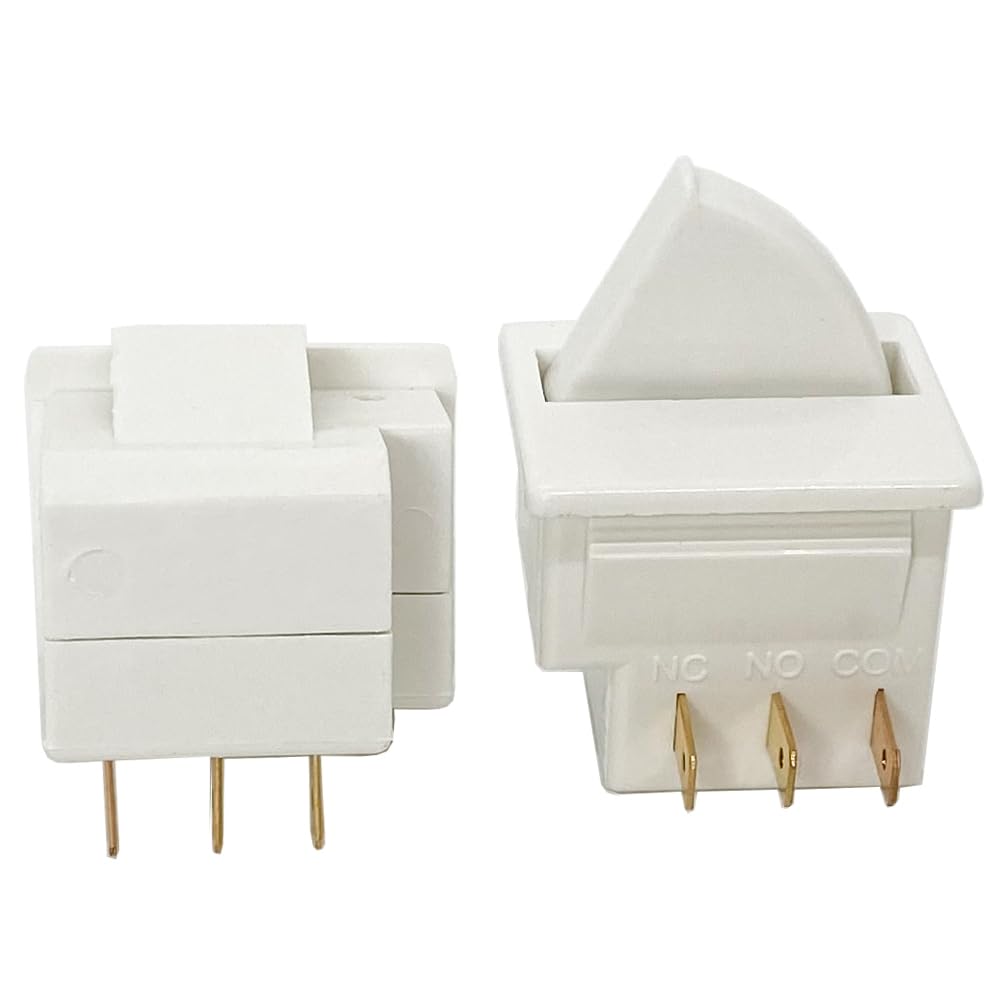

2Pcs Refrigerator Door Light Switch 3Pin Momentary Fridge Switch Compatible with GE, Whirlpool, LG, Kenmore, Maytag, Amana, Crosley, KitchenAid, Magic Chef Freezer Light Switches 1NC 1NO AC 250V 2.5A

Features: (Note that not all models are compatible)

1. This switch activates the refrigerator when the door is open; It also prevents the from working if the door is closed.

2. Install this refrigerator switch carefully, pay attention to sensive pole's direction; Normally correct direction is that door press on pole, pole will be pressed down; You can press its pole down by your hand to test this switch OK or not as do one simple conformation during your repairing.

3. With single pole options, these momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well.

4. The most common reasons for replacing the door switch are when the ice maker doesn’t work,or the fridge light doesn't work.

Specifications:

Product Name: 3pin Refrigerator Door Light Switch

Contacts Type: 1NO + 1NC + 1COM

Action Type: Momentary

Rated current: 2.5A 250V/6.0A 125V

Number of Pins: 3 Pin

Material: Plastic, Brass

Color: White

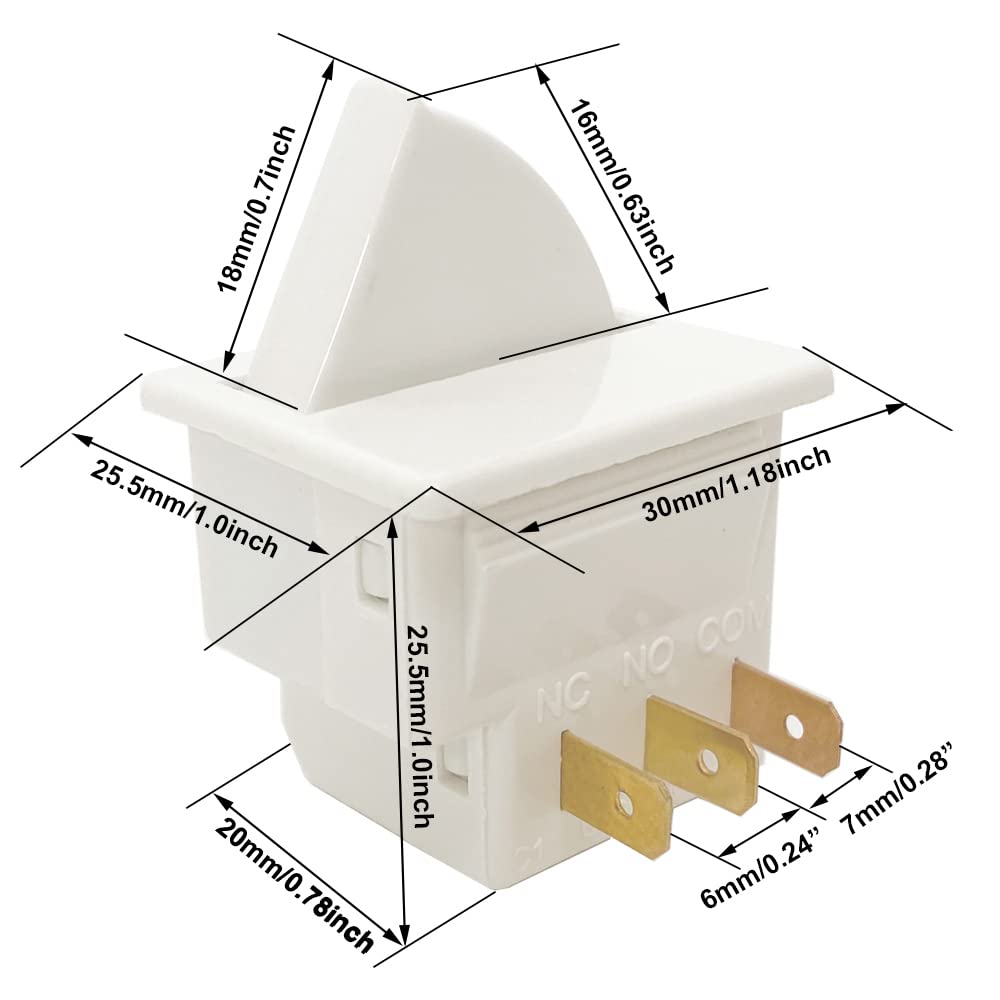

Panel Size: 30 x 25.5mm/1.18" x 1.0"

Height: 25.5mm/1.0" (Without buttons and pins)

Connect Pin Size: 8x4.8x0.5mm/ 0.31"x0.19"x0.02"(LxWxThickness)
