5pcs Dual Axis XY Joystick Module Game Control Lever Sensor Game Button Controller Breakout Shield Joystick Analog Thumb Stick KY-023 with Dupont Jumper Cable Line for Arduino PS2 Switch

Product performance:

1. Input voltage range: DC 3.3V to 5V
2. Output signal: module ad hoc two-way analog output and one digital output interface, the output value corresponding to (X, Y) biaxial offset, the type is analog; the button indicates whether the user presses the Z axis, Its type is digital switch.
3. Through the controller programming, plug the sensor expansion board to complete the creative remote interactive works.

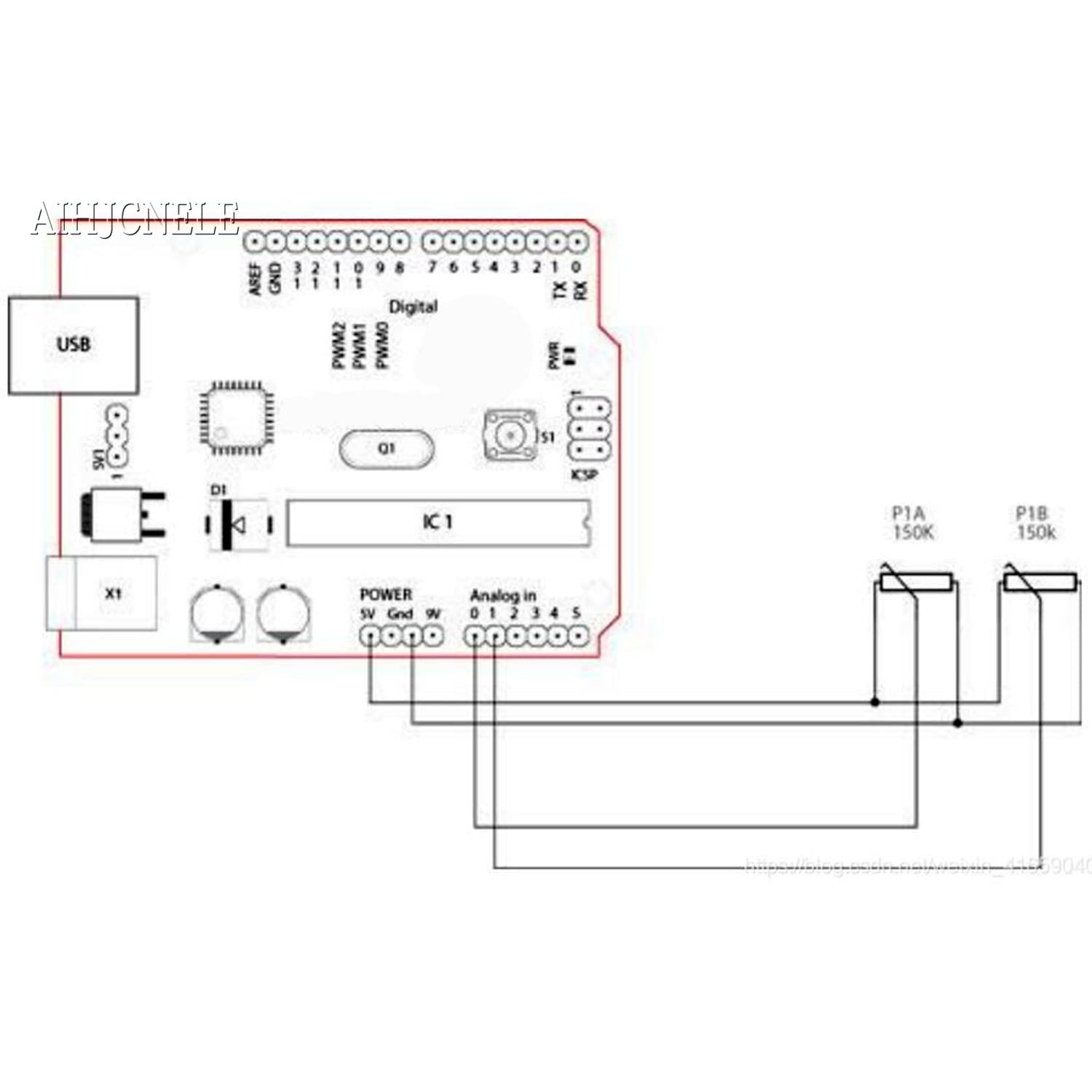

4. Cross rocker is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance changes. The module uses 5V power supply, the original state of X, Y read-out voltage of 2.5V or so, with the direction of the arrow down, read the voltage value increases with up to 5V; the arrow is pressed in the opposite direction, read the voltage value decreases , The minimum is 0V.
5. In fact, this module is a potentiometer, and the data output of x and y dimensions is the voltage value read by the analog port. The development board reads the voltage value and uses it.

Product parameters:

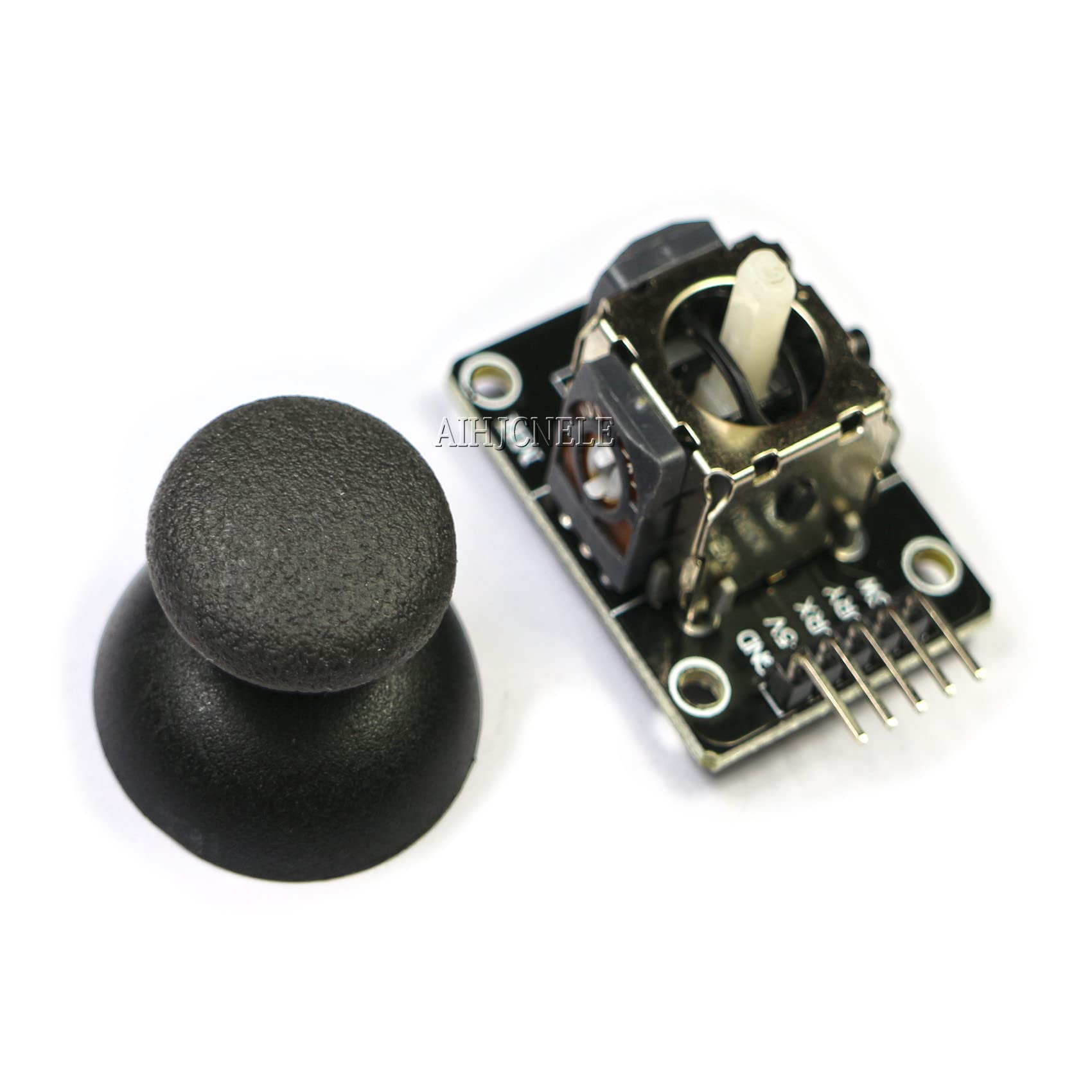

• Product Name: Rocker module (two-axis button rocker)

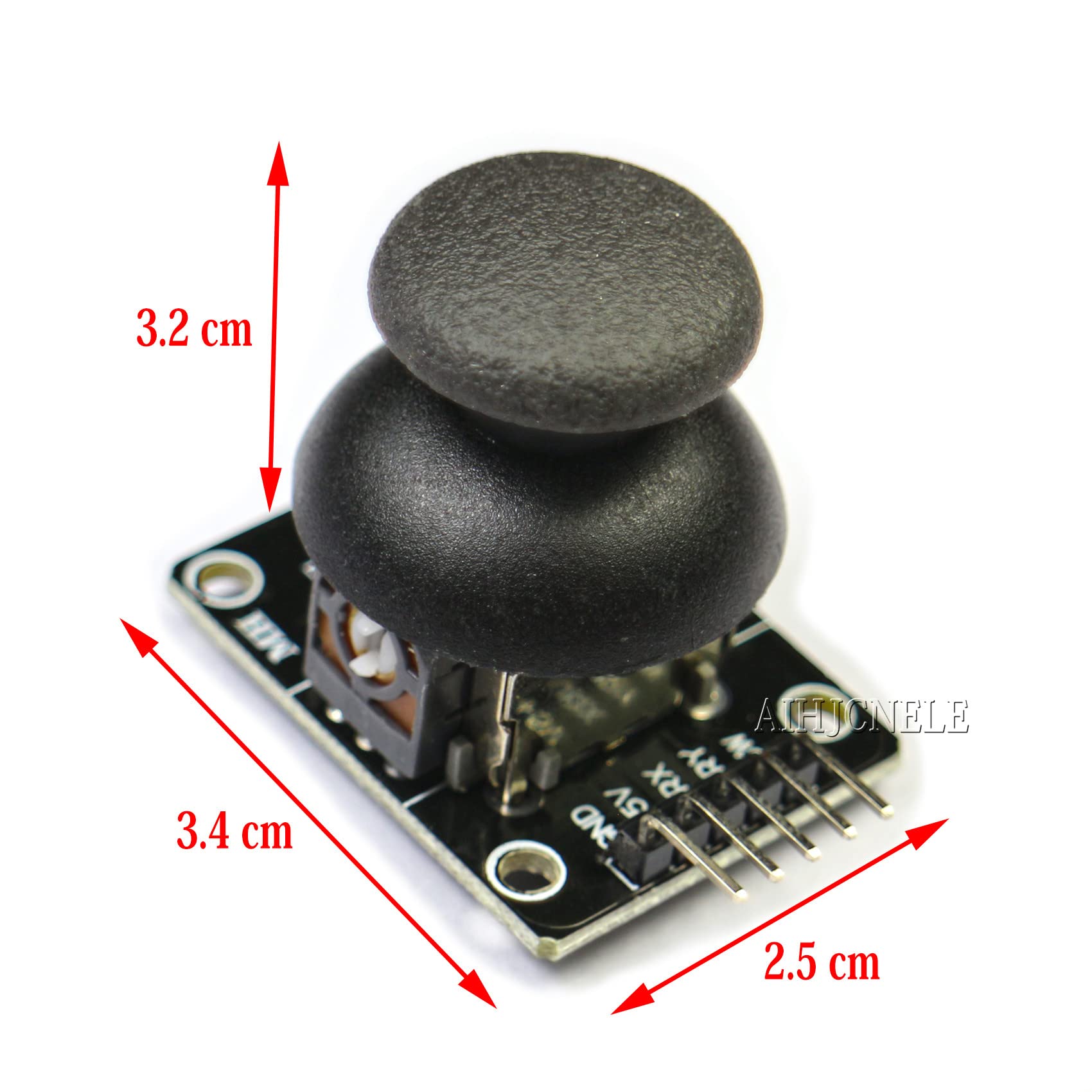

• Product Size: About 34.0mm * 26.0mm * 32.0mm (LxWxH)
• Weight : About 12g , Colour: Black
• Material: FR4 + Electronic component ABS
• DO port for digital output,
• AO port for analog output.

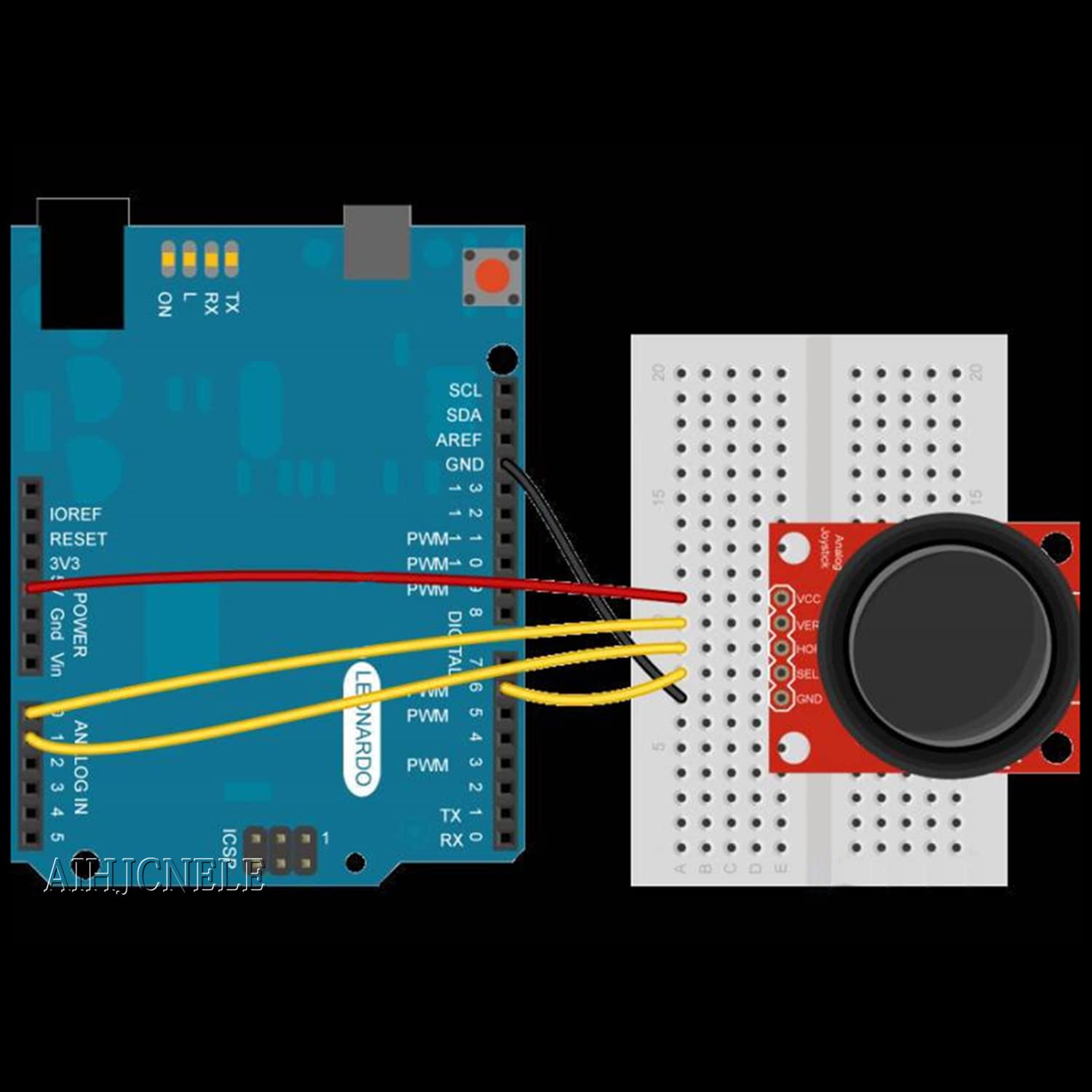

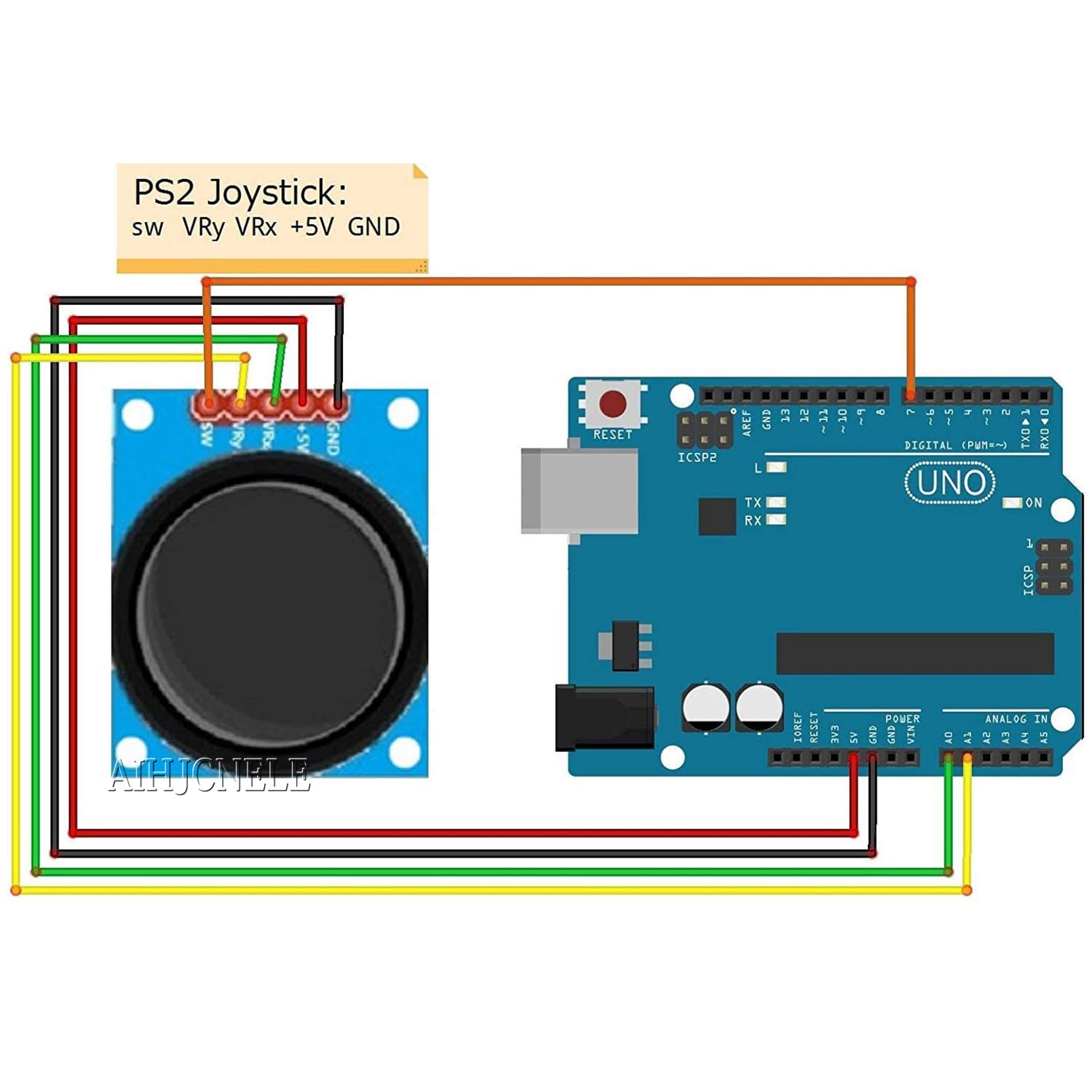

• Connector: +5Vcc - GND - VRx - VRy - SW
• Game joystick module suits for PS2 , connects to two analog inputs, the robot is at your commands with X,Y control.
• It also has a switch that is connected to a digital pin, convenient to use.
• 2.54mm PIN header interface, Easy wiring, Strong versatility
