Grade 1. Continuous power with the addition of an external power supply
Multiple door monitoring permitted with built-in external reed switches
Status Indicator: The LED will indicate RED when armed
Entry Delay Time Options: include 15 seconds, 1 minute 15 seconds & 3 minutes 15 seconds
Sleek design for use on standard size and narrow stile doors
Product Specifications
Part Number: PG21MS
Item Weight: 1.6 pounds
Product Dimensions: 1 x 1 x 1 inches
Item model number: PG21MS
Is Discontinued By Manufacturer: No
Finish: Metallic Silver
Voltage: 9 Volts
Item Package Quantity: 1
Sound Level: 95 dB
Mounting Type: Door
Included Components: PG21MS
Batteries Included?: Yes
Batteries Required?: Yes
Battery Cell Type: Alkaline
Product Information
From the manufacturer
Application:

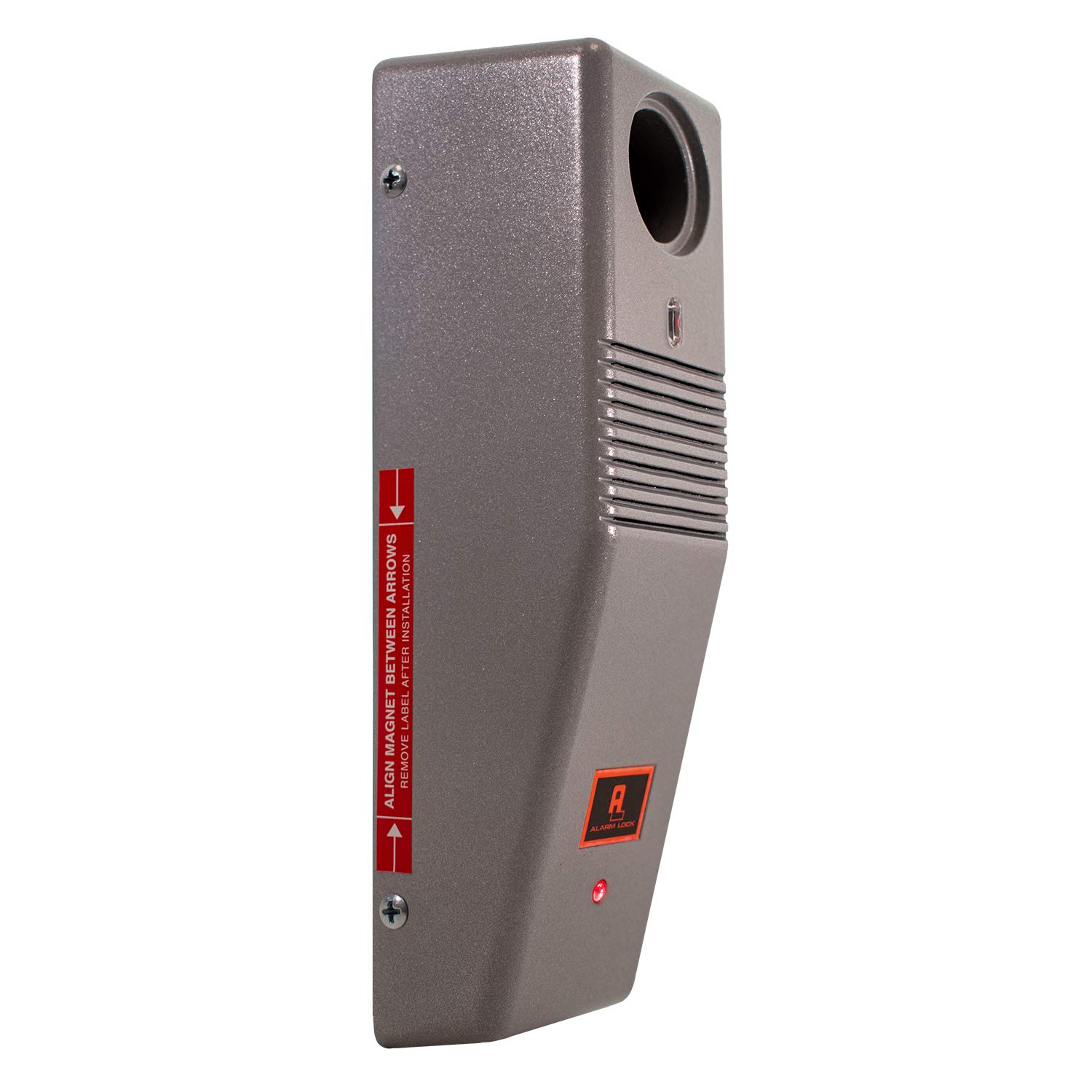

The PG21MS is a magnetic contact controlled door alarm for surface mounting on a door or door frame. Typical applications include emergency fire escape doors, nursing home stairwell doors, rear restaurant and theater doors. PG21MS is de- signed to continually monitor the status of a door. When opened, the protected door triggers an alarm sounder, an optional strobe or can activate another device via a Form-C relay.
Installation

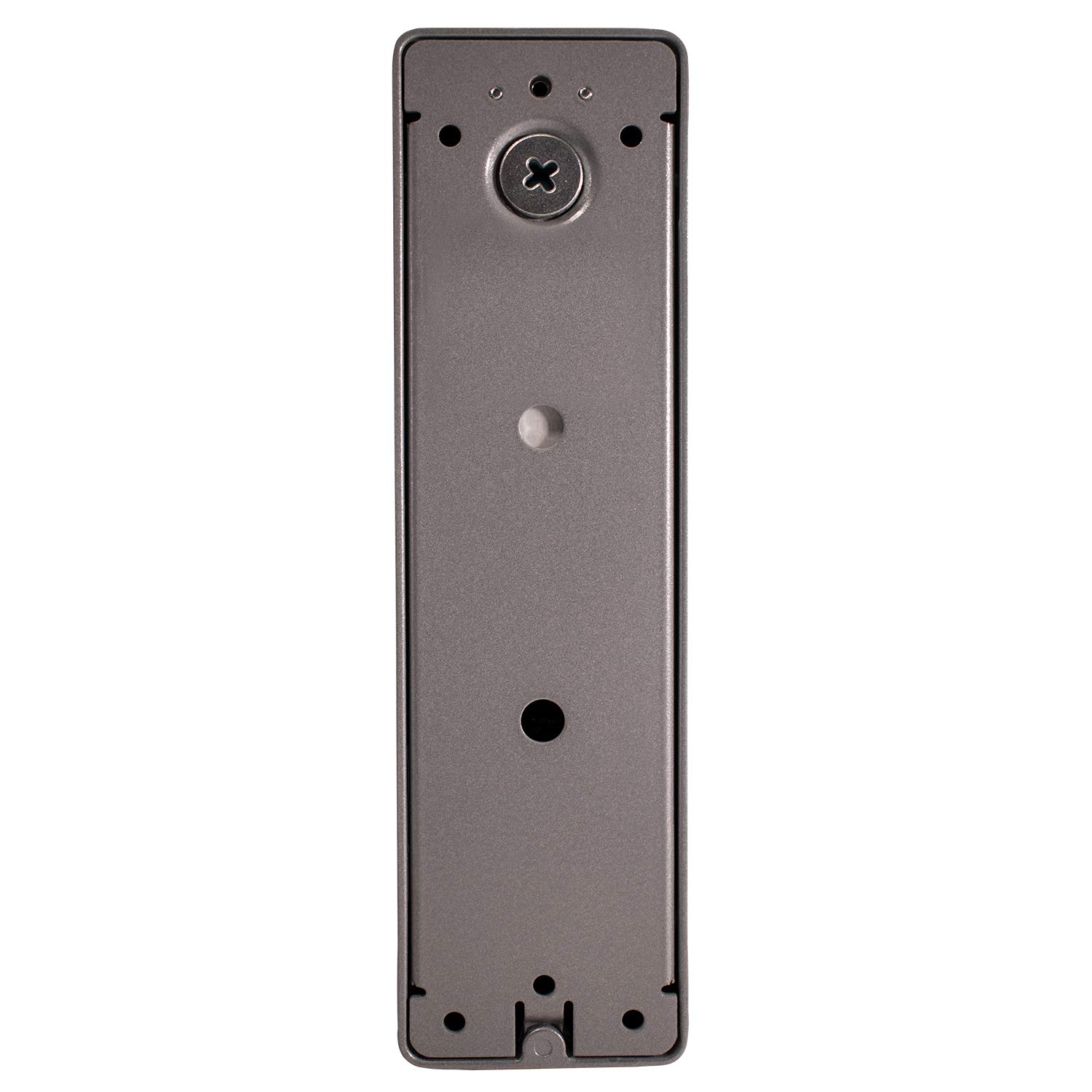

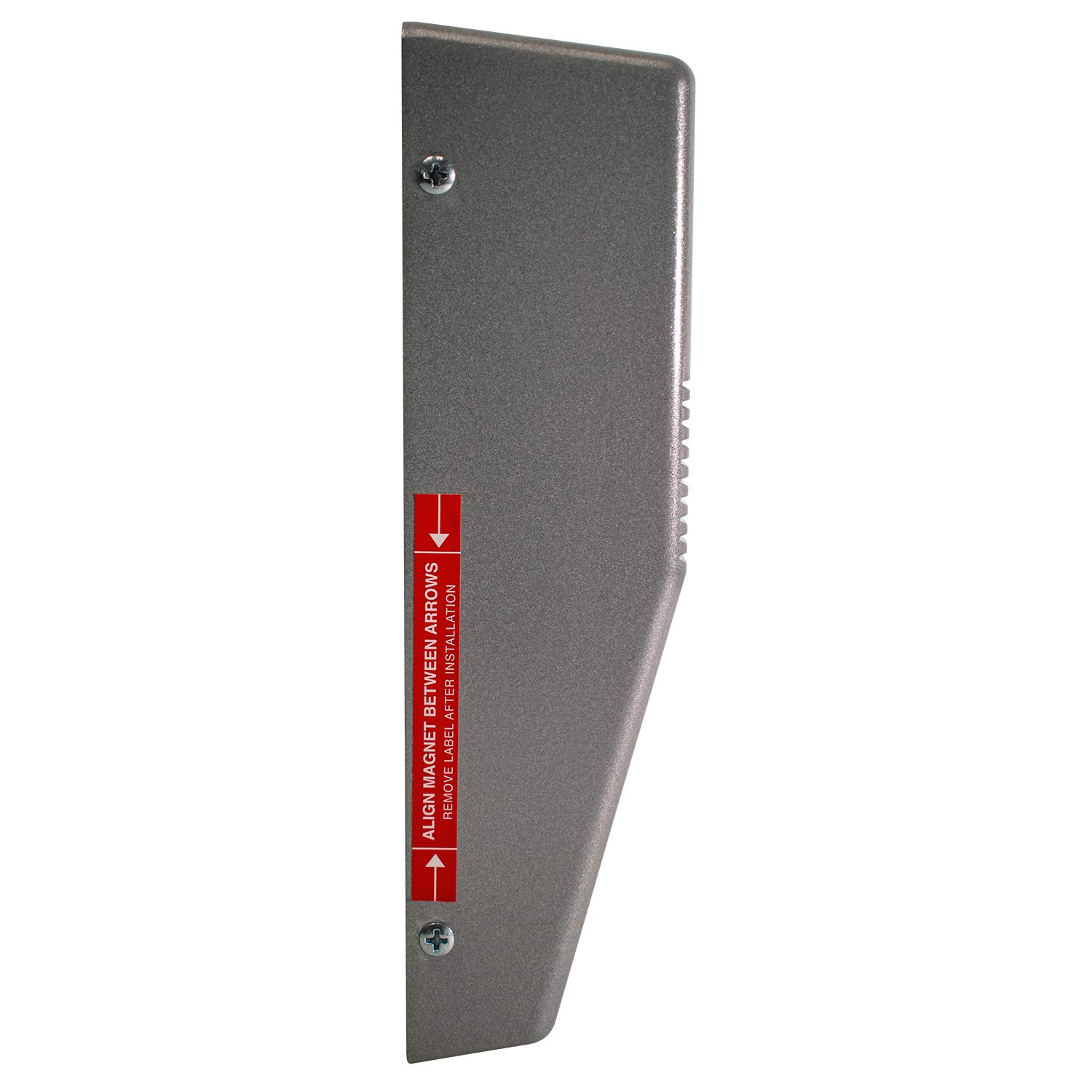

The PG21MS unit is usually mounted on the interior of the door frame or door and is paired with a magnet mounted on the opposing side of the door gap. Opening the door, when armed, will trip the internal relay thus activating the alarm.
Shipped in Always Armed mode can be converted to a manual On/Off mode (allowing the operator to manually arm or disarm with the key).

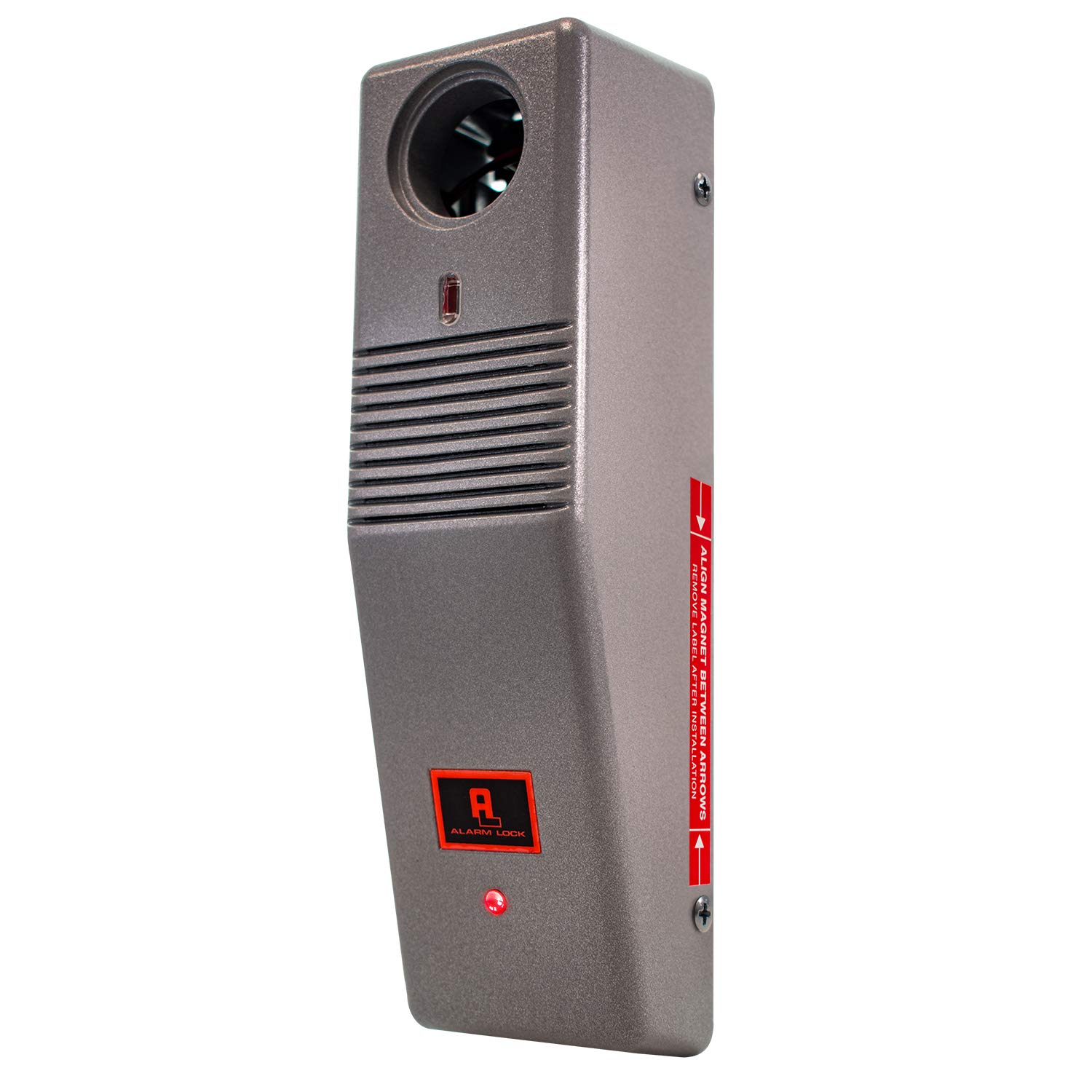

The Status indicator (located on the front of the Housing Cover) signifies whether the unit is armed or disarmed (red indicates armed status). A select-able annunciator feature beeps to signal the opening of the door while the unit is disarmed.
