【Intel Celeron Processor N5105 chip】Beelink mini pc U59 equipped with the innovative and small Intel 11 Jasper Lake Processor N5105 CPU up to 4Ghz, 4C/4T 4MB cache. This is one of the newest CPU produced by Intel with industry leading power efficiency, which means giant leap in your experience of office working, home theater and mall advertising.
【4K Triple Screen Display Dual HDMI+Type-C】Beelink mini computer U59 revolutionarily equips with Intel UHD Graphics, and innovatively support 4K and Triple screen display. The output of excellent high definition photos and videos by our machine gives you immersive entertainment beyond anything you can imagine.

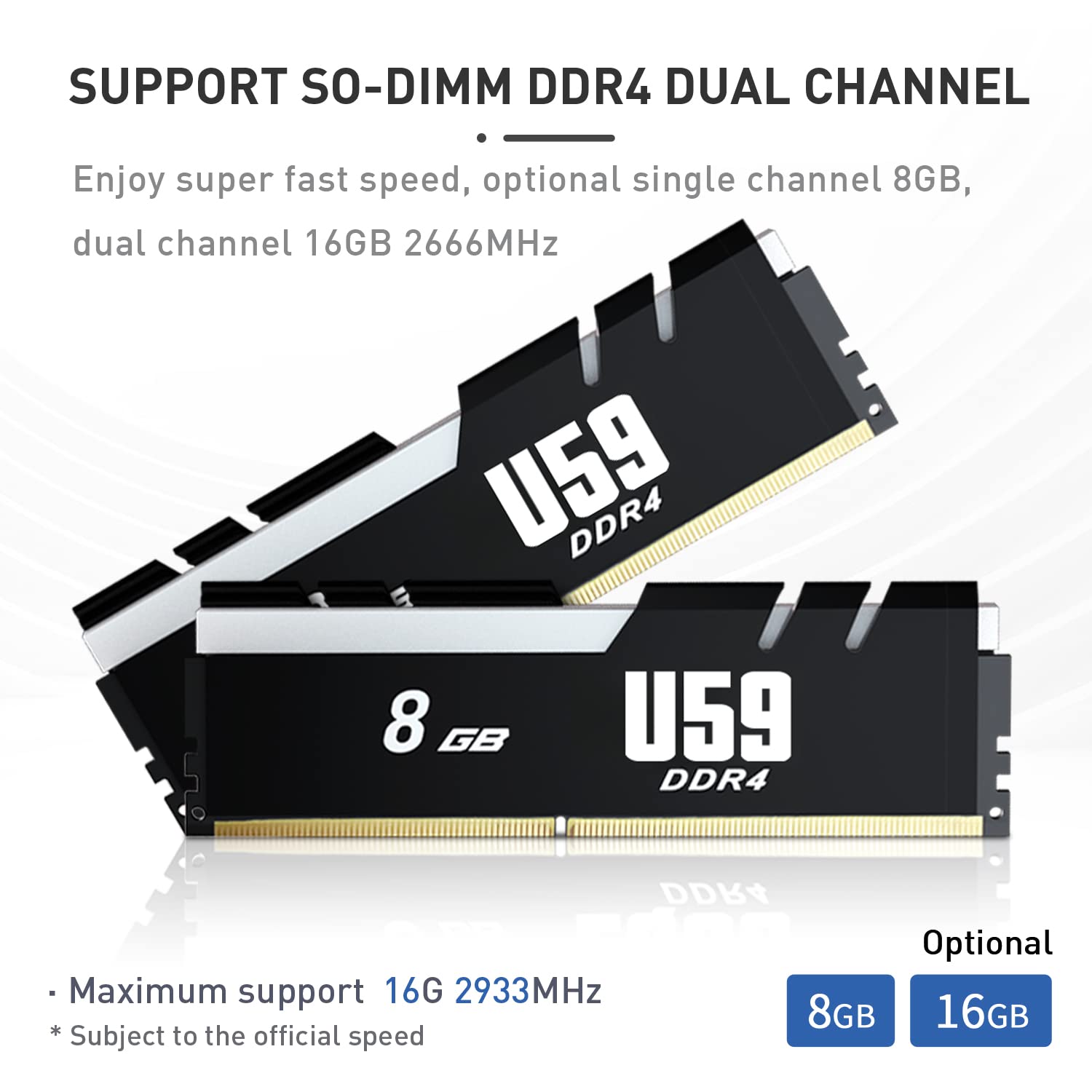

【Support Storage Expansion】Beelink micro pc U59 has large internal and external storage, support max 16G DDR4 and max 2TB SSD, which means it can accommodate all your constructive and creative software applications, smoothly deals with all your important document edit. The tiny body size it has, but with incredible tasks solving ability.
【More Ports Designed】This mini desktop computer has DC Jack*1, USB 3.0*4, RJ 45 1000m*2, HDMI*2, Audio Jack(HP&MIC)*1, Type-C*1. The innovative design of multi interfaces builds up bridge for direct and fluent connection between U59 and other machines, which means you can easily integrate different machines and create big change in efficiency.
【Compact size 】The passionate and creative designer of our company successfully integrated all the precision components into such a small size case so that it is light and portable, which means you can take it anywhere easily as you want. The concise and elegant design, with the mysterious black color, transmits information to other people that you have graceful taste.
Product Specifications
Screen Resolution: 3840 x 2160
Max Screen Resolution: 3840 x 2160
Processor: 2.7 GHz celeron
RAM: 8 GB DDR4
Memory Speed: 100 MHz
Hard Drive: 500 GB SSD
Graphics Coprocessor: Intel UHD Graphics
Chipset Brand: Intel
Card Description: Integrated
Graphics Card Ram Size: 3.00
Wireless Type: 802.11a/b/g/n/ac
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 4
Brand: Beelink
Series: Beelink U59 Mini PC
Hardware Platform: PC
Operating System: OS
Item Weight: 1.65 pounds
Product Dimensions: 4.88 x 4.45 x 1.65 inches
Item Dimensions LxWxH: 4.88 x 4.45 x 1.65 inches
Color: U59 8GB DDR4 & 500GB SSD
Processor Brand: Intel
Number of Processors: 4
Computer Memory Type: SODIMM
Flash Memory Size: 256 GB
Hard Drive Interface: eSATA
Power Source: AC
Product Information
Product description
Why choose Beelink U59 Mini PC?
Flexible Expansion Options: 8GB/16GB DDR4 offers you smoothly and extremely fast operation. 500GB SSD which has in data read and write speed with 500MB/S. Reserved on M.2 SATA 2280 SSD expansion slot, it supports lager SSD hard driver expansion.
Supports Dual 4K Screens Display: Beelink U59 mini PC comes with 4K&Kodi UHD Graphics,With 2 HDMI outputs port, you are able to connect two monitors at the same time, which helps you improve working efficiency and greatly save your time.
Multi-function Interfaces: Built-in various ports including 1 x DC Jack, 4 x USB 3.0, 1 x RJ45 1000M, 1 x Audio Jack (HP&MIC), 2 x HDMI ports, 1 x Type-C port, the mini PC has extensive compatibility. You could connect it with projector, monitor, TV, headset, speaker, etc.
Small and Portable : measuring only 4.88X4.45X1.65 in and weight 0.71 LB, this small computer could be taken everywhere easily. You could also mount it on the back of the monitor, which greatly saves your place.
Support Linux: OpenSUSE Tumbleweed/ Fedora 36 Workstation/ Debian 11/ LMDE 5/ Linux Mint 21/ Ubuntu 22.04LTS
Streaming Media OS: Plex
parameter details of this high performance product
Dimension
4.88X4.45X1.65 in
CPU
Intel Processor N5105 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz)
Graphics
Intel UHD Graphics
DDR4
8G/16G
Storage SSD
500G
Wireless LAN
802.11 b/g/n/ac Bluetooth 4.0
Interface
DC Jack*1 + USB3.0*4 + RJ45(1000M)*2 + HDMI*2 + Audio Jack (HP&MIC)*1 + Type-C*1
Internal Connector
M.2 SATA SSD 2280*1 + SATA HDD(2.5in 7MM)*1 (not included)
CPU: Intel celeron Processor N5105 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz)
GPU: UHD Graphics
Wireless LAN: 802.11 b/g/n/ac, 2.4+5GHz WiFi, Ethernet 1000Mbps LAN
Adapter: 12V/3A 36W Certification
Input: 100-240V AC, 50/60Hz , Output: 12V 3A
Low power consumption and strong performance !!!
The Beelink U59 uses a 12V 3A power adapter. One day power consumption is 12x3x24=0.86° .
The product is made with Intel N5105 CPU 10NM with up to 2.9Ghz frequency to meet daily work and watch 4K video
Dual screen 4K display.
Multi-interface expansion, support and indoor equipment interconnection, printers, projectors, audio, movie playback devices
Dual Gigabit network interface, HDMIx2, USBx4, dual-screen wifi, USB-C interface supports Openwrt and HA , Home interconn
Plex or Home Serves
performance parameters

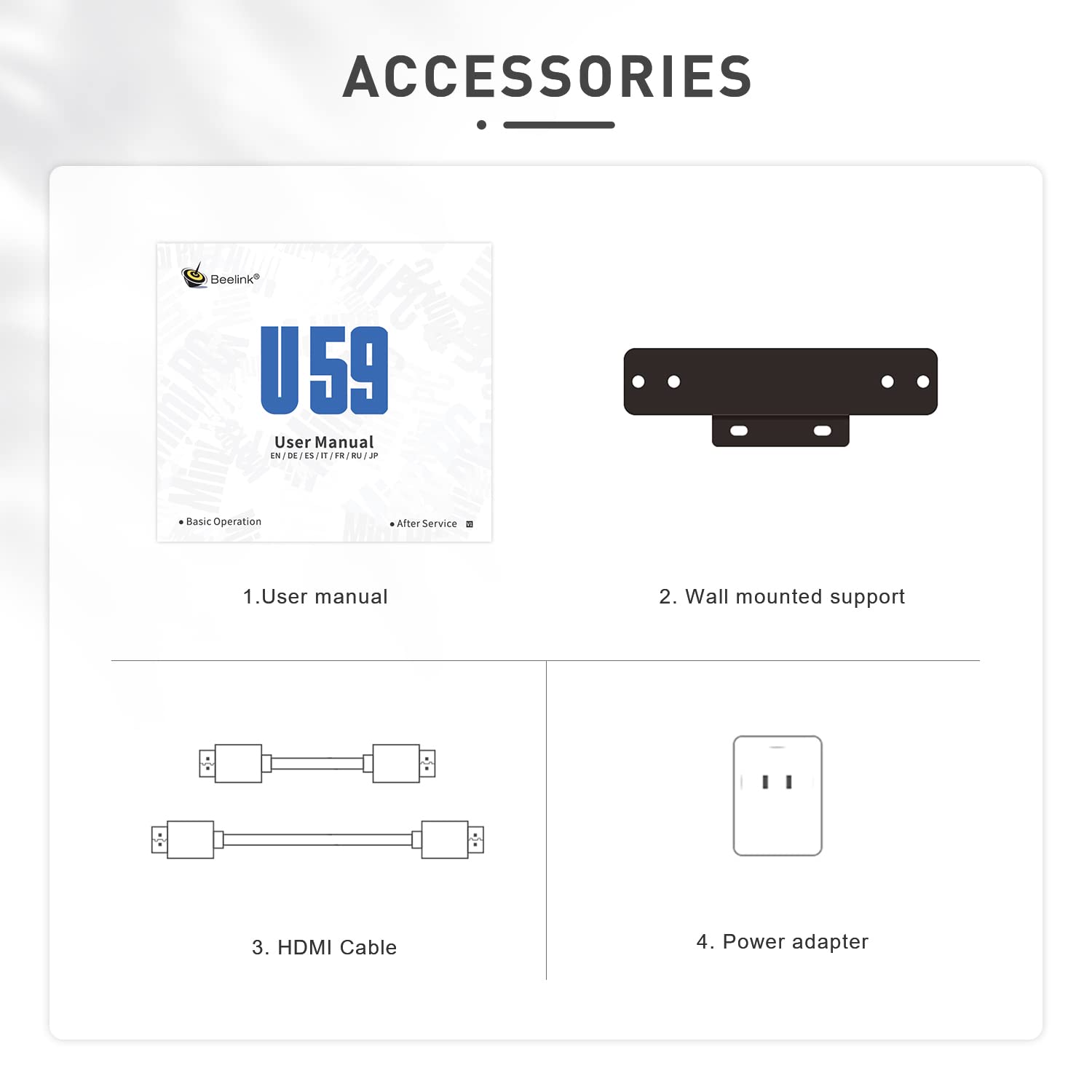

What are inside the package?
Mini PC*1
User manual *1
Wall-mounted bracket*1
HDMI*2 20CM&80CM
Power adapter*1
Rich ports design
4*USB 3.0 ports,
1*type-c
2*HDMI ports
2*RJ45 1000M
1*Audio Jack
Lightweight and protable
Machine weight : 0.71LB
Dimension:4.88X4.45X1.65 inch
Q1: What should I do if I don't like the system?
A1: Please do not return, please contact the service staff of our store to get other system files and tutorials.
Q2: What should I do if I find a product with a lower pr~ice within a month?
A2: Please do not ret~urn, contact our store staff to ref~und the difference, Beelink Direct let you enjoy the lowest pr~ice.
Q3: What should I do if a product defect is found?
A3: Please do not return it, you can contact our staff to solve the problem for you, or make compensation. We offer 1-year factory professional support & 7*24 hours online service.
A5: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display your desktop. If you don’t see the monitor, select Detect.
Q6: How to get out of sleep mode
If you are using a Bluetooth keyboard and mouse, please press the power on button directly.
If using a wired keyboard and mouse, the computer sets the mouse to wake up after. Just click the mouse directly in sleep mode.
Q7:How to installation Plex
The Beelink U59 can install the Plex system with the tutorial available on the web.
