Used for Mirror Diameter: 20mm, Lens Diameter: 20mm, Focal Length of Lens: 50.8mm
Made of aluminium. Integrative fixture mount with air assist nozzle.
This component is for general configuration. There are some differences between different cutting opportunities, and some modifications may be needed. Please pay attention to whether the dimension size of the product matches your machine.
Replacement Parts for CO2 Laser Engraving Machine
Package 7 pcs: 1 pcs laser head set & 1pcs USA CVD focus Lens(D20 FL50.8) & 3 pcs Mo mirrors (D20mm)

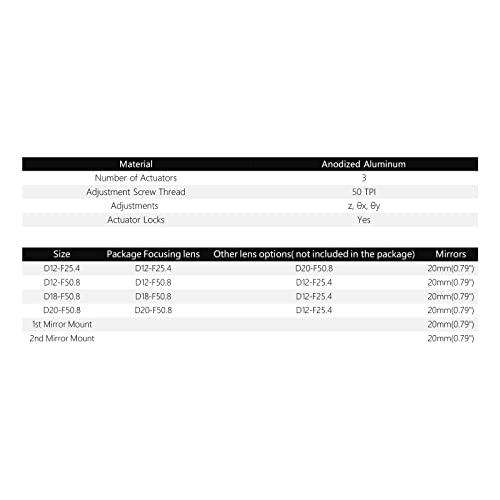

Product Specifications
Package Dimensions: 7.8 x 5.51 x 4.29 inches
Item model number: K Series
ASIN: B07P1YLR2T
Customer Reviews: 4.3 out of 5 stars 43Reviews
Best Sellers Rank: #249,399 in Arts, Crafts & Sewing (See Top 100 in Arts, Crafts & Sewing) #867 in Jewelry Making Engraving Machines & Tools #4,170 in Craft Cutting Tools
Item Weight: 1.32 pounds
Manufacturer: Cloudray
Date First Available: November 1, 2018
Product Information
Product description
Profuct Features

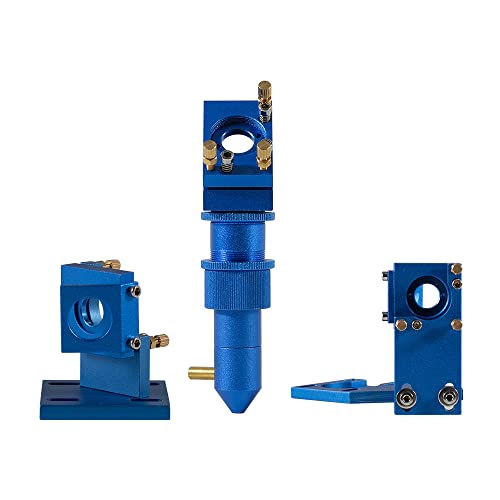

K Series Laser Head Set +Lens +Mirrors
Mirror Diameter :20mm
Lens Diameter: 12/18/20mm
Focal Length : 50.8mm
Package In Detail
1 pcs K Laser head (D20 FL50.8)
1 pcs 1st Mirror Mount
1 pcs 2nd Mirrount Mount
1 pcs USA CVD Focus Lens(D20 FL50.8)
3 pcs Mo Mirrors (D20)
Advantages
High precision
Easy to install
Long Working life
Aluminium with Blue Oxidiation Coating
Integrative Fixture Mount with Air Assist Nozzle
Only Dia.12mm lens tube can be adjustable.
Difference:
Ony the Dia.12mm lens tube can be adjustable.

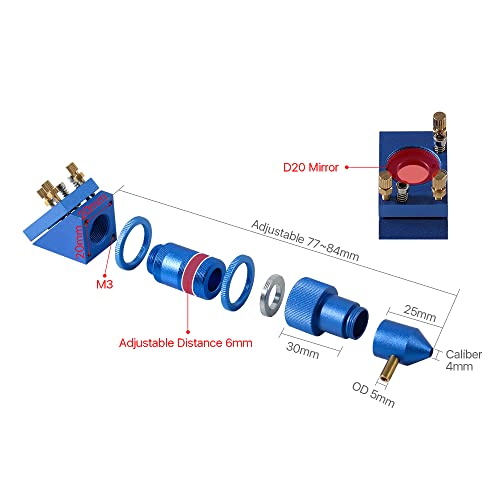

The adjustable lens tube height is 56-74mm.
Size Of Laser Head Set (For Lens D12mm FL50.8mm)
Size Of Laser Head Set(For Lens D18/20mm FL50.8mm)

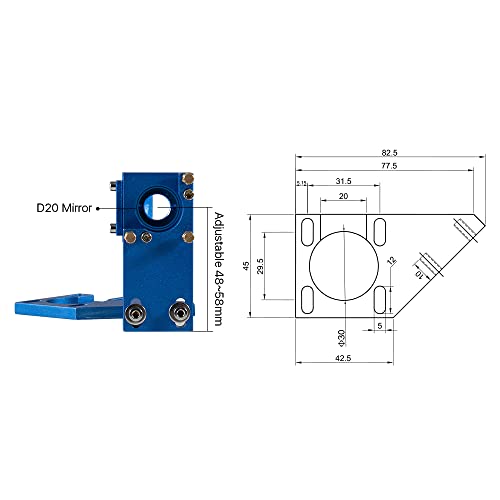

Size Of 1st & 2nd Mirrounts
Features Of The Part Product
Notice Of K Series Laser Head Set
K40 has differernt structures. Some can use this laser beam set directly.
Sometimes, you need to make some modifications to the structure of the machine.
If it isn't a direct fit for your machine, maybe you need a custom head mounting plate.

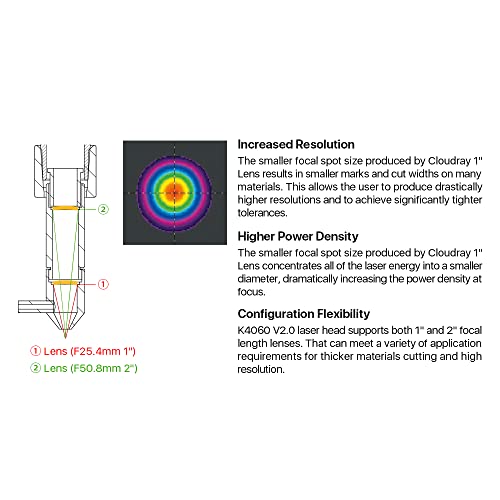

USA CVD Material Focus Lens
Excellent Optical Properties.
Up to 200W CO2 Laser Resistance
laser.Laser Transmittance Up To 99.5%.
Smaller Focusing Spot Size
Mo Mirrors
Mateial: Molybdenum
This optical element is used for planar reflecting the laser beam
Molybdenum mirror is normally polished, without coating
Used for tough environments. it has extremely tough surface.
