[Active Equalizer]Can be used alone or compatible with any brand of BMS.Suitable for Li-ion/LifePO4 battery packs

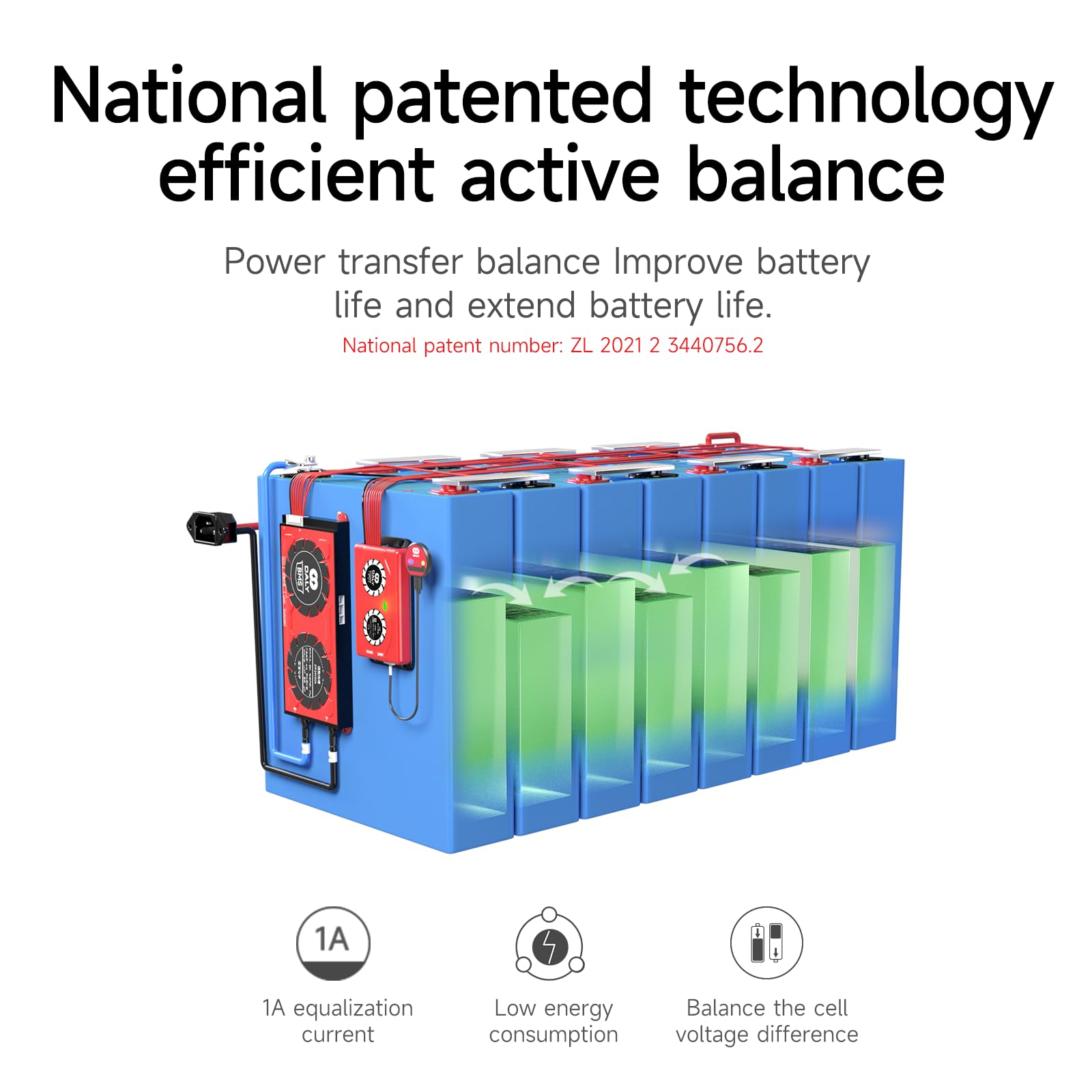

[Working Principle] Balanced by energy transfer, with high efficiency, less energy loss and low heat generation. Ensure battery consistency and extend the battery life. Balanced current: 0.1-1A, Voltage equalisation accuracy: 0.01V;
[24-hour equalization] Not limited by battery charging, discharging or static, sleep mode, etc. Intelligent detection of battery voltage, automatically turn on/off balancing.
[Smart active balancer]Support UART/RS485 communication, Bluetooth APP can view battery balancing information at any time. Indicator light on/flashing: balanced state; indicator light off: non-balanced state/fault.
[Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please feel free to contact me, we will give you a perfect solution.

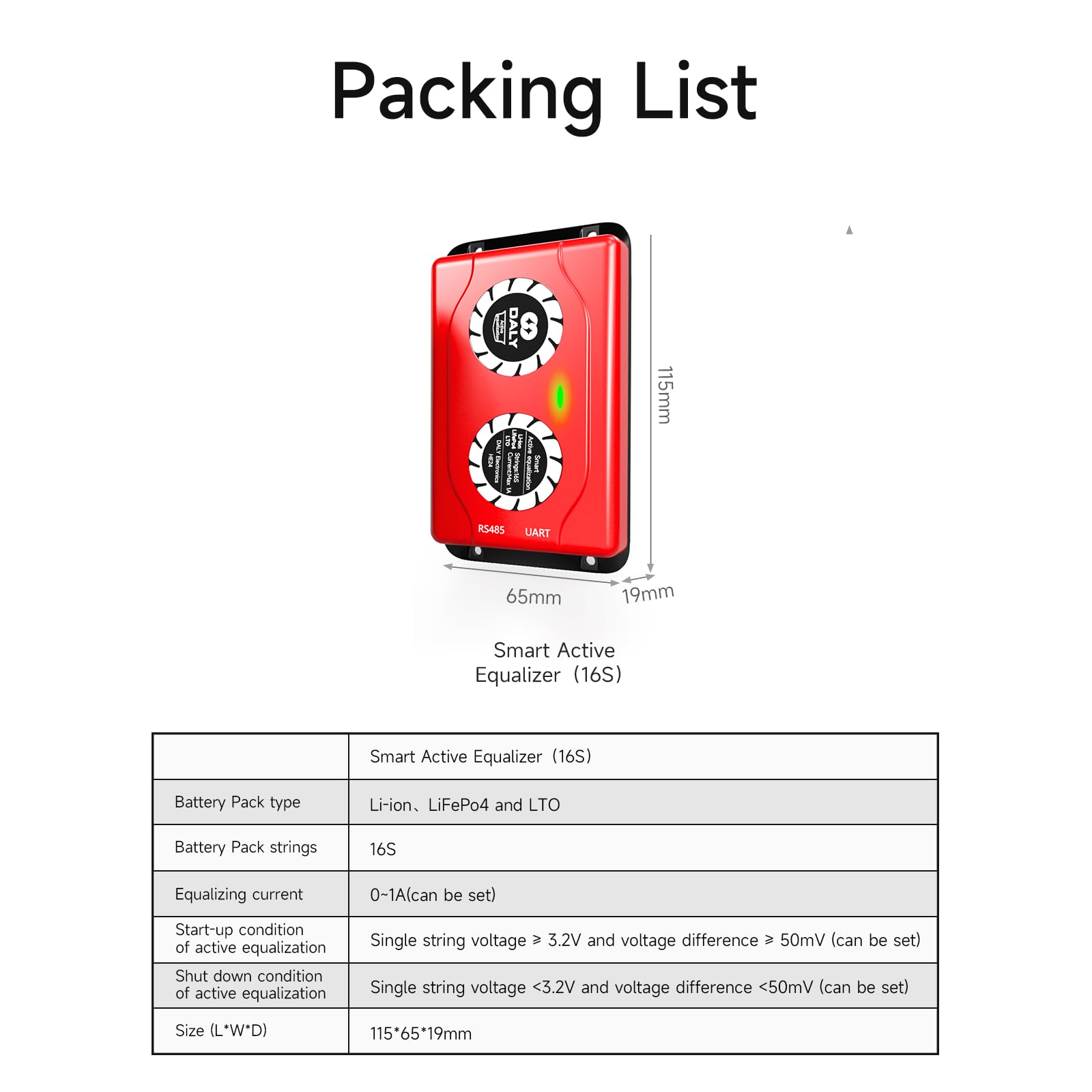

Product Specifications
Product Dimensions: 4.53 x 2.6 x 0.75 inches
Item Weight: 5.6 ounces
ASIN: B0B5LJLRRL
Customer Reviews: 4.2 out of 5 stars 70Reviews
Date First Available: July 1, 2022
Manufacturer: Dongguan Daly Electronics Co., Ltd
Product Information
Product description
The Equalizing Current is 0A~1A and it is setable.
Balance current: 0.5A~1A
Working power consumption: <11mA
Sleep current: 300uA
Working temperature: -20℃~60℃
Communication method: UART/RS485
Data monitoring: Bluetooth APP/ computer
Indicator light: light on/flashing: voltage equalizing
Unlimited working conditions: Active equalization can work normally whether the BMS is charging, discharging, or in a static or dormant state.
The active balancer will not be stopped by the condition of battery such charging, discharging, static and dormant.
Once the voltage difference between each string of cells reaches 50mV, it will be automatically turned on.
The voltage difference to turn it on can be set (≥20mV).
When the voltage difference between each string of batteries is less than or equal to 20mV, the equalization function will be automatically turned off.

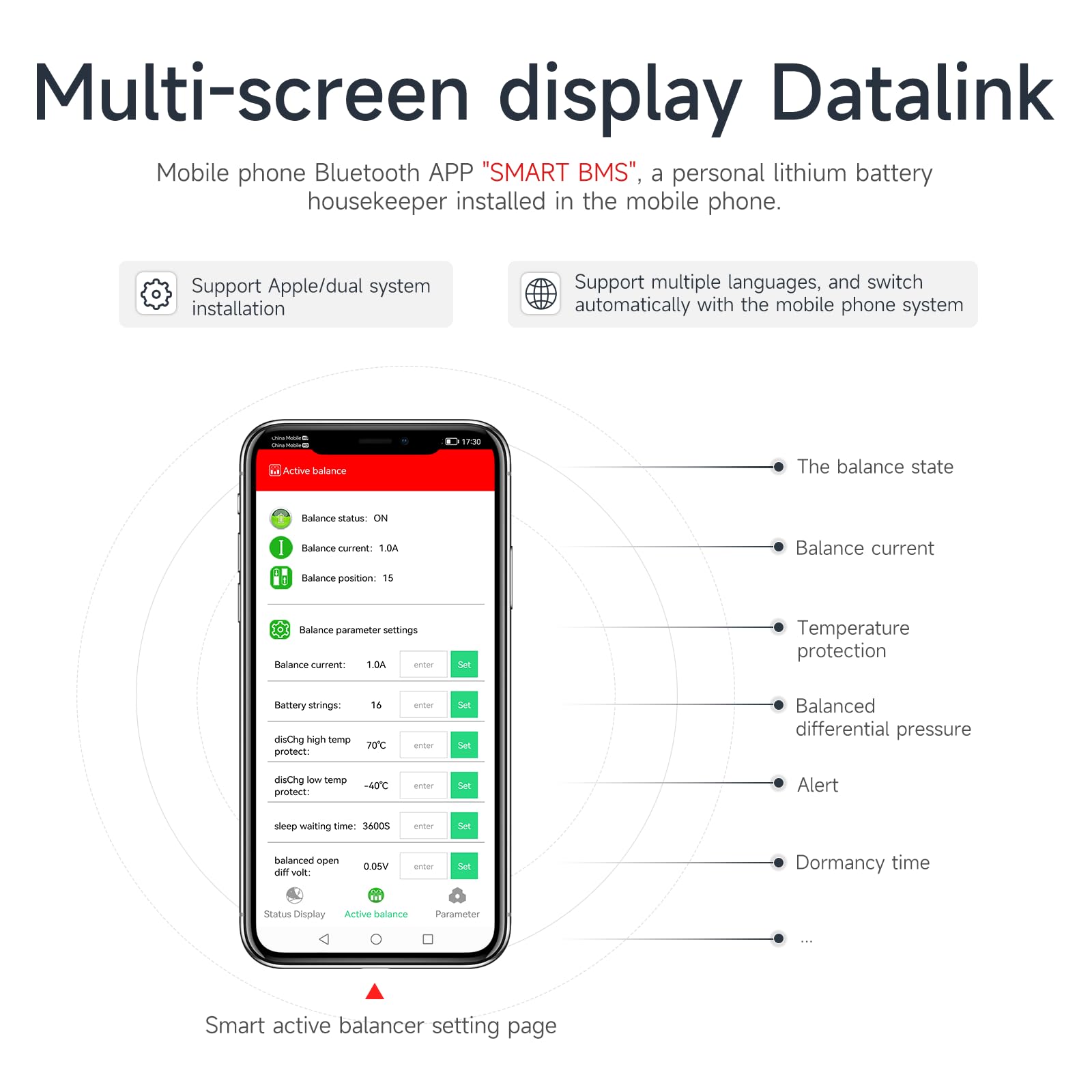

Smart Communication and Real-time Control: daly bms app
Smart Communication and Real-time Control: PC computer
How to connect:
Please connecting your battery and collecting wire first and then connecting the active balancer with collecting wire.
Please make sure the battery pack is workable before connecting.
The black wire is connected to the total negative pole of the battery pack, and the red wire is connected to the positive pole of each string of batteries.
How to download communication software:
The number of strings of active balancer and battery pack should be the same.
