Function

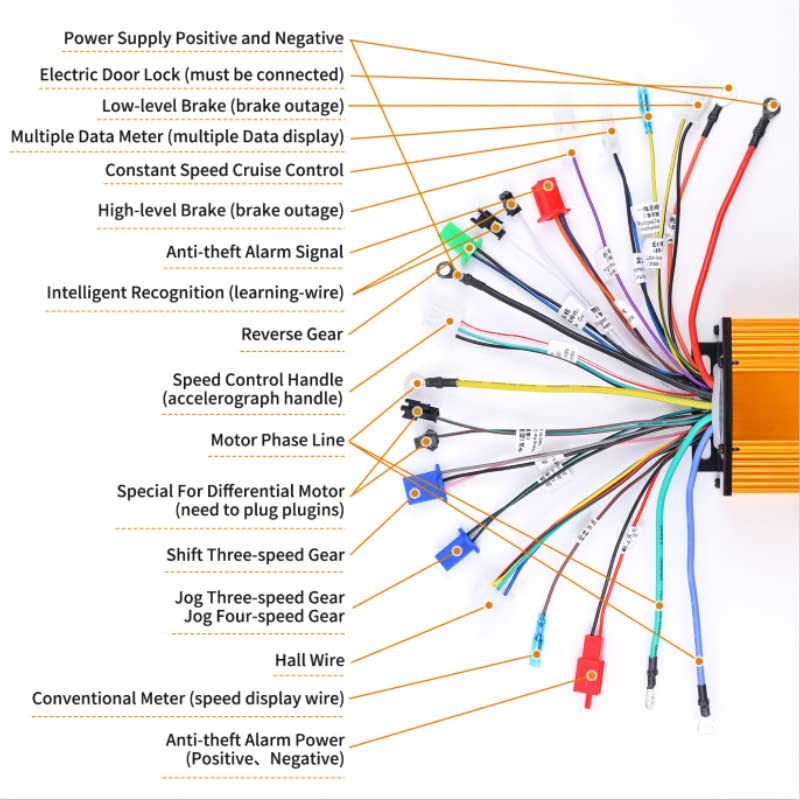

power supply positive pole, power supply negative pole, electric door lock, motor phase line, Hall line, acceleration switch line, shift three-speed line, jog three-speed line, low-level brake line, high-level brake line, ordinary Instrument line, one-line instrument line, fixed-speed cruising line, anti-theft alarm power line, anti-theft alarm signal line, reverse gear line, intelligent identification self-learning line.

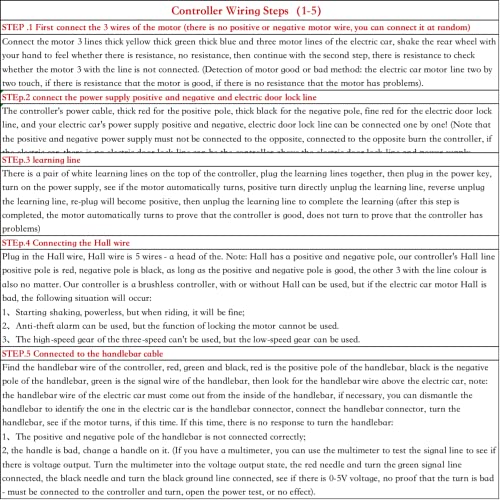

How to connect ？

1.connect the phase line(color to color）

2. connect the battery line(red wire :battery + , black:battery-)

3. connect the controller throttle line（color to color），connect electric door lock（if your throttle not have electric door lock，controller electric door lock can be shorted）

4. connect the hall line(if motor without hall line, don't need connect)

5.docking the two self-learning lines, the wheel will forward or reverse.
