Quality: Proven High-Quality build over years of testing, customer records and Amazon reviews the impact resistant, thermoplastic body protects the black dyer outlet from wear over time in all applications
NEMA 14-50R: assures compatibility with (EV) Electric Vehicles (please see your manufacturer's manual for compatibility) as well as electrical dryers, RV's, Ranges, welders and a broad range of other applications. Fits all 1-gang wallplates. We highly recommend the installation of this dryer outlet with a 2 gang wall plate to make the installation process easier with more space.

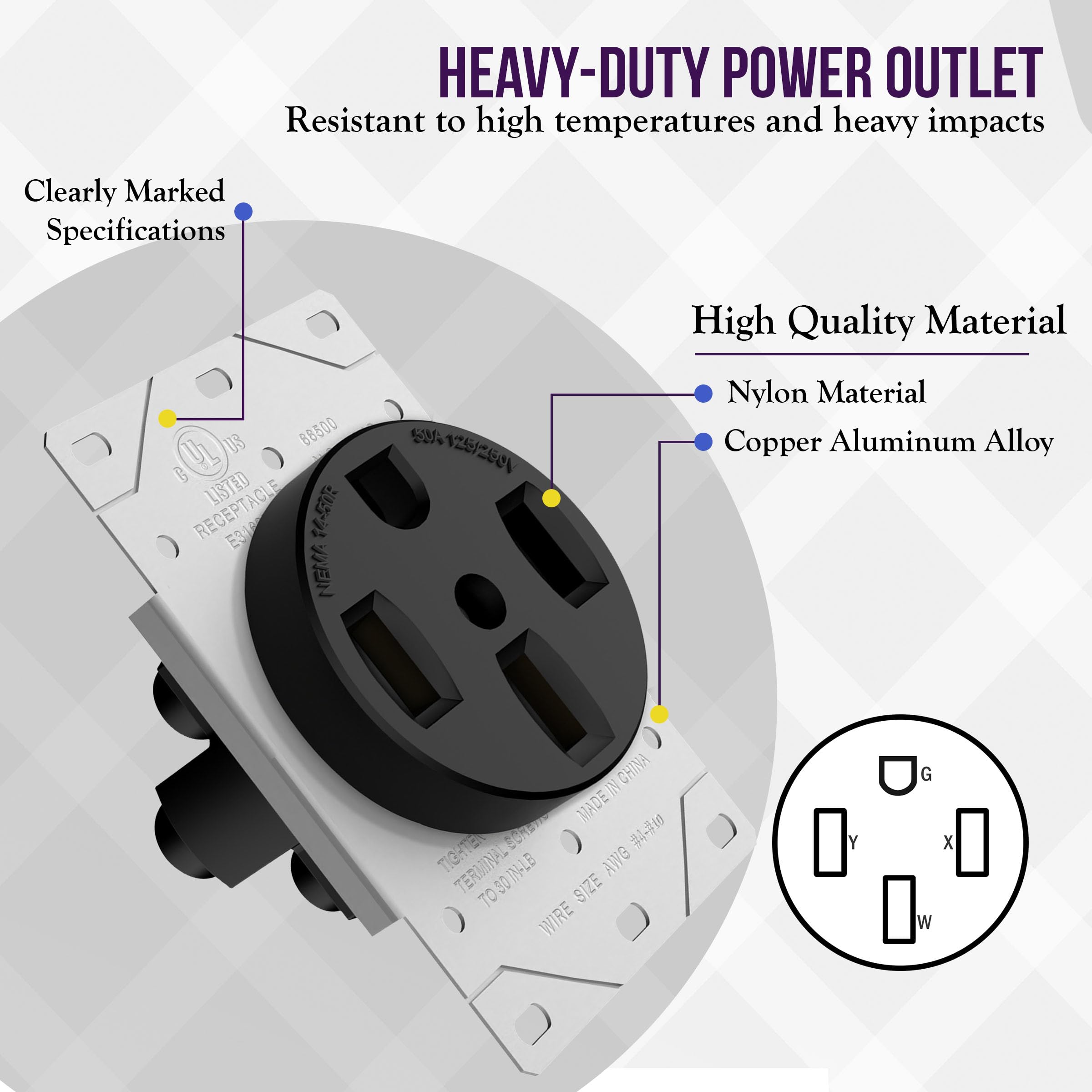

Specifications: 50 Amp, 250 Volt, UL Listed, Environmental UL94 Flammability, V2 Rating, Industrial Grade, Straight Blade, Grounding, Zinc-Plated Steel Strap for corrosion resistance and a Black Outlet made of Heavy Duty Thermo-Plastic material

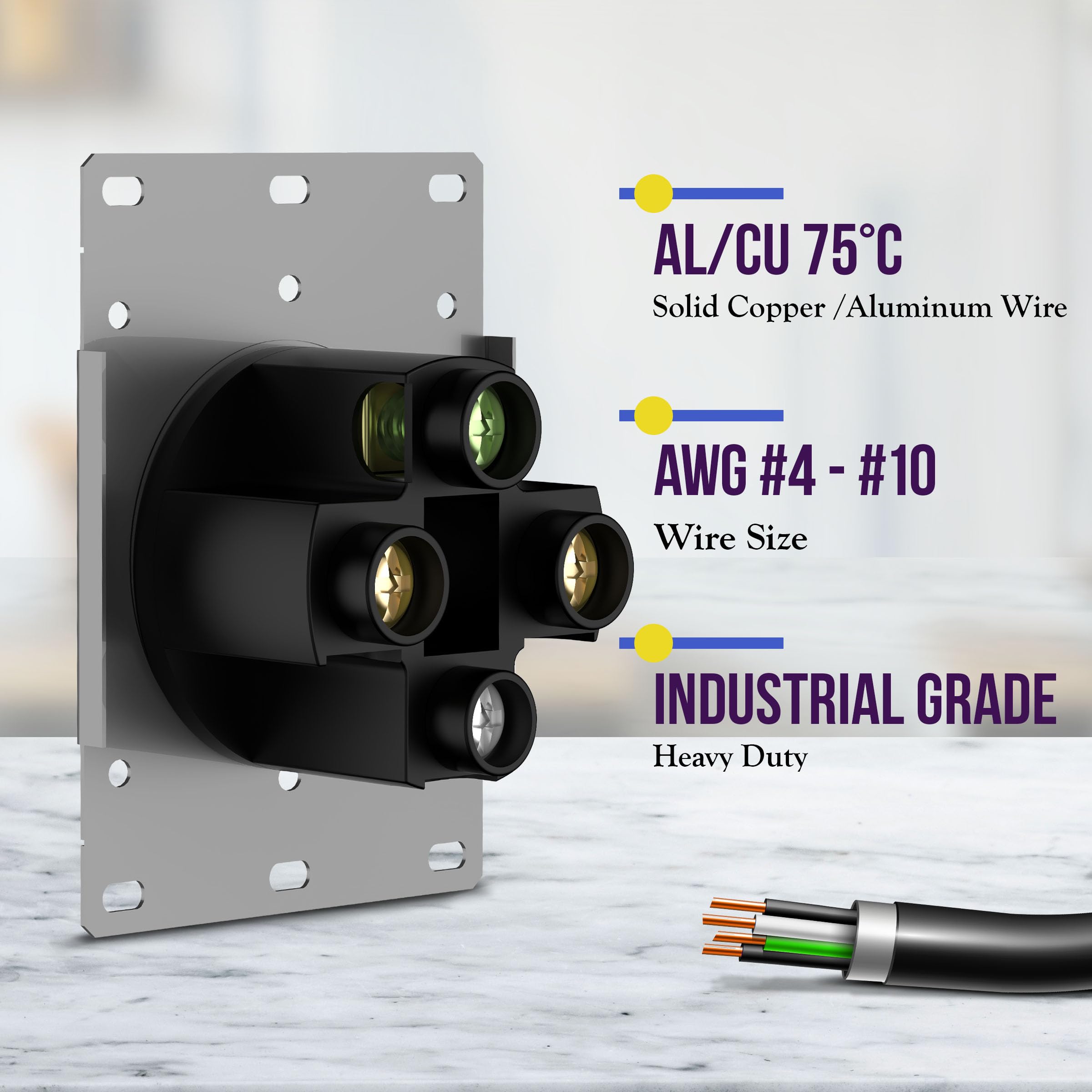

Wiring: Only accepts 10, 8, 6, and 4 gauge Copper Wires (AWG), Neutral wire is required and can be applicable to 250V applications and up to 50 Amps

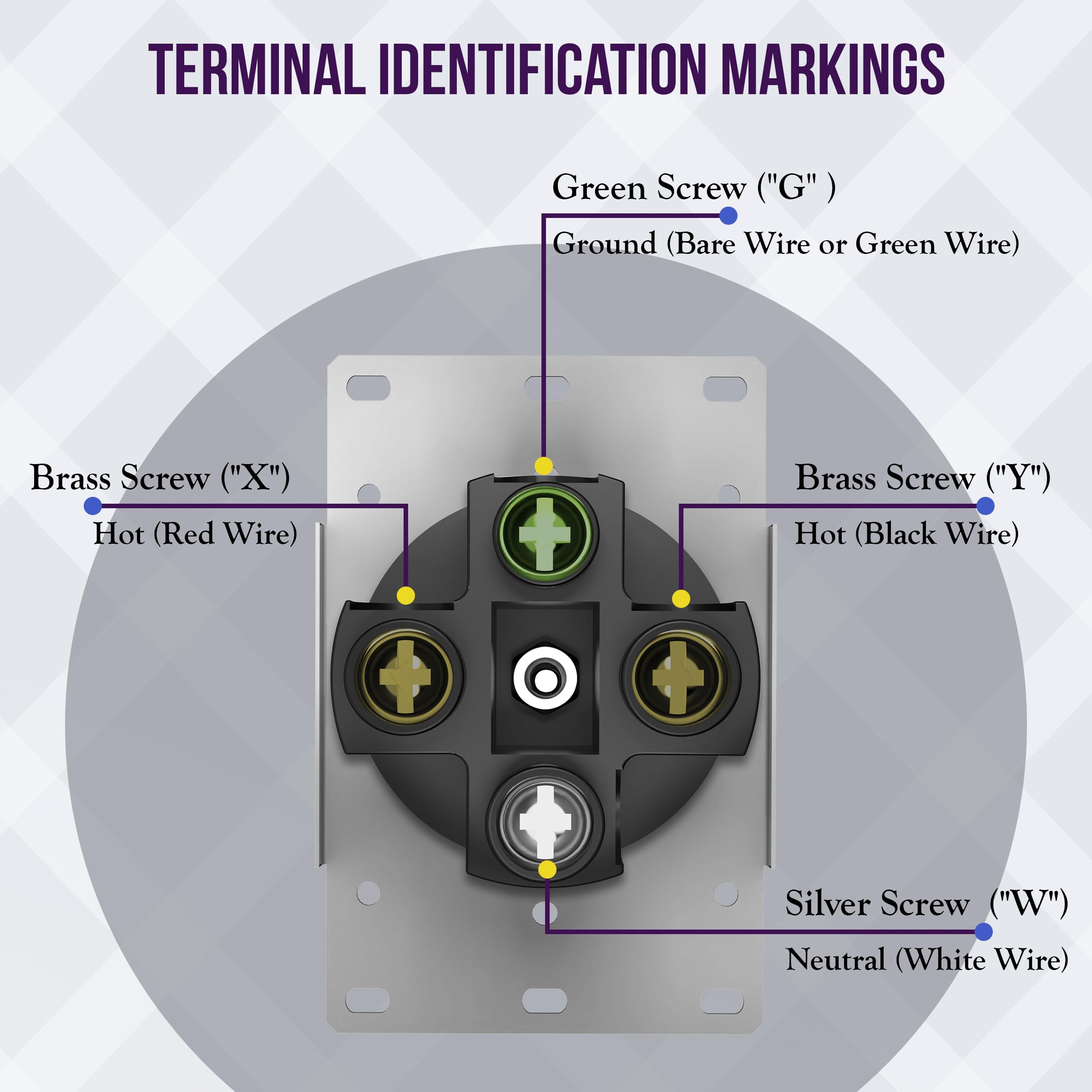

Easy installation: Fits in BOTH single and 2-Gang box styles, terminals marked for easy identification and fast wiring, all mounting hardware included. For wallplates for this 50 amp outlet, please select the option for "2 Gang - Wallplate, Midway" above. 1-year warranty
Product Specifications
Part Number: 66500
Item Weight: 6.4 ounces

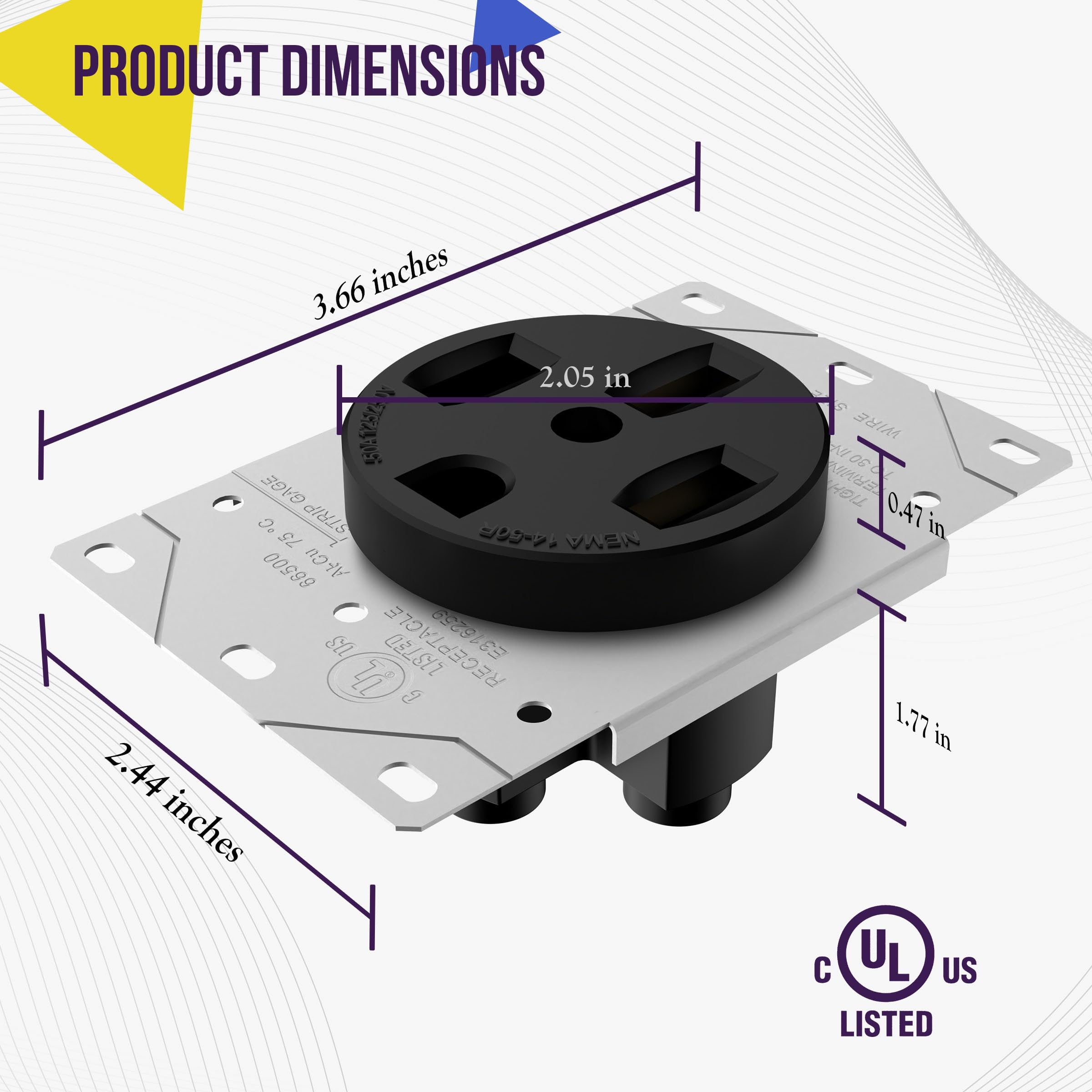

Product Dimensions: 2.42 x 2.12 x 3.74 inches
Country of Origin: China
Item model number: 66500-BK
Is Discontinued By Manufacturer: No
Size: 1 Pack
Style: 50A-Black
Finish: Brushed Metal
Pattern: Outlet
Shape: Round
Power Source: AC
Installation Method: Screw-In
Item Package Quantity: 1
Number Of Pieces: 1
Special Features: Heat Resistant, Impact Resistant, Corrosion Resistant, UL Listed
Usage: Commercial/Residential
Included Components: Receptacle, Screws, Installation Instructions
Batteries Included?: No
Batteries Required?: No
Warranty Description: ENERLITES warranties its products to be free of defects in materials and workmanship for a period of one (1) year. There are no obligations or liabilities on the part of our company for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or re-installation.
Voltage: 250 Volts
Amperage: 50 Amps
Connector Type: Plug-In
Specification Met: UL
UPC: 883951413330
Manufacturer: ENERLITES
Product Information
Product description
NEMA 14-50R Industrial-Grade Power Outlet
NEMA 14-30/50P Replacement Male Angle Plug
NEMA 14-50P to 6-50R EV Charger Adapter
ENERLITES flush mount receptacles are precision-manufactured using the finest materials and designed with special features to give them an attractive appearance and make them easy to install.
The NEMA 14-50P to 6-50R 240V compact 50 Amp 4 prong male to 50 Amp 3 prong female power cord adapter converts your existing 14-50P outlet to 6-50R to use for your home welding needs.
ENERLITES 50A receptacles are designed for quick wiring and easy installation. The 66500 outlet can be used in both 1-gang and 2-gang junction box setups.
Cohesive Aesthetic
For the best fit and color match, always pair with Enerlites
wall plates such as the 7772, 7792 metal wall plate, 8872 general wall plate, and more!
