FOTILE JQG7505 30” Under-Cabinet or Wall-Mount Range Hood | Dual DC-Motor | Slant Vent Design | Hands Free On and Off | Touchscreen with 4 Speed Level | Modern Kitchen Onyx Black Glass
Slant Vent Series – Our FOTILE range hood uses a 90° automatic open baffle plate that helps reduce the spread of cooking fumes or odors and quickly exhaust up to 6 sq. ft. of space for improved airflow.
POWERFUL AND QUIET OPERATION – The industry's first side draft range hood with dual DC motors, boasting maximum static pressure at 540Pa, and increasing the effective extraction rate by 30% (Compared to traditional range hood), providing better extraction while lowering noise level to 39dB, so you can still enjoy conversations with friends or family.

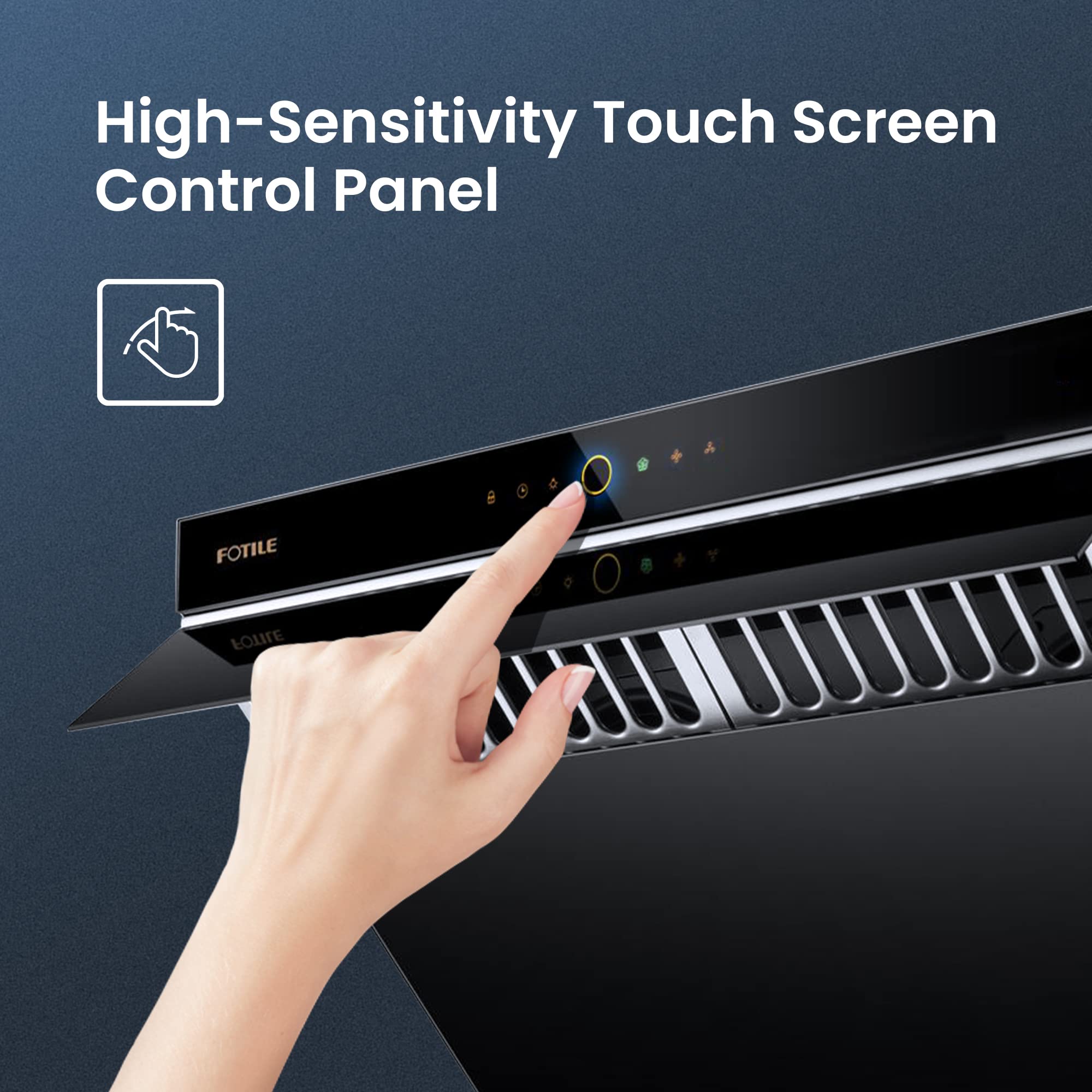

MOTION ACTIVATION TECHNOLOGY – Using infrared connectivity you can simply operate this kitchen range hood with a wave of your hand. This allows you to turn it off or on without smudging the surface. TOUCH SCREEN WITH ADJUSTABLE SPEEDS – This ducted range hood features 4 quick adjust airflow speeds, including a stir fry mode when held for 2 seconds, give you more control over your cooking needs.
IMPROVED GREASE AND OIL CAPTURE – We use dual centrifugal motor &impeller in this ducted range hood to help separate up to 95% of grease and fumes , 98% odor reduction from the surrounding air. The Grease Tray and Filter can also be removed easily for quick cleaning.
We offer professional installation services in over 50 major cities, such as San Francisco, Los Angeles, and New York City. Reach out today and see if we are in your area. BEST in the INDUSTRY WARRANTY SERVICES - With over 3,500 independent service providers network covering 50 states.
Product Specifications
Brand Name: FOTILE
Model Info: JQG7505
Item Weight: 58 pounds
Product Dimensions: 18.25 x 29.9 x 17.45 inches
Country of Origin: China
Item model number: JQG7505
Is Discontinued By Manufacturer: No
Annual Energy Consumption: 100 Kilowatt Hours
Noise: 39 dB
Installation Type: Wall Mount / Under the Cabinet
Part Number: JQG7505
Form Factor: side draft
Special Features: Motion Activation, Auto Fan Shut-Off, Noise Reduction, LED Lighting, Dual DC Motors
Burner type: Open
Color: Black
Control Console: Touch
Voltage: 120 Volts
Wattage: 210 watts
Fuel type: Electric
Airflow Displacement: 1000 Cubic Feet Per Minute
Cooling Vents: 2
Certification: HVI, ETL
Material Type: Stainless Steel
Included Components: User Manual, Warranty Card, Duct Kit, Filter, Oil Tray, Unit Bracket, JQG7505 Range Hood
Batteries Included?: No
Batteries Required?: No
Product Information
Product description
Wave at Future Ventilation Power
Unique Side-draft Wall-Mounted Structure
As the leader of side-draft range hoods, FOTILE spent 3 years of consumer research deeply understanding the pain of not having a properly working range hood. By launching the V Series Side Draft Range Hood, FOTILE solved the fundamental problem of extraction. It perfectly covers 4 burners or more with powerful smoke and odor extraction.
Under the Cabinet Installation:
A: Is there already an existing duct pipe? We recommend using a 6” diameter duct pipe.
B: There must be an available power outlet.
C: The width between the side cabinets must be at least 29.9”, not to exceed 36”.
D: The distance from the cooktop to the top of the range hood must be at least 29.9”, not to exceed 32.5”
E. The distance from the top of the cooktop’s control panel (if applicable) to the bottom of the cabinet covering the exhaust duct pipe must be greater than 18”
F. The decorative plate is available in two different sizes to fit your needs. If the distance (G) from the cooktop to the bottom of the cabinet covering the exhaust duct pipe is:
a. 33.5”, we recommend purchasing a 4” decorative plate
b. Between 33.5” to 36.5”, we recommend purchasing a 4” or 6” decorative plate
c. Between 36.5” to 38.5”, we recommend purchasing a 6” decorative plate
Wall-Mount Installation:
A: Is there already an existing duct pipe? We recommend using a 6” diameter duct pipe.
B: There must be an available power outlet.
C: The width between the side cabinets must be at least 29.9”, not to exceed 36”.
D: The distance from the cooktop to the top of the range hood must be at least 29.9”, not to exceed 32.5”
E. If the distance from the floor to the ceiling is:
a. 8ft, we recommend purchasing an adjustable decorative cover for 8ft ceiling.
b. 9ft, we recommend purchasing an adjustable decorative cover for 8ft ceiling and an extended cover designed for 9ft ceiling. Combine them, they will be suitable for the 9ft ceiling
c. 10ft, we recommend purchasing an adjustable decorative cover for an 8ft ceiling and an extended cover designed for a 10ft ceiling. Combine them, they will be suitable for the 10ft ceiling
First Side-Draft Range Hood With Super Powerful DC Motor
Max Static Pressure 540Pa - Exhaust up to 30% more cooking fumes.
Lowest noise level < 39dB - Super quiet in your kitchen
Powerful ventilation regardless of installation complexity

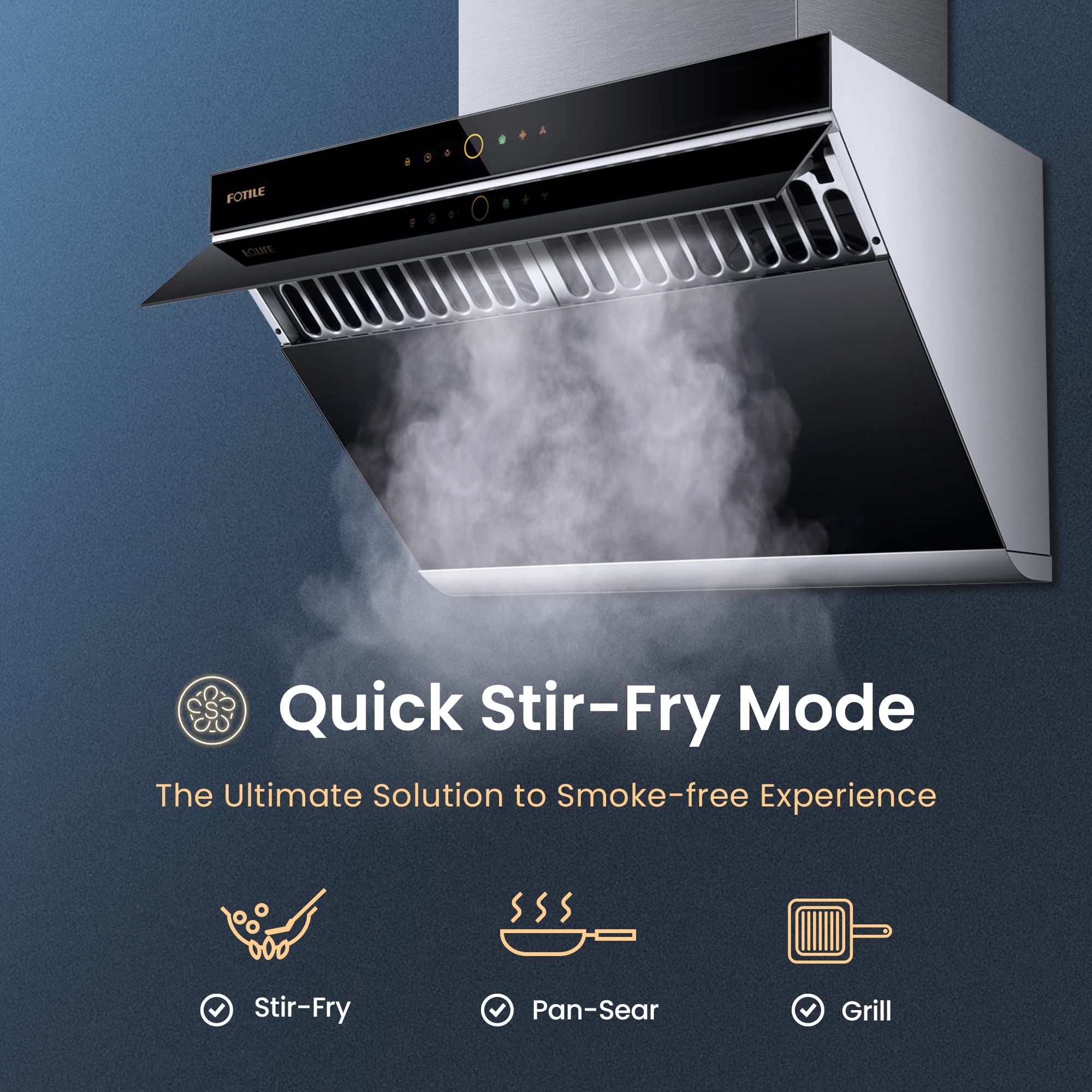

Quick Stir Fry Mode
The Ultimate Weapon to Get Rid of Cooking Fumes!
Simply press 3rd Speed for 2 secs to turn on this SUPER SPEED MODE.

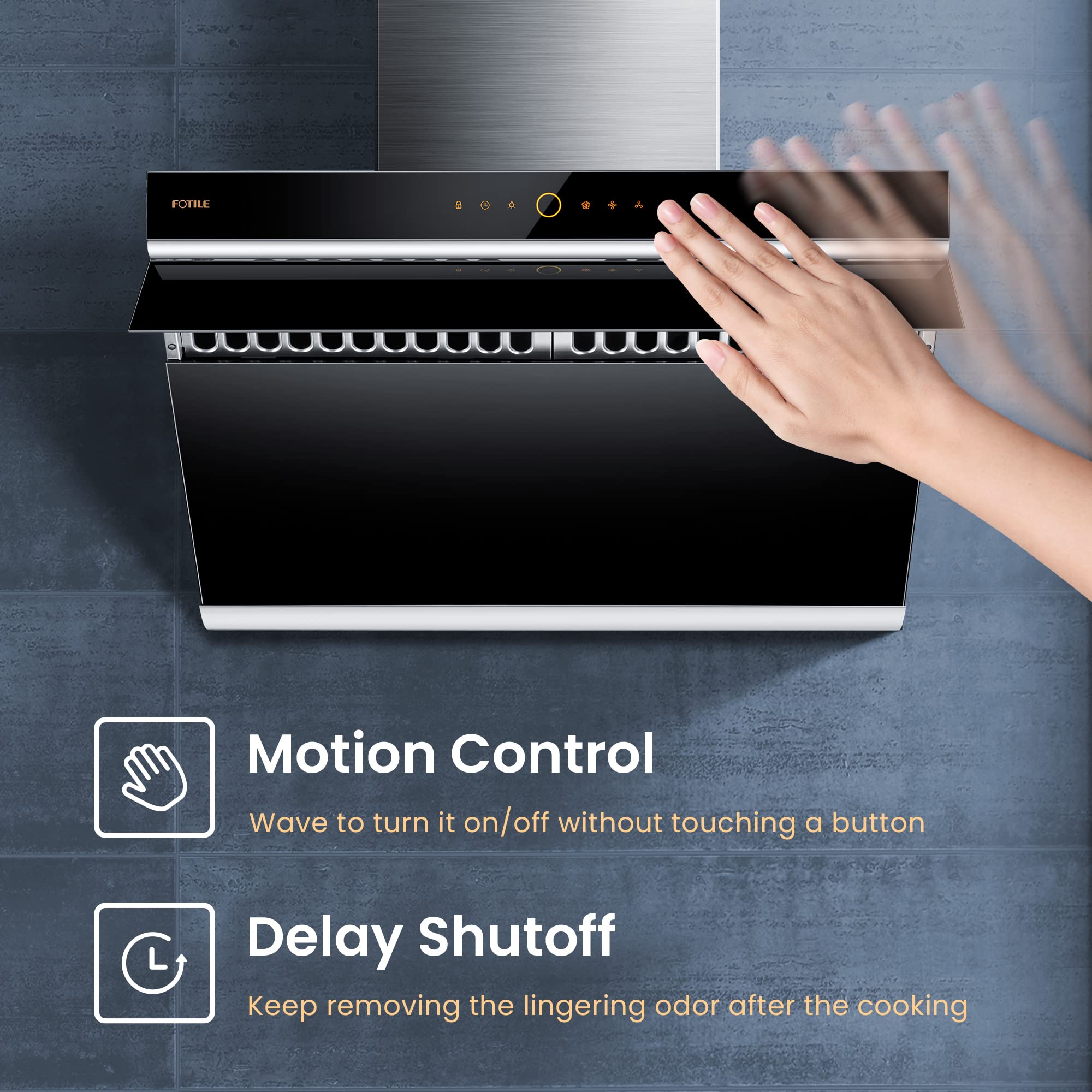

Hand-Free Operation
Simply Wave to Turn it ON / OFF
Fume Baffle Plate Opens
LED Lights are On
Powerful Ventilation Starts
Excellent Cooking Fume Processing Capability
95% Oil Filtration Rate
97% Odor Reduction Rate
Dual DC Motor: Two impellers working in tandem create turbo centrifugal power for strong, fast suction from a durable metal impeller. The dual centrifugal fan absorbs cooking fumes faster and discharges quicker.
6 Square Feet Coverage
90° AUTOMATIC FUME BAFFLE PLATE: Opens automatically when turned on and uses two unique functions that control ventilation to keep cooking fume from spreading.
30" WIDE FUME INLET MAKES EVEN EXTRACTION: The oil filter spans evenly from left to right covering all burners uniformly allowing you to maximize your kitchen experience.

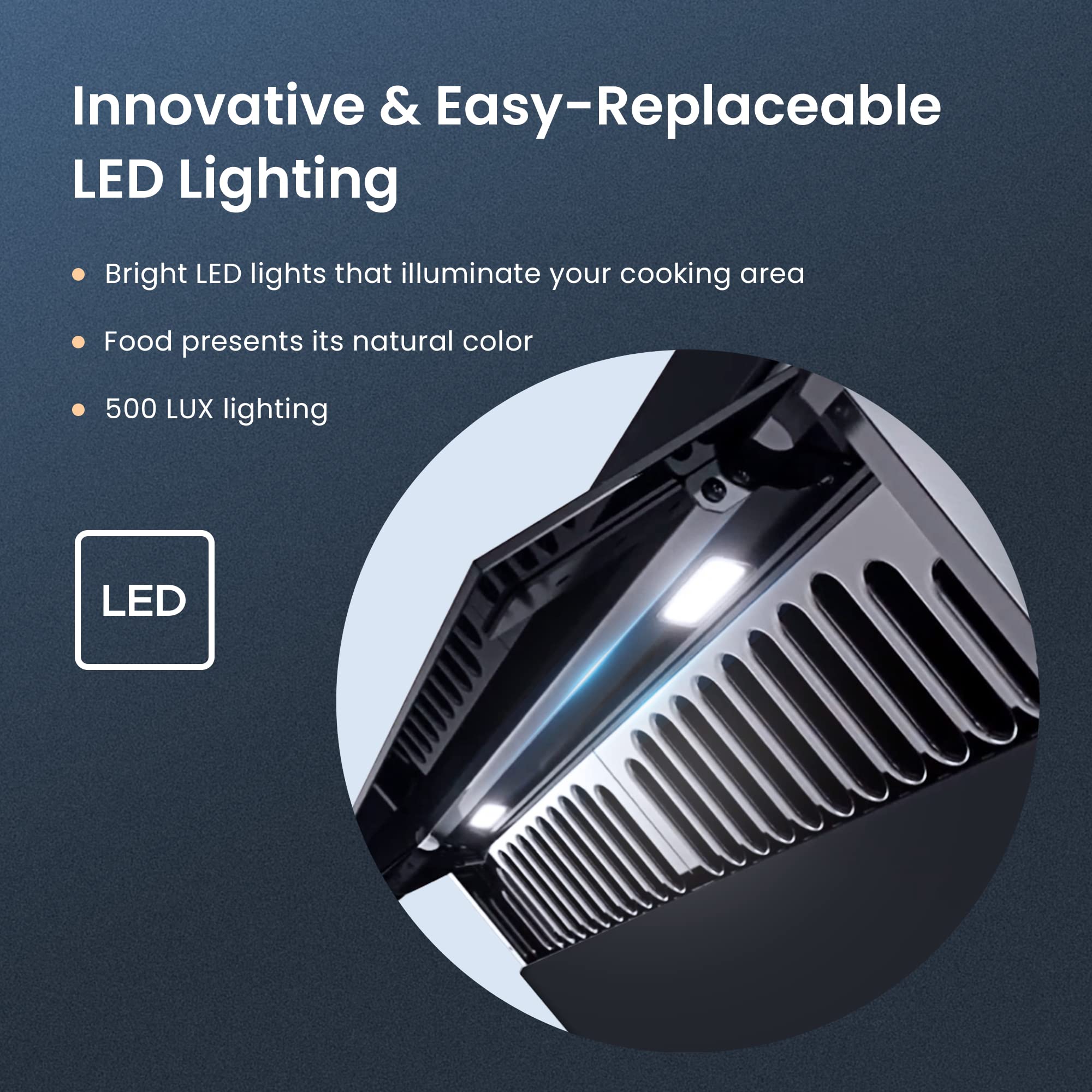

POWERFUL LIGHT: With a brightness of up to 500 lux covering 6 sf cooking area, you can clearly see the food you are cooking.
Addition Fetures
SCREEN LOCK FUNCTION: Press the lock button for two seconds and the screen will be locked automatically so you can easily clean it.
TIME DELAY FUNCTION: The JQG7505 has an auto delay Off function. When the range hood senses residual smoke fumes in the kitchen, the unit will stay on to vent the residual smoke out and then turn off when finished.

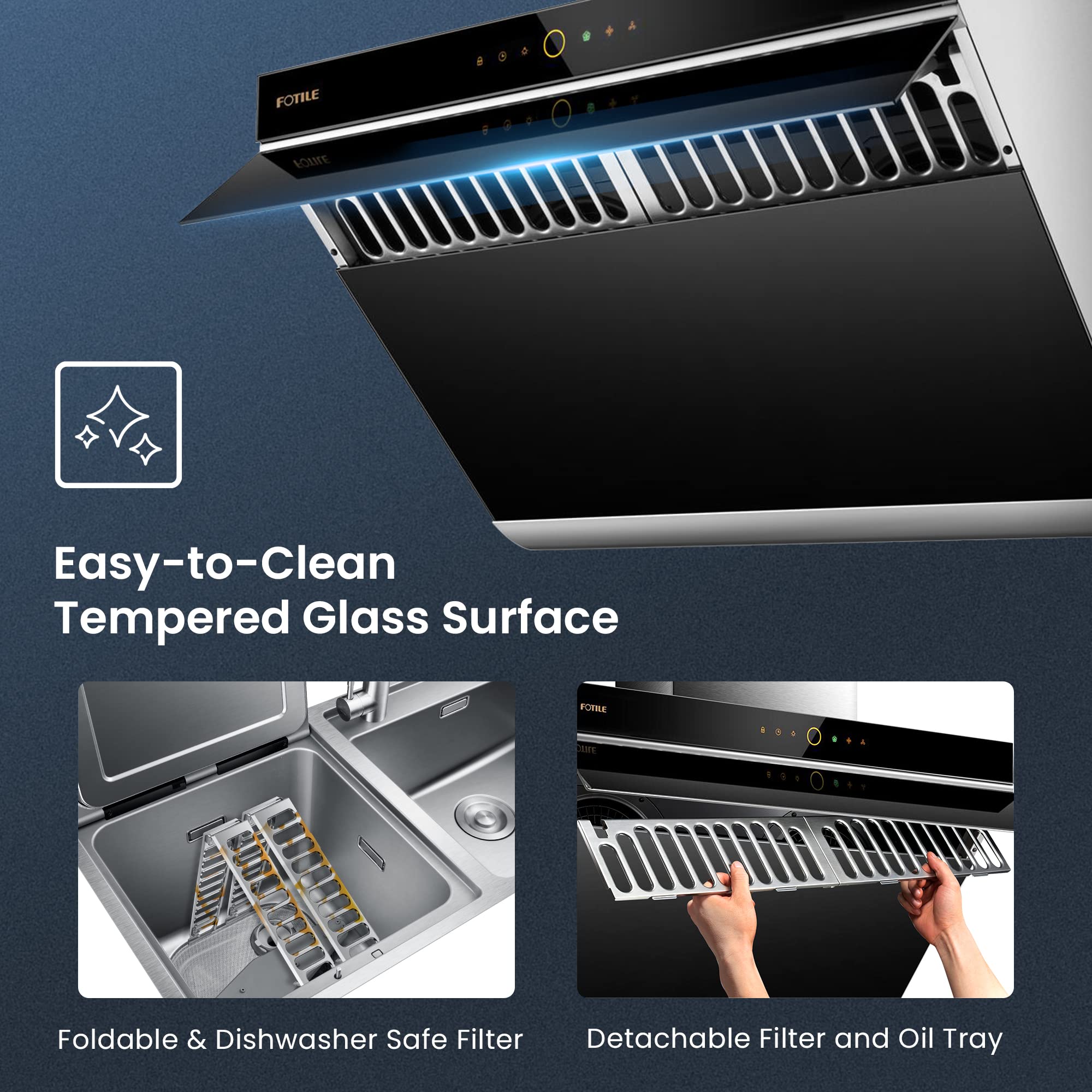

FOLDING OIL FILTER and LARGE GREASE TRAY: Oil filter is fold-able and removable so it can be easily cleaned. Over-sized oil cup design features a larger accommodating space that requires cleaning less frequently.
HASSLE-FREE Maintenance / Installation
EASY TO MAINTAIN: Special impeller design in this range hood achieves 92% separation of grease and fumes. All the grease will drip into our Large Grease Tray. Detachable Oil Filer is smooth and dishwasher safe. They are easy to remove, too.
HASSLE-FREE INSTALLATION: We offer professional installation services (additional charge) in major cities, such as Bay Area, Los Angeles, New York City and more. Simply reach us and see if we serve in your area.
BEST-IN-INDUSTRY AFTER-SALES SERVICES
BEST-IN-INDUSTRY AFTER-SALES SERVICES: We cover labor and parts for the first two years, PLUS parts for the next three years. Limited lifetime service for the motor. PLUS, we have over 3,500 independent service providers network covering 50 states.
