12plus2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable PCIe 4.0 x16 Slot
Product Specifications
RAM: DDR4
Wireless Type: 802.11ax
Memory Clock Speed: 2133
Platform: Windows

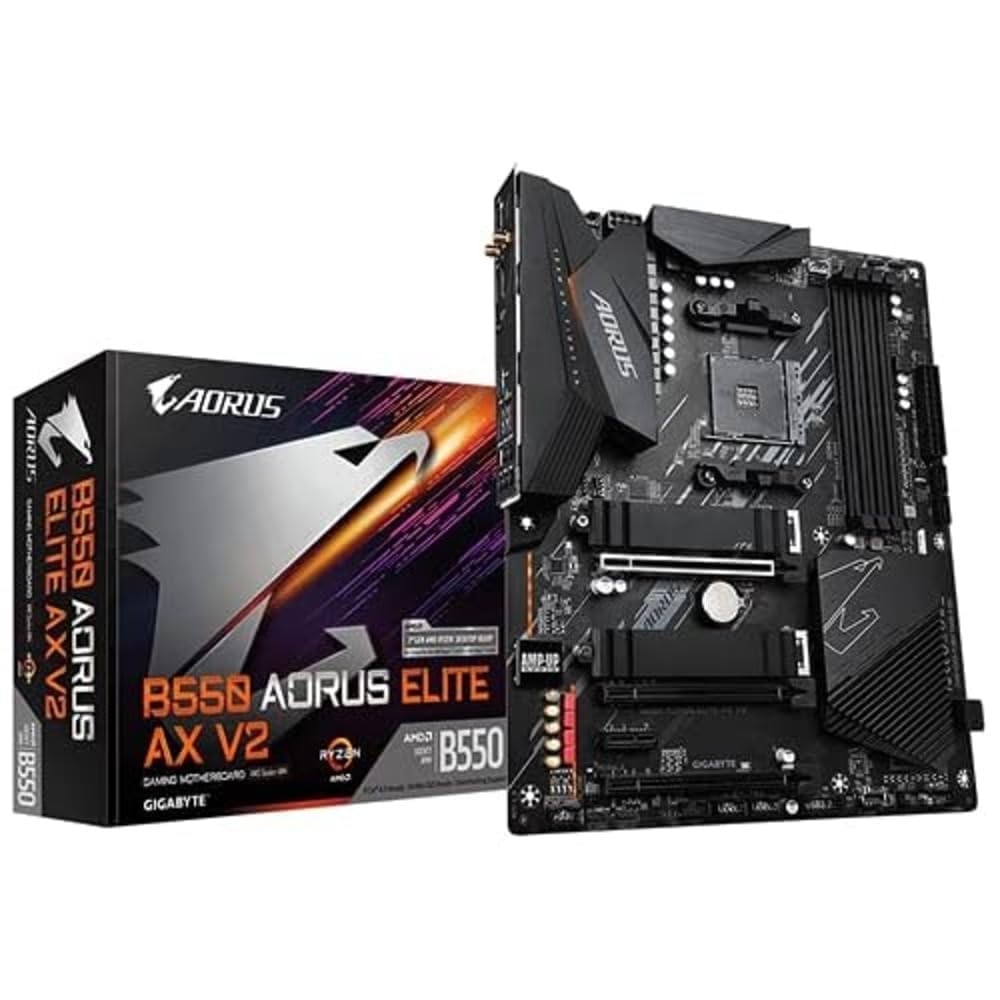

Model Name: B550 AORUS ELITE AX V2
Memory Storage Capacity: 128 GB
RAM Memory Maximum Size: 128 GB
Main Power Connector Type: 24-Pin
Graphics Card Interface: PCI Express
Memory Slots Available: 4
Product Dimensions: 10.62 x 3.14 x 13.18 inches
S/PDIF Connector Type: Optical
System Bus Standard Supported: SATA 3
Total SATA Ports: 4
Number of USB 2 Ports: 2
Total Ethernet Ports: 1
Total HDMI Ports: 1
Total PCI E- Ports: 2
Manufacturer: GIGABYTE
UPC: 889523023969
Item model number: B550
Item Weight: 3.59 pounds
Item Dimensions LxWxH: 10.62 x 3.14 x 13.18 inches
ASIN: B08KGVH7YC
Country of Origin: China
Date First Available: September 30, 2020
Product Information

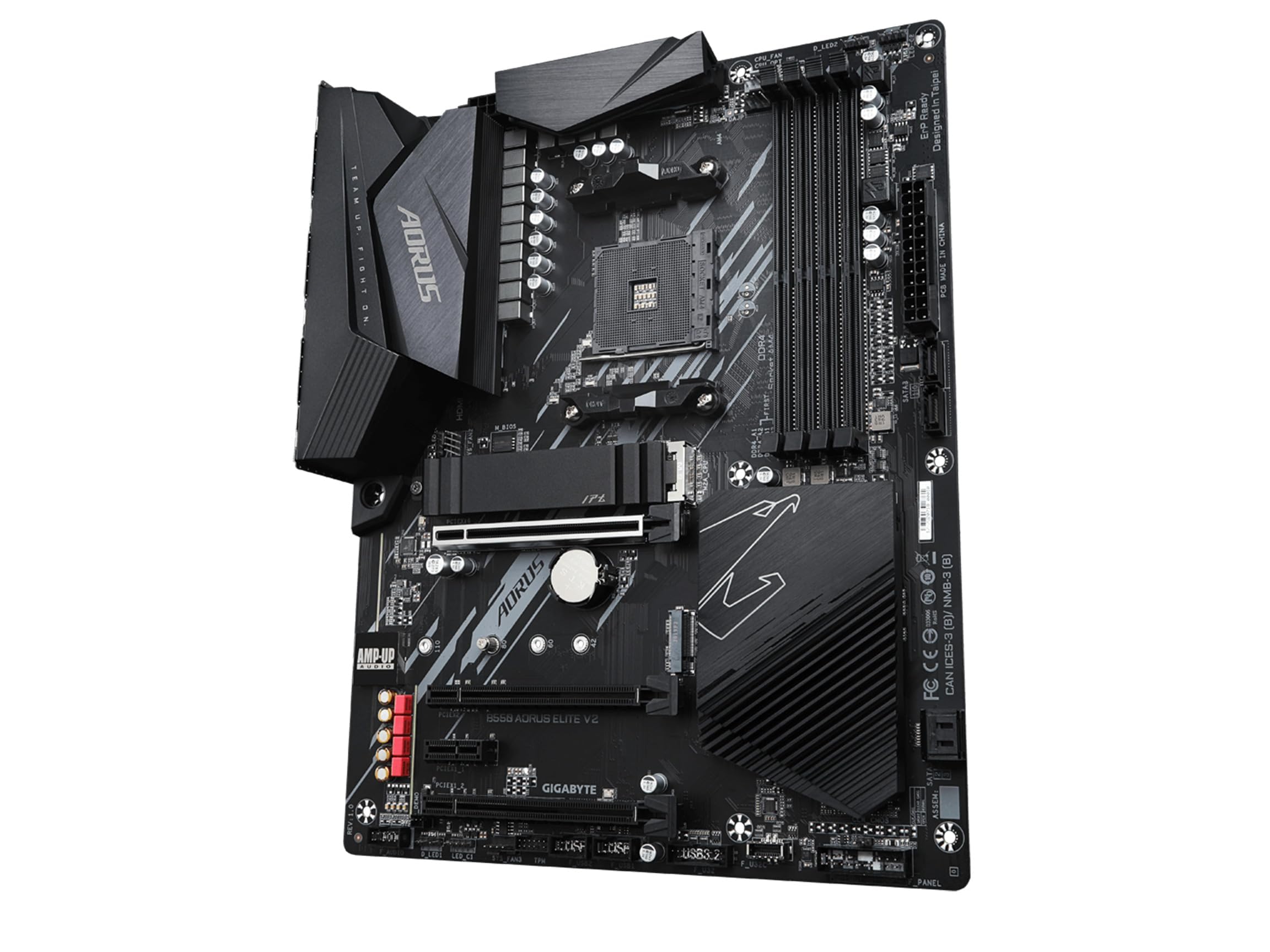

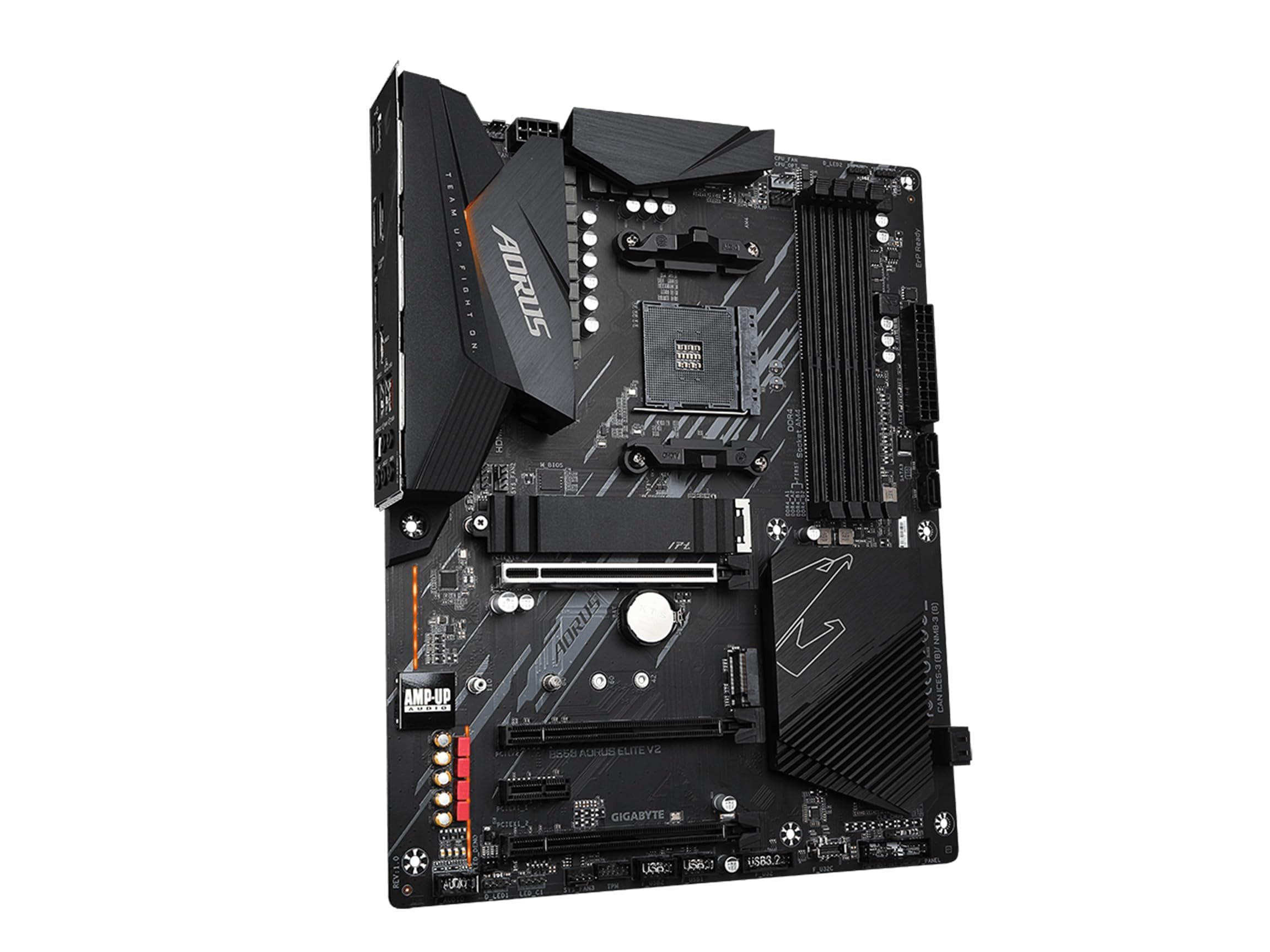

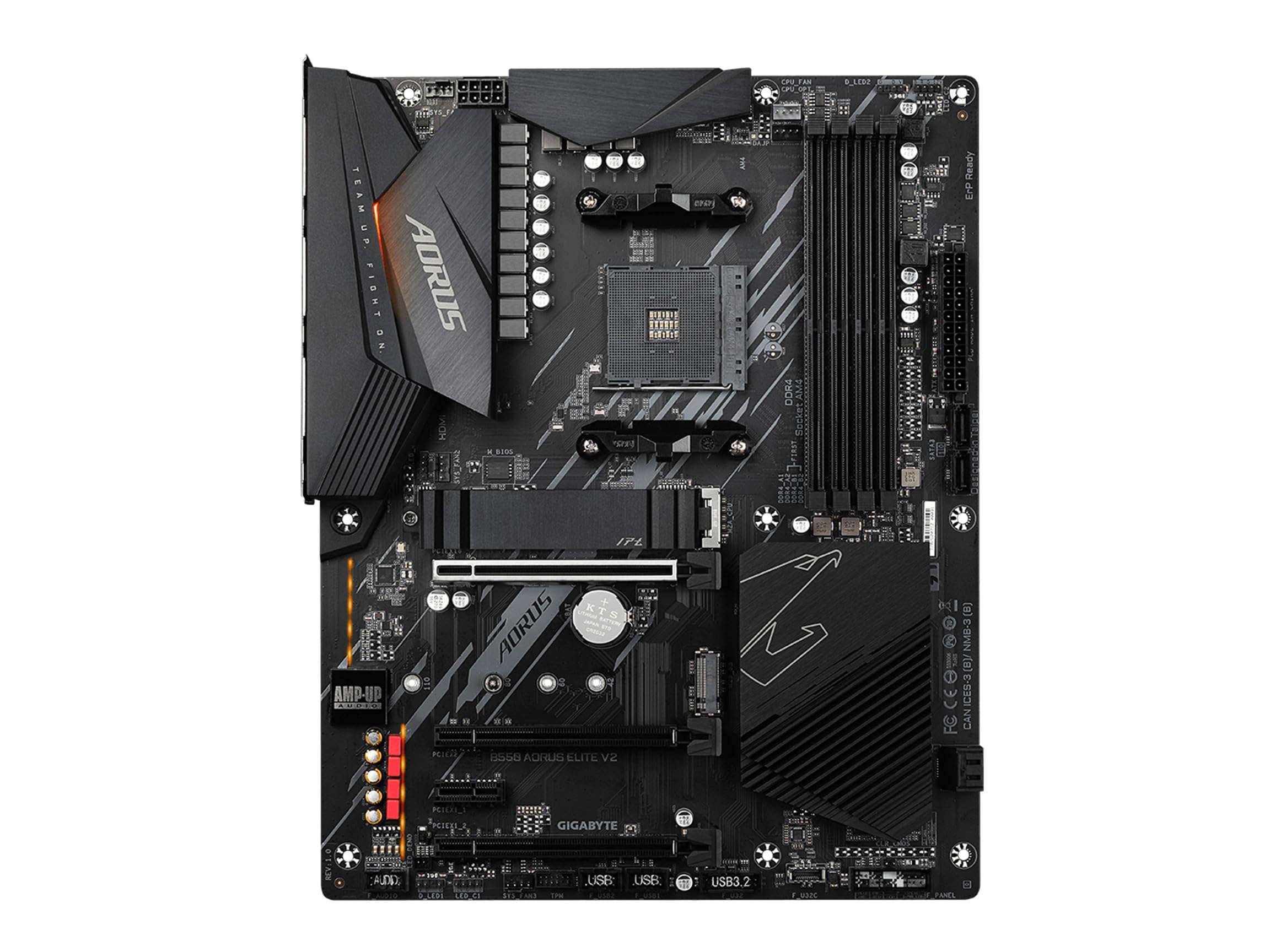

Supports 3rd Gen AMD Ryzen Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12plus2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation.
From the manufacturer
Motherboard BIOS update for AMD Ryzen 5000 series processors
Motherboard BIOS update for AMD Ryzen 5000 series processors
From GIGABYTE’s website, download the latest compressed BIOS update file that matches your motherboard model from its product page.
Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system.

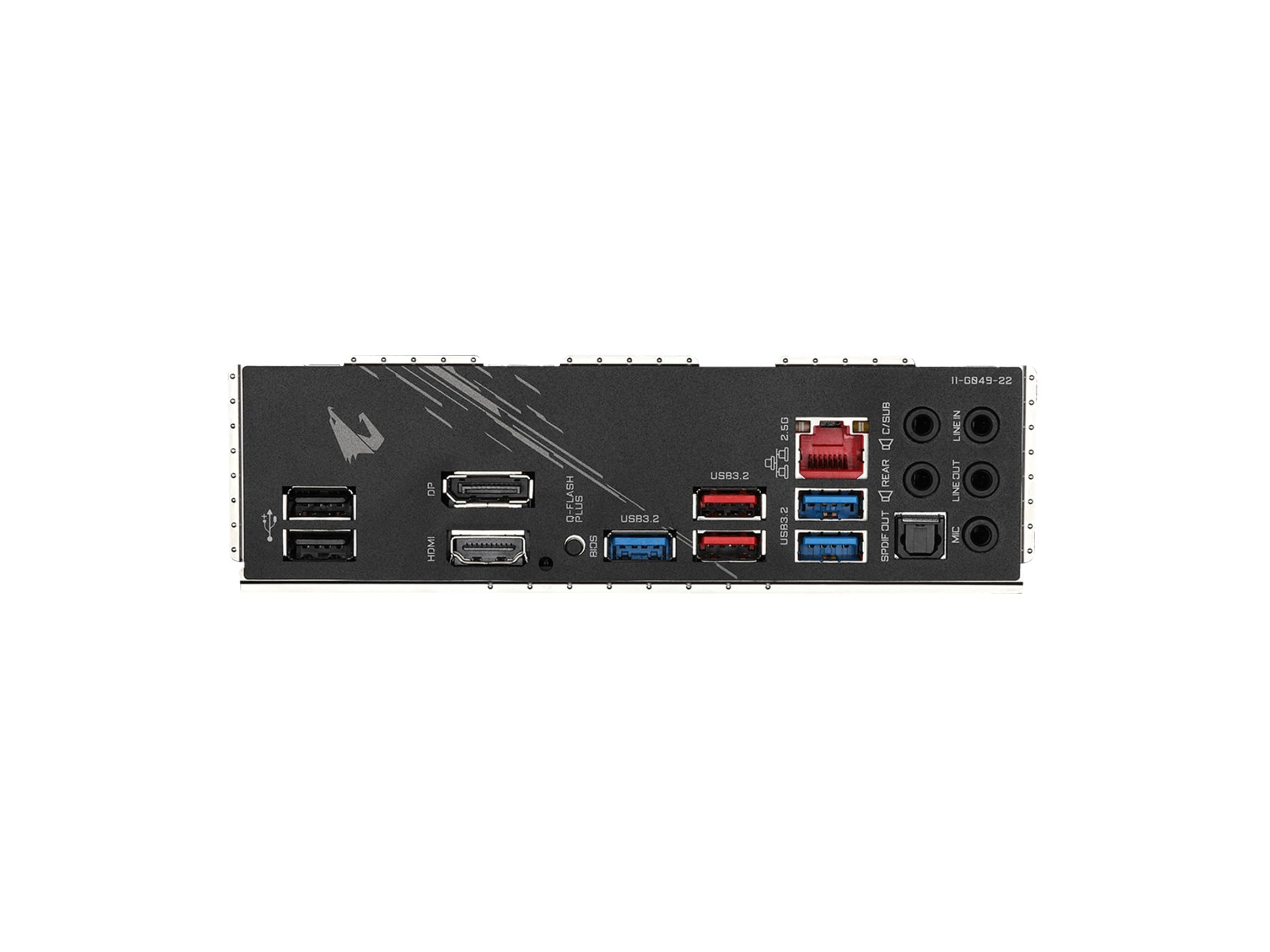

Insert the USB flash drive into the white USB port or BIOS Q Flash port on the back panel of your motherboard (USB port may not be labelled on all models, checking the user manual is recommended)
Connect the power cables to the CPU 8 Pin power connector (connect either one if there are two) and mainboard 24 Pin power connector.
Press the Q-Flash Plus button (location may vary by model) and the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The QFLED and the Q-Flash Plus button on the rear panel will flash during the BIOS matching and flashing process. Wait for 2-3 minutes and the QFLED will stop flashing when the BIOS flashing is complete.
