✔ NOTE: This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN. This package is equipped with a Receiver box, IR cable, power adapter and user’s guide
✔ NETWORK DISTRIBUTION – Connect up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN isolating video/audio traffic from the rest of the network. Many-to-many configuration is also supported via VLAN setups. Each VLAN can only accommodate 1 transmitter (TX). *Note: Home routers are not recommended
✔ VIDEO RESOLUTIONS & AUDIO – Supports up to 4K @30Hz; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz, 4K @24/25/30Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. *Note: There’s a 200ms or less delay/latency due to data compression. Not recommended for real-time applications, such as gaming
✔ IR EXTENSION – Control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT6/7 cable
✔ SIMPLE INSTALLATION – No software is required. Surface mountable metal housing; Lightning/Surge/ESD protection; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
Product Specifications
Product Information
Product description
This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN
394FT HDMI EXTENSION –With a single CAT6/7 cable, you can easily extend HDMI audio/video signals for up to 394ft. Direct 1-to-1 connection, 1-to-many through Gigabit network switches. gofanco Extender Kit HD14Ext1xN ASIN B0B9QCQZ9L
VIDEO RESOLUTIONS & AUDIO – Supports up to 4K @30Hz; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz, 4K @24/25/30Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. Note: There’s a 200ms or less delay/latency due to data compression. Not recommended for real-time applications, such as gaming
IR EXTENSION – Control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT6/7 cable
SIMPLE INSTALLATION – No software is required. Surface mountable metal housing; Lightning/Surge/ESD protection; FCC, CE & RoHS compliant
Important Notes:
A good quality CAT cable is essential in delivering quality content. CAT6/7 is recommended over CAT5e
Use a straight-through (patch) Ethernet cable and NOT crossover
This package comes with one Receiver only
Point to Point (1 TX to 1 RX)
Extends HDMI signals up to 394ft via a CAT6/7 cable
This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN ASIN B0B9QCQZ9L
One to Many (1 TX to Many RX’s)
Extends/splits one HDMI source to multiple HDMI displays
This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN ASIN B0B9QCQZ9L
Additional Receivers (HD14Ext1xN-RX) sold separately

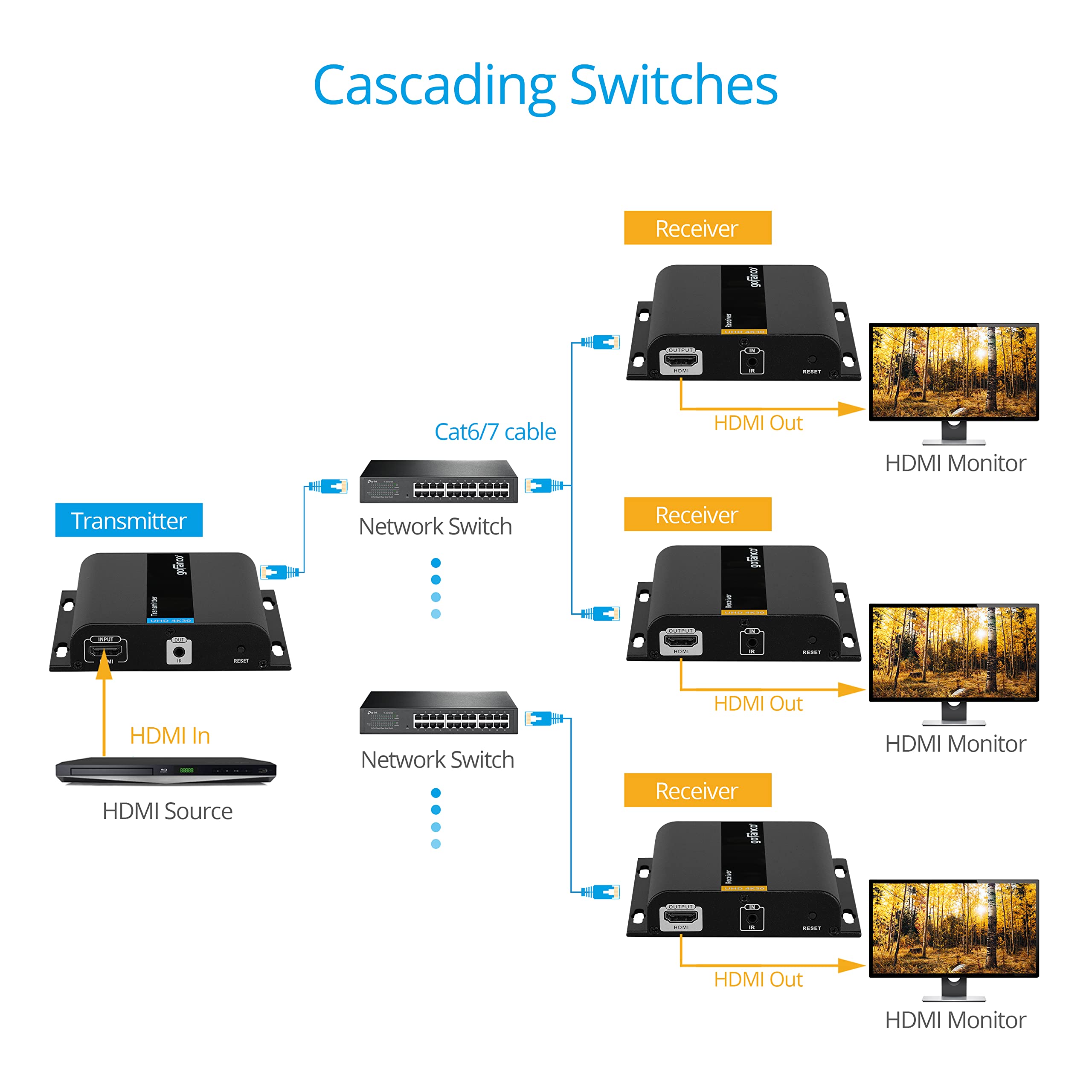

Cascading Switches
This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN ASIN B0B9QCQZ9L
Additional Receivers (HD14Ext1xN-RX) sold separately
NETWORK DISTRIBUTION
Note: This item is ONLY the RECEIVER (RX) unit for gofanco Extender Kit HD14Ext1xN ASIN B0B9QCQZ9L , Additional Receivers (HD14Ext1xN-RX) sold separately
Connect up to 30 receivers per transmitter
1-to-many configuration through
Unmanaged/Dedicated Gigabit switches
Smart Gigabit switches with VLAN isolating video/audio traffic from the rest of the network
Many-to-many configuration is also supported via VLAN setups. Each VLAN can only accommodate 1 transmitter (TX)
