Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
Installs to a single-width full-height PCIe express slot
Removable drive tray with tool-less drive installation for easy drive maintenance
Eagle-hook lock system keeps the drive secured in the enclosure
Product Specifications
Series: MB842MP-B
Item model number: MB842MP-B
Hardware Platform: PC
Item Weight: 8.2 ounces
Product Dimensions: 7.5 x 0.9 x 5.3 inches
Item Dimensions LxWxH: 7.5 x 0.9 x 5.3 inches
ASIN: B0BJ14JV7B
Date First Available: October 12, 2022
Compatible Devices: Personal Computer
UPC: 884826508670
Manufacturer: ICY DOCK
Product Information
Product description
Superior Performance
Innovative Removable M.2 NVMe SSD Enclosure
The ToughArmor MB842MP-B’s removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.

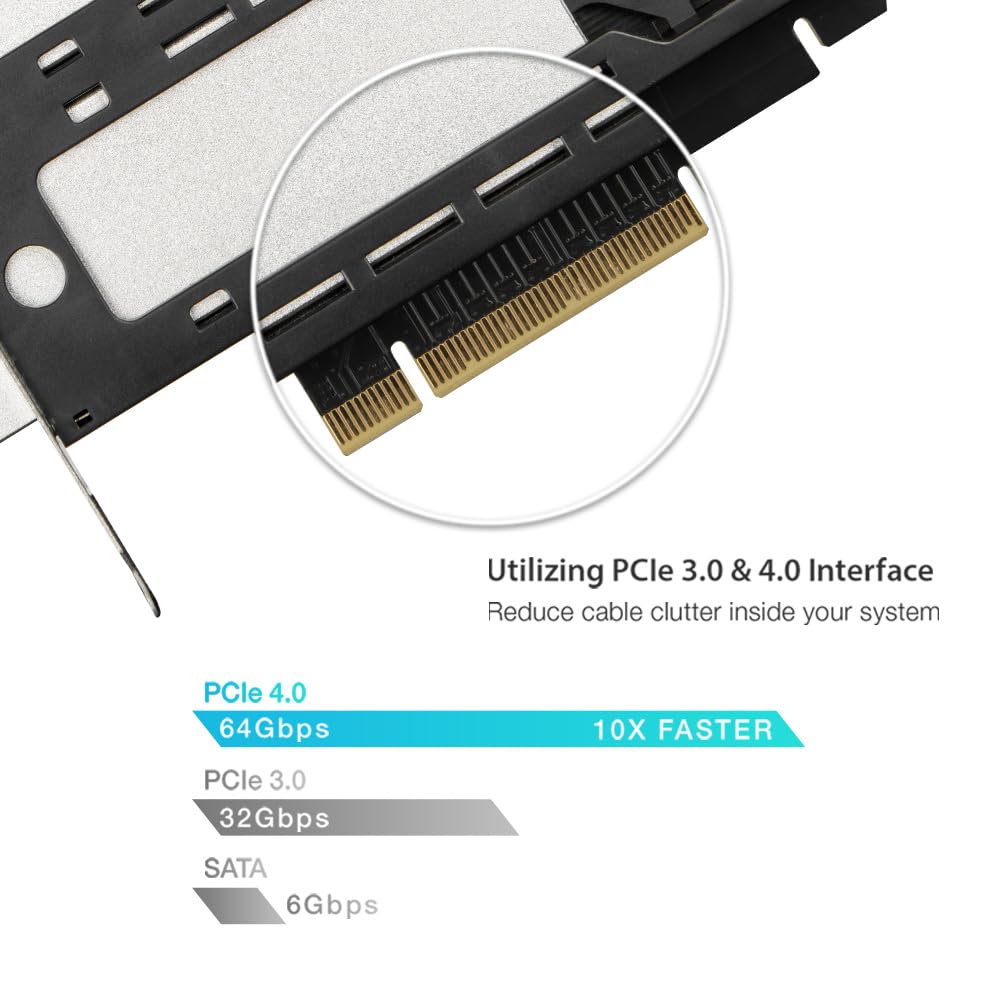

Superior PCIe 4.0 Performance
The blazing-fast 64Gbps transfer speed is 10x faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, or even image processing.

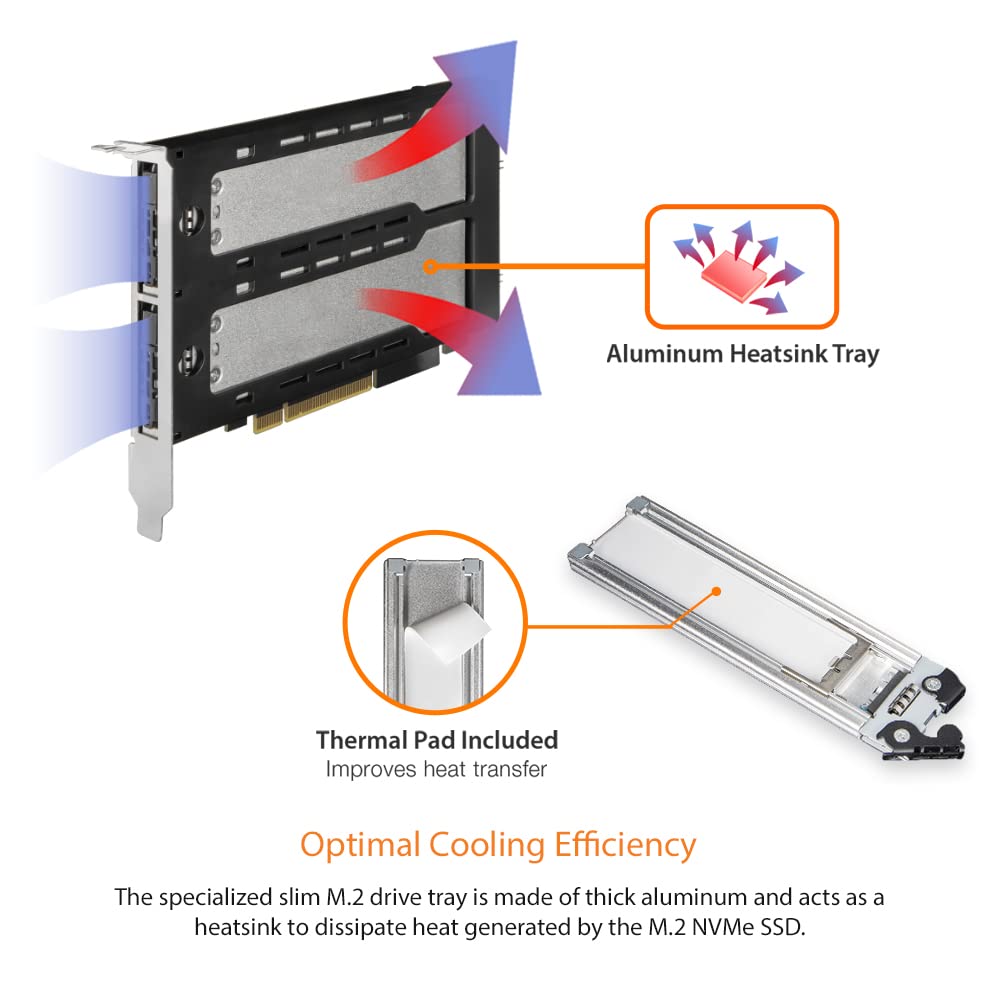

Optimal Cooling Efficiency
Heatsink Tray
The specialized slim M.2 drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.
Thermal Pad Included
The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminum surface, allowing airflow to move the heat away quickly.

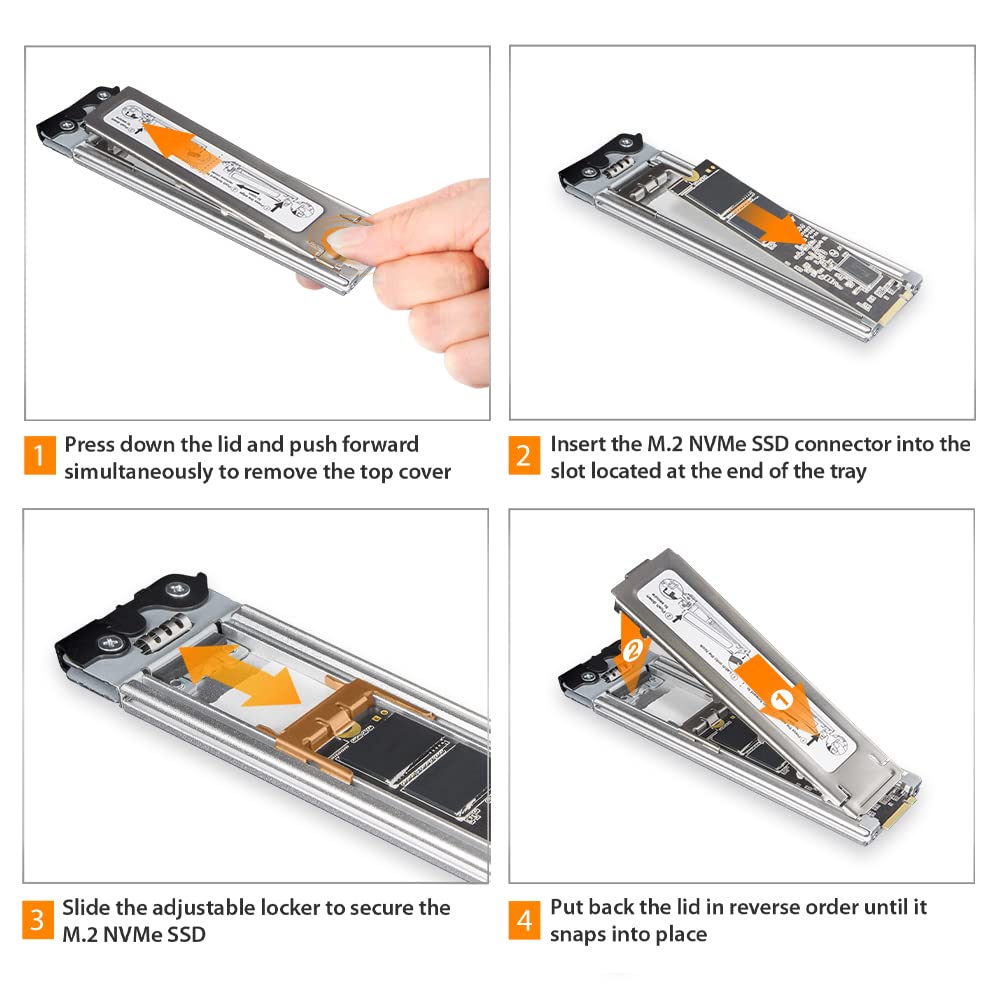

State of the Art Tool-less M.2 Drive Installation
Step 1
Press down the lid and push forward simultaneously to remove the top cover.
Step 2
Insert the M.2 NVMe SSD connector into the slot located at the end of the tray.
Step 3

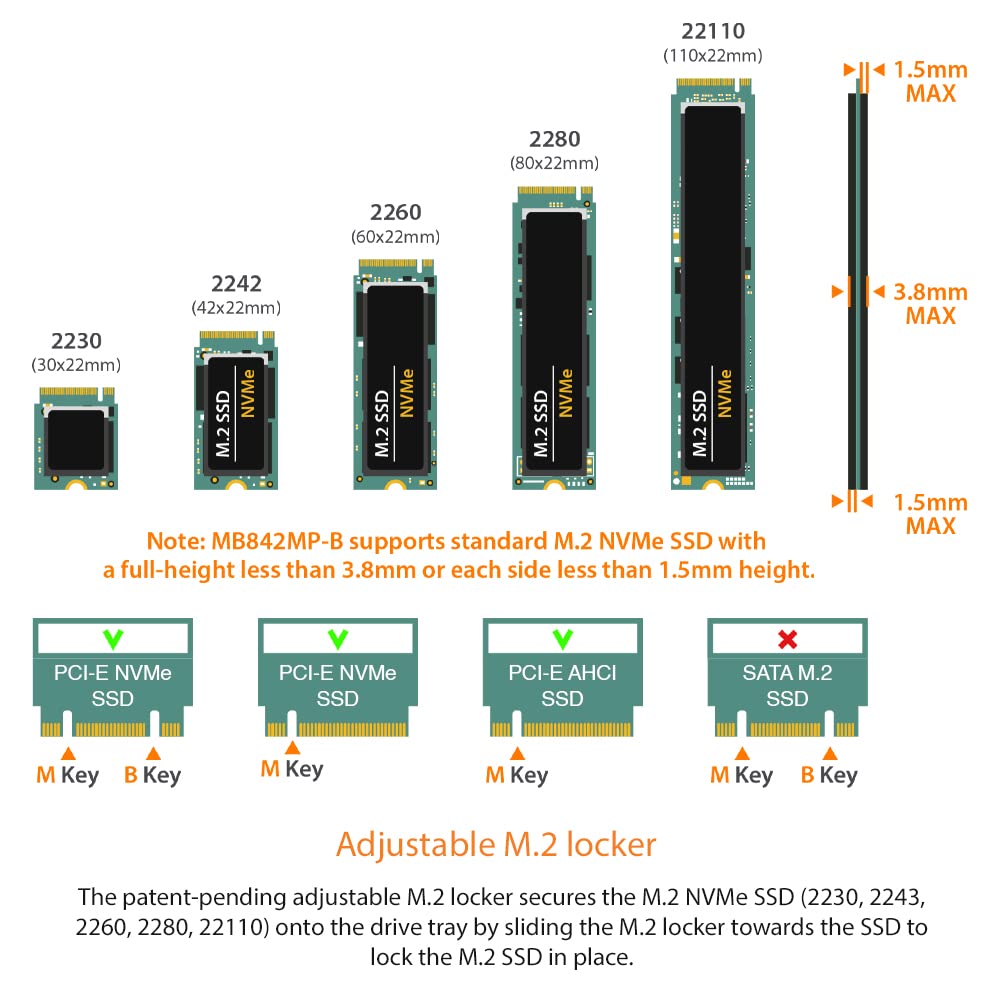

Slide the adjustable locker to secure the M.2 NVMe SSD.
Step 4
Put back the lid in reverse order until it snaps into place.
Key Features
EMI Grounding Technology
Our adjustable M.2 locker will clip into the SSD screw hole and ground the drive throughout the tray and the enclosure.
Metal Protection
The enclosure equipped with solid plastic, metal housing, and full metal drive trays that can be relied upon for many years.

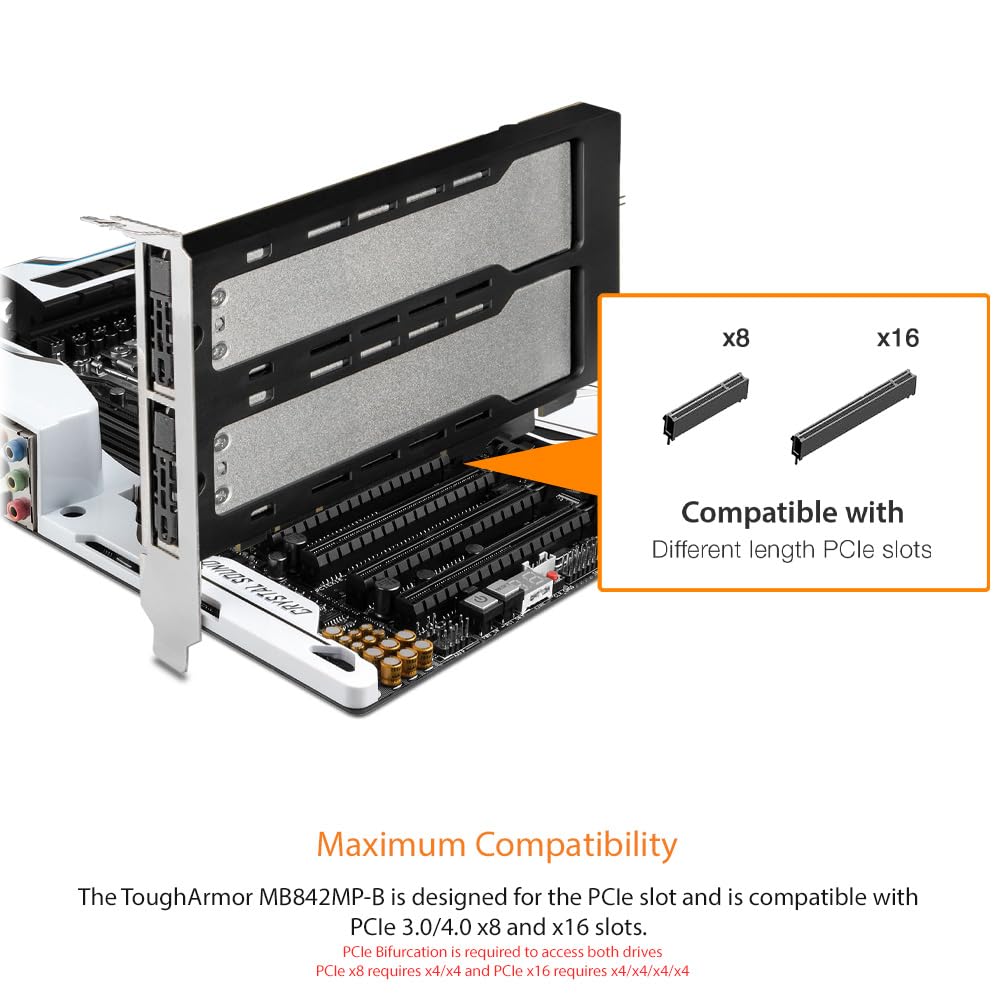

Maximum Compatibility
Compatible with PCIe 3.0/4.0 x8 and x16 slots.

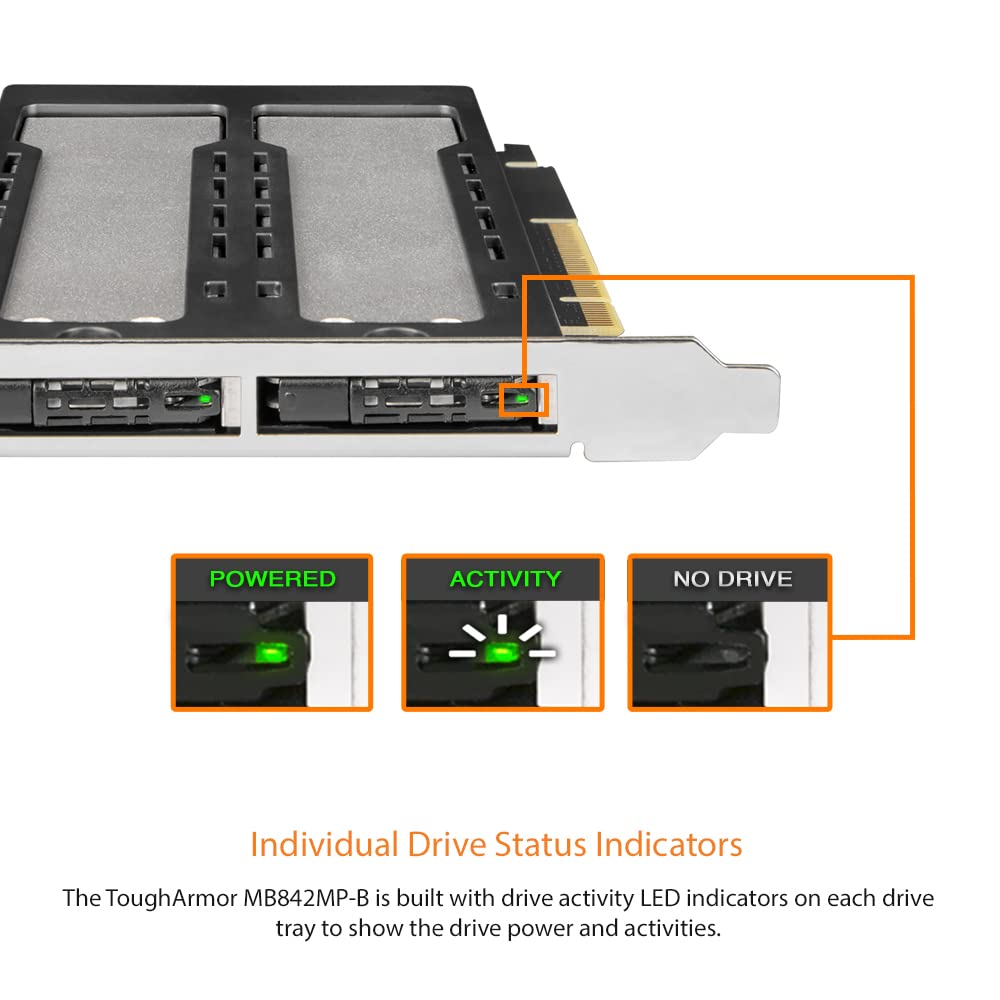

Individual Status Indicators
LED indicators on each drive tray to show the drive power and activities.

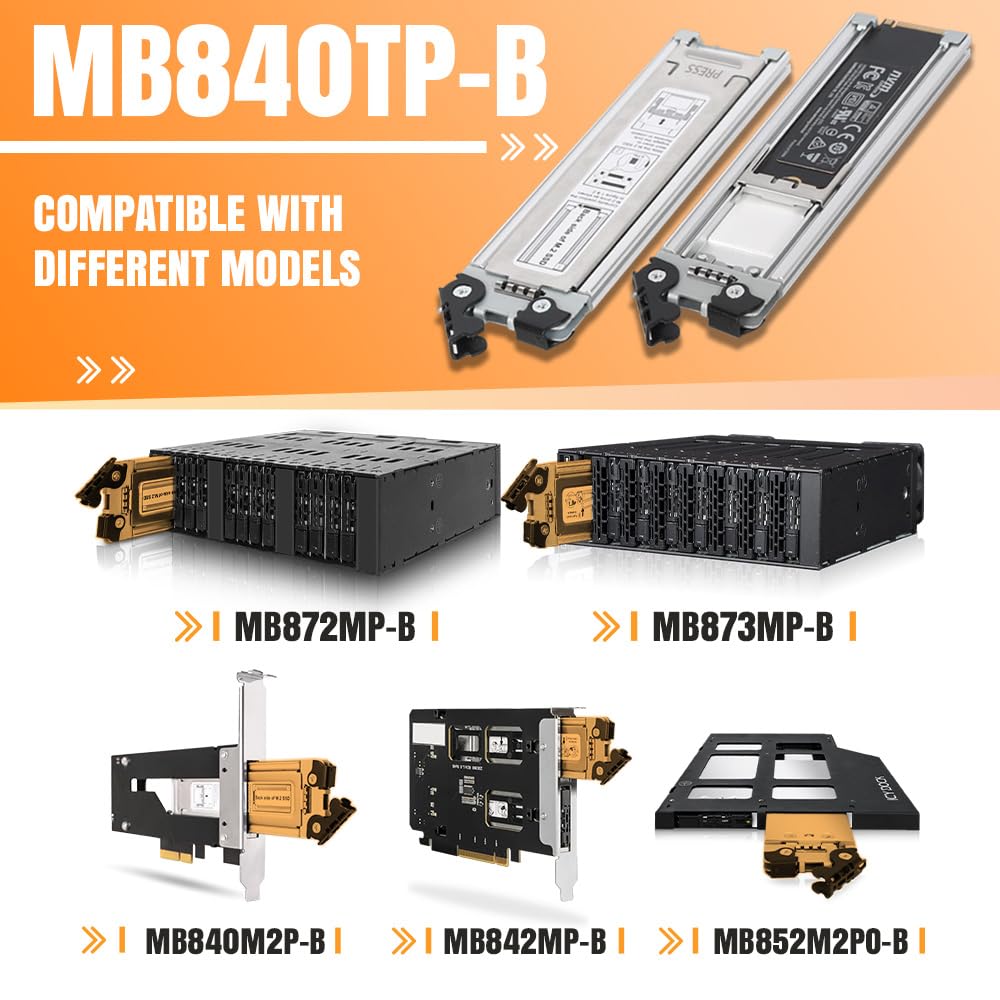

The specially designed MB840TP-B removable drive tray effortlessly enables seamless interchangeability across various models.
