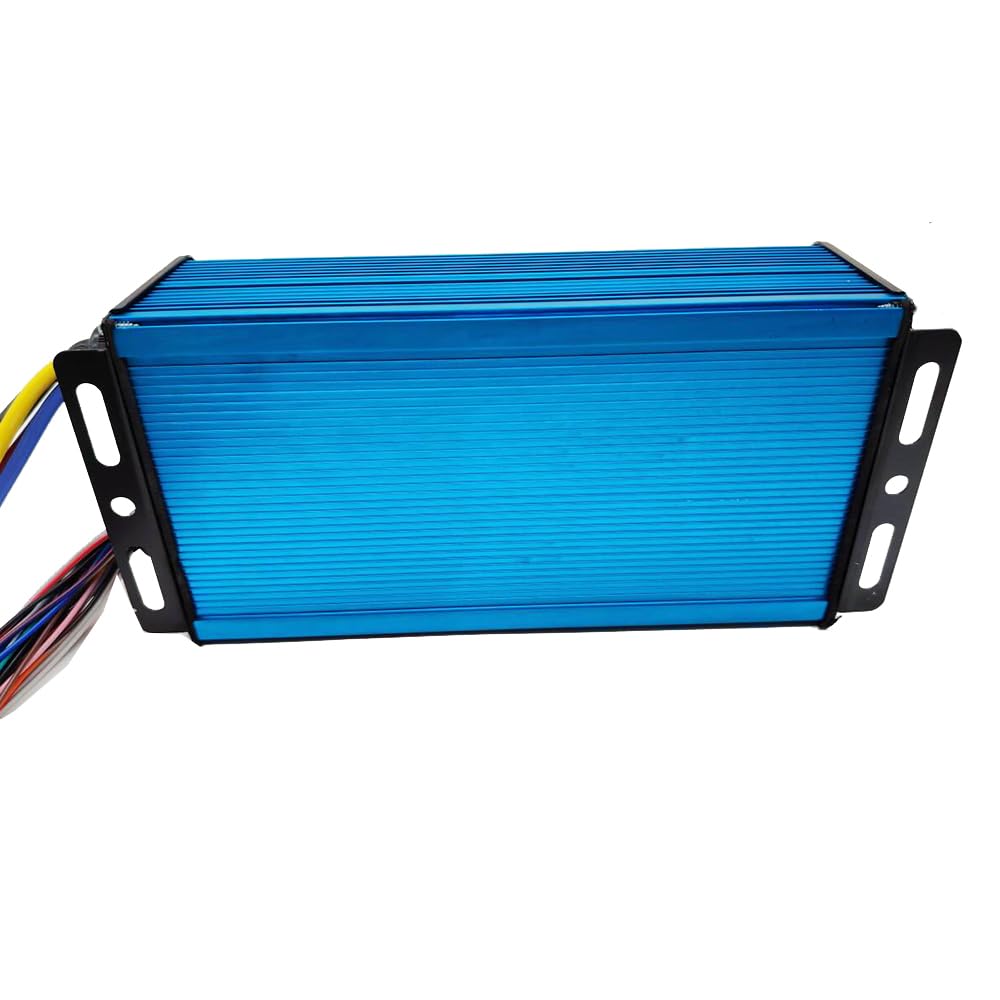

Intelligent Brushless Controller 48V 60V 72V 84V 3000W Maximum Current 100A Aluminium Alloy E-Bike Brushless Motor Controller for Electric Bicycle Scooter

48V-84V 3000W brushless controller just fit brushless motor:

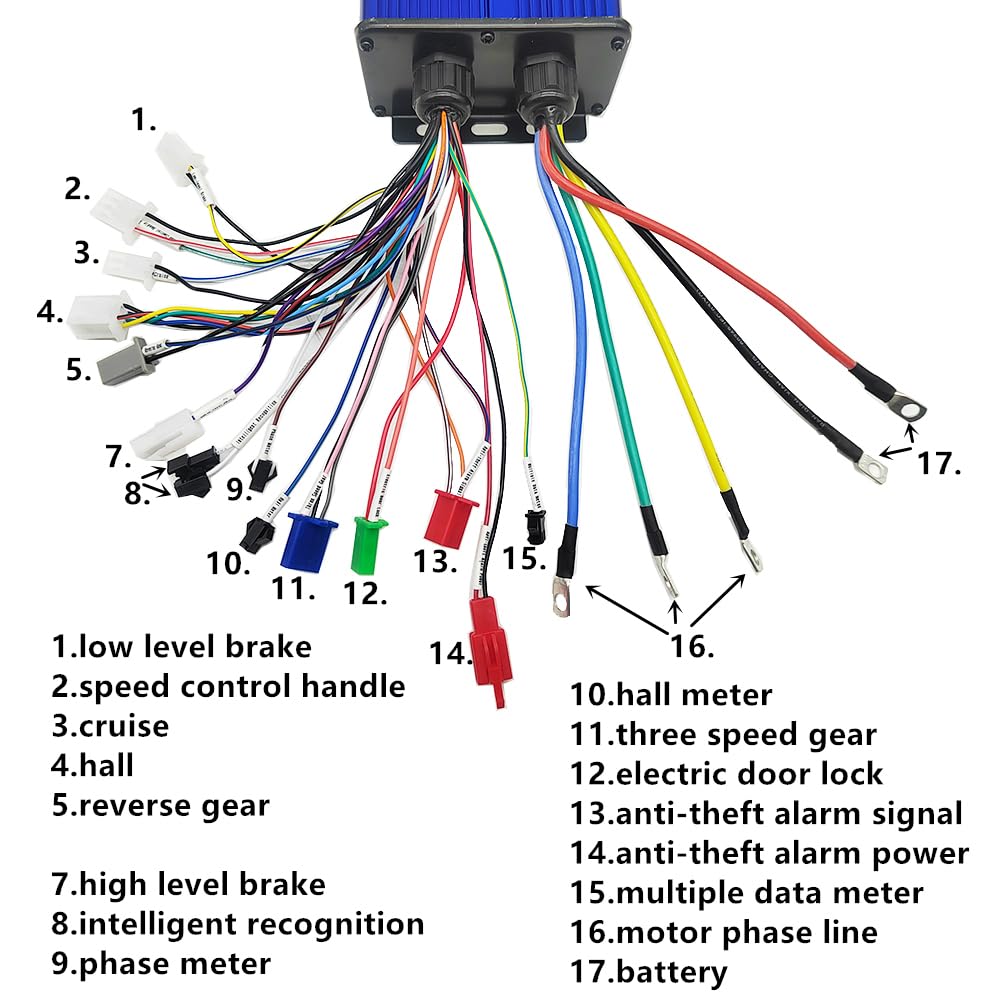

How to connect controller？

1.connect the motor line (color to color）

2. connect the battery line(red:+ , black:-)

3. connect the controller throttle line, electric lock（if throttle not have electric lock, controller electric lock 2 wires docking）

4. connect the hall line(if motor without hall line, don't need connect)

5.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again

if wheel forward ,Separate the self-learning line.)

6.other functions can be connected as needed.
