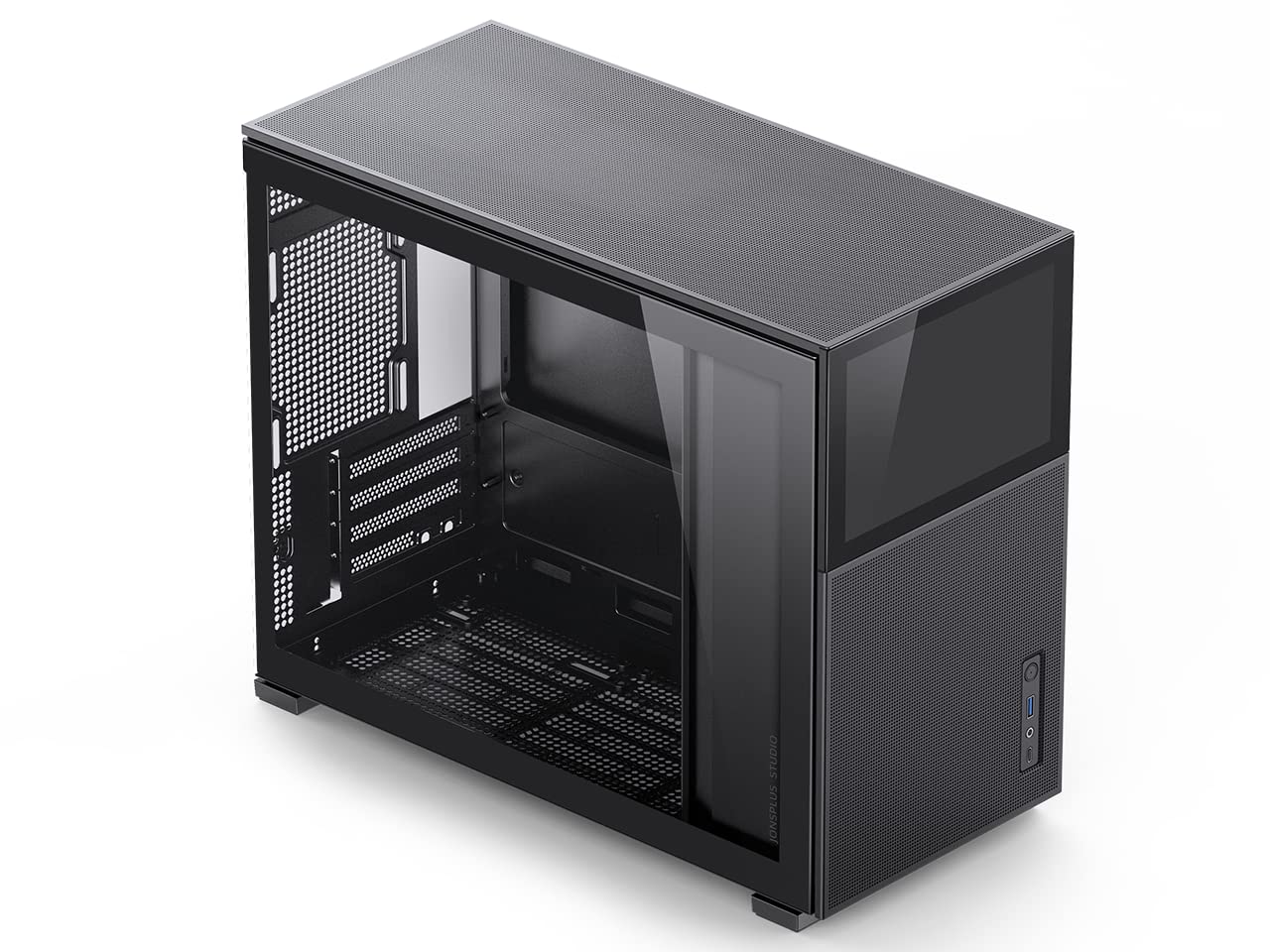

JONSBO D31 MESH SC Black Micro ATX PC Case with Screen, M-ATX/ITX Motherboard/Support RTX 4090(335-400mm) GPU 360/280AIO,Power ATX/SFX: 100mm-220mm Multiple Tool-Free Design Computer case
Note : If the screen has compatibility problems during installation, please contact customer service for solutions. (AIDA64 software needs to be purchased by users), This model D31 is a micro ATX model. If you need a larger size, please purchase D41. If the screen does not display normally, please contact us. It is most likely due to software updates such as graphics card drivers. The mesh panel is easier to ventilate and dissipate heat. Small size, big compatibility, easier to build your PC.More convenient

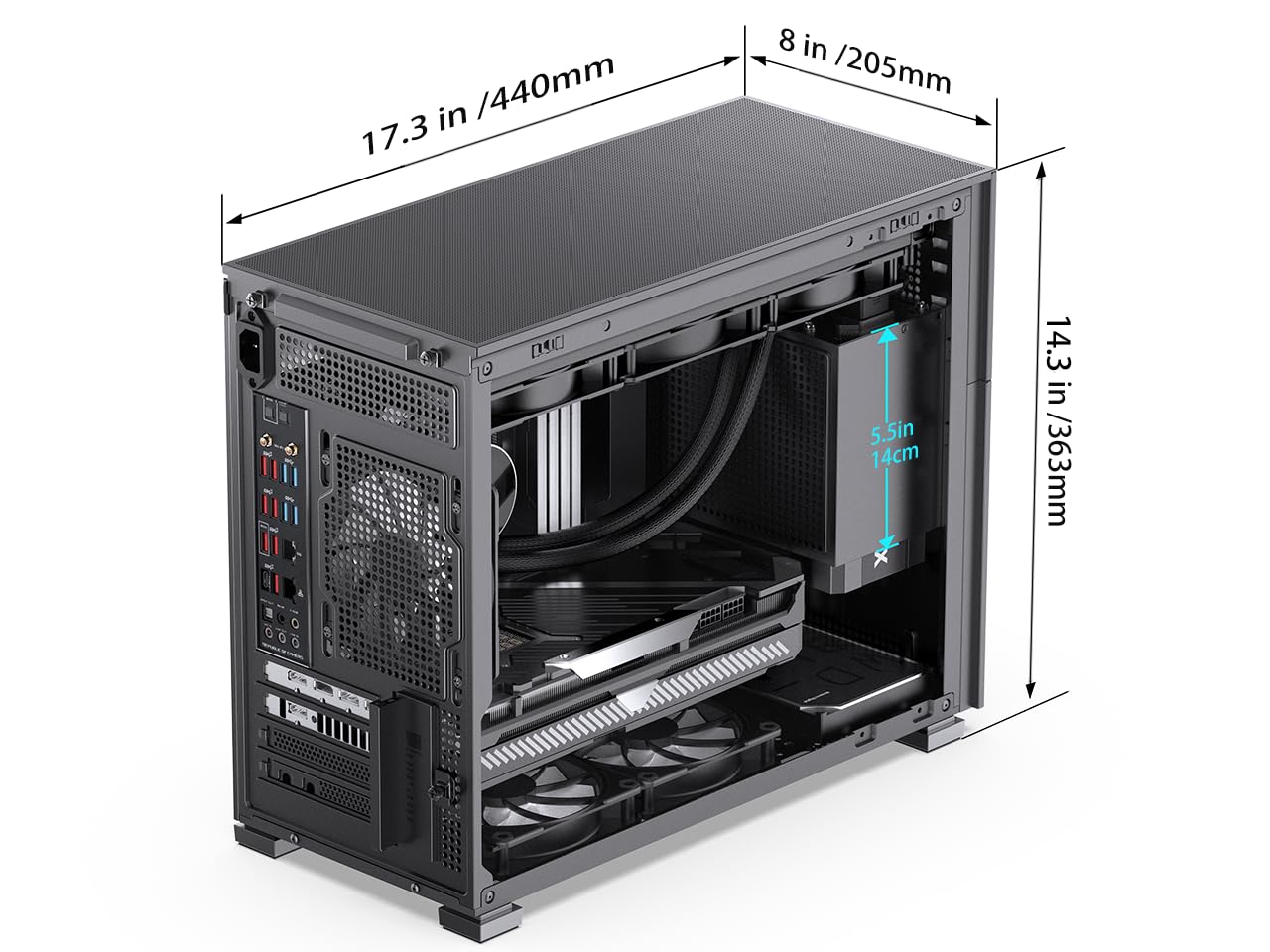

D31 "Pine cone" series-Mesh Screen Micro ATX pc case,size 205*363*452mm POWER SUPPLY: ATX / SFX: 100mm-220mm L max 【The 4-level height adjustment of the power supply】 position is added,Whether it is to set up a personal small workstation or a feverish E-sports PC, D31 can easily select the hardware.
Computer Case Motherboard : MATX/MicroATX GPU:330-400mm PSU: ATX/SFX:100mm-220mm L max
Air cooler:168mm high-order / Support AIO:360/280/240 (Top) 360/240 (Bottom)
Fan mounting position:Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Product Specifications
Item model number: D31
Item Weight: 16.92 pounds
Product Dimensions: 17.3"D x 8"W x 8"H
Item Dimensions LxWxH: 17.3 x 8 x 8 inches
ASIN: B0BQJ7SW4Q
Country of Origin: China
Date First Available: December 19, 2022
Power Supply Mounting Type: Bottom Mount
Cooling Method: Air
Model Name: D31 MESH Black
Total USB Ports: 3
Special Feature: Built-In Type-C USB 3.2 Gen 2, Screen (with potential compatibility issues)
“The wallpaper software recommends using "Wallpaper Engine",

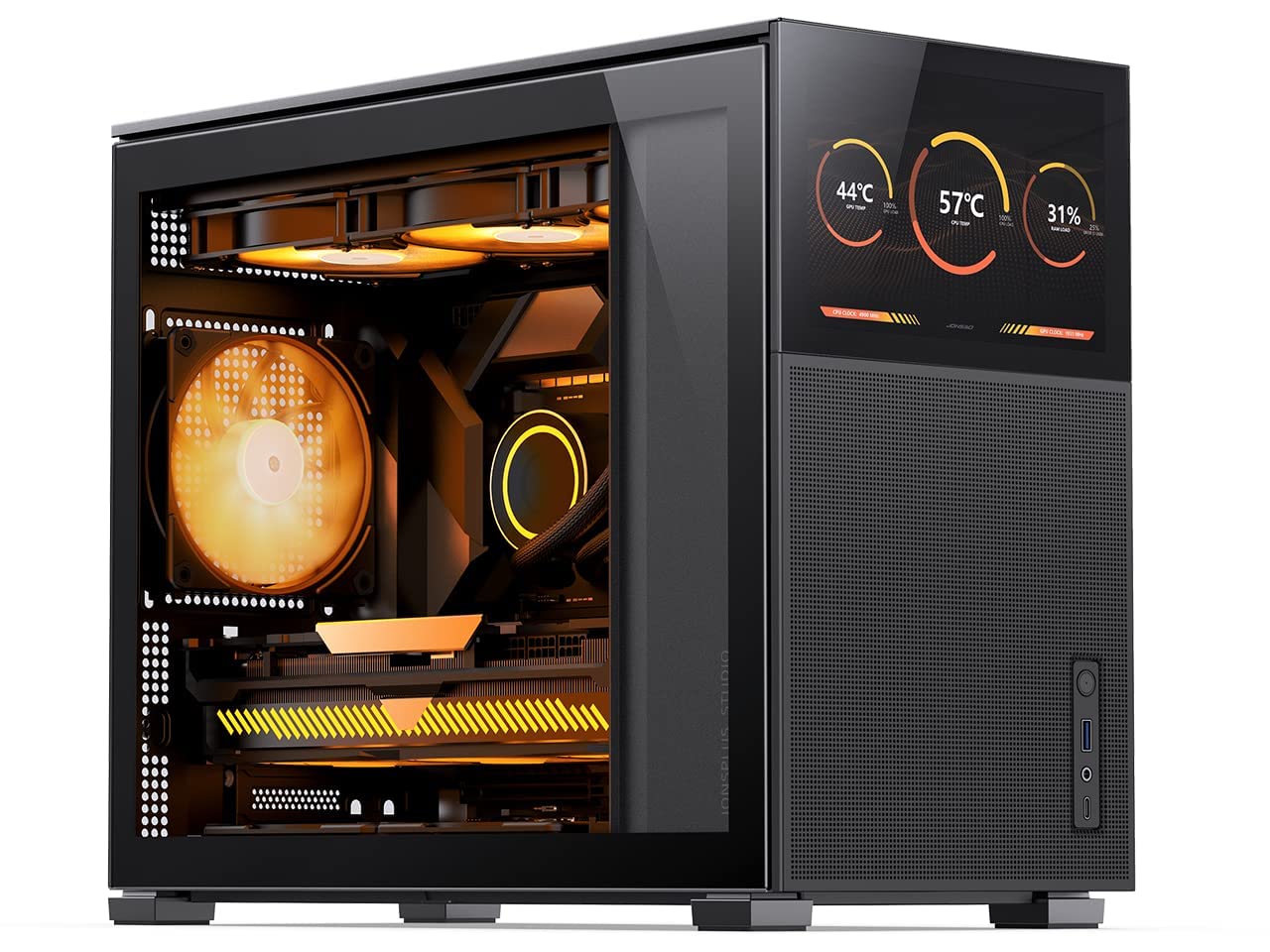

Hardware monitoring software is recommended to use "AIDA64 Extreme".
(The software needs to be purchased by the user)

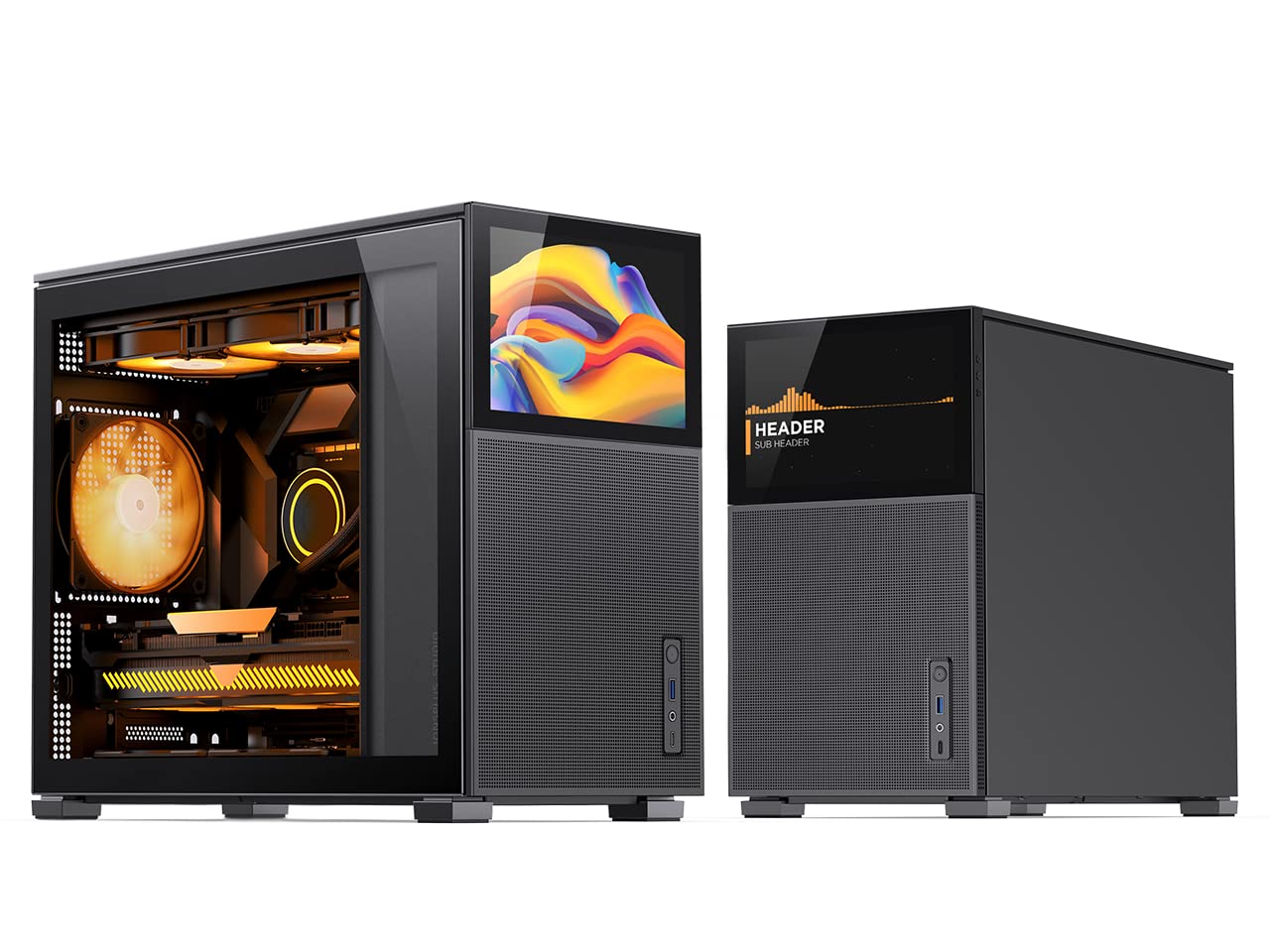

The 1280x800 resolution / 8-inch screen is about 188ppi, which exceeds the display accuracy of a 27-inch 4K monitor of about 162ppi. According to the actual use of 50cm~70cm visual distance, will not produce a sense of pixel particles, all kinds of wallpaper dynamic effects can jump on the screen.

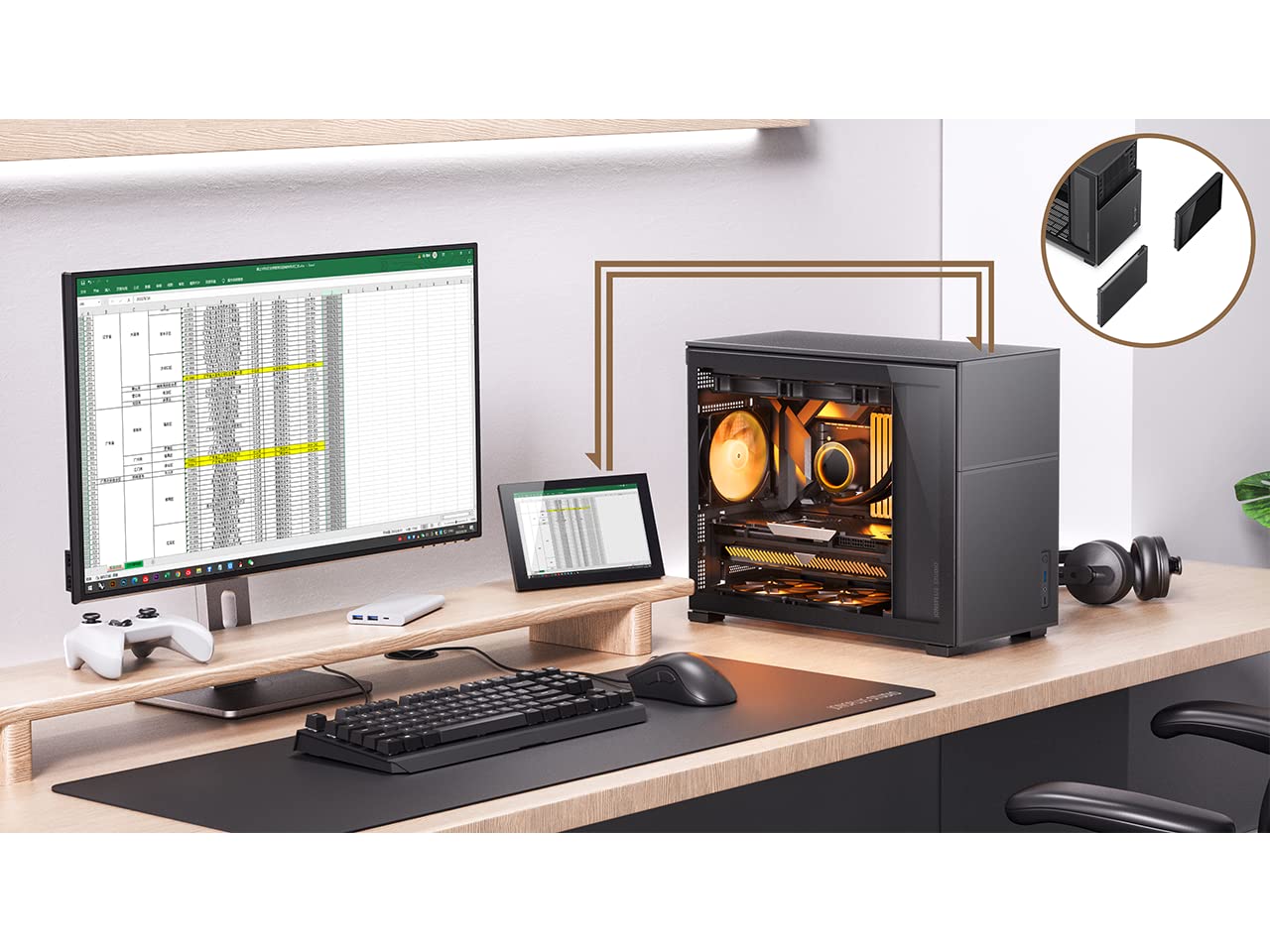

It can be completely disassembled and placed on the desktop
Cooperate with the main display in multitasking operating
Short vertical air duct is constructed for heat dissipation
The heat flow in the space will rise naturally. The D31 follows this characteristic to build the air duct: it supports up to 8 or 12CM fans (or 4 14CM+2 12CM fans).
Thanks to the relatively low box height, the vertical air flow from bottom to top quickly covers the heating hardware, and the internal accumulated heat is discharged from the top mesh. In addition, the installation direction of the power supply can be bidirectional: the power supply air inlet can face the panel direction, without interfering with the internal air duct under the air cooling radiator environment.
The GPU calculation length includes the total length of the pci-e block
The length of the GPU is affected by the orientation of the power supply
When three 12cm fans are installed on the top, the power supply can be installed in the second hanging position
If 360AIO is installed on the top, it is recommended to install the power supply with a length of 14cm to obtain a longer GPU installation control
When the length of the GPU supply is <330mm, the power supply can be installed in the fourth hanging position.
