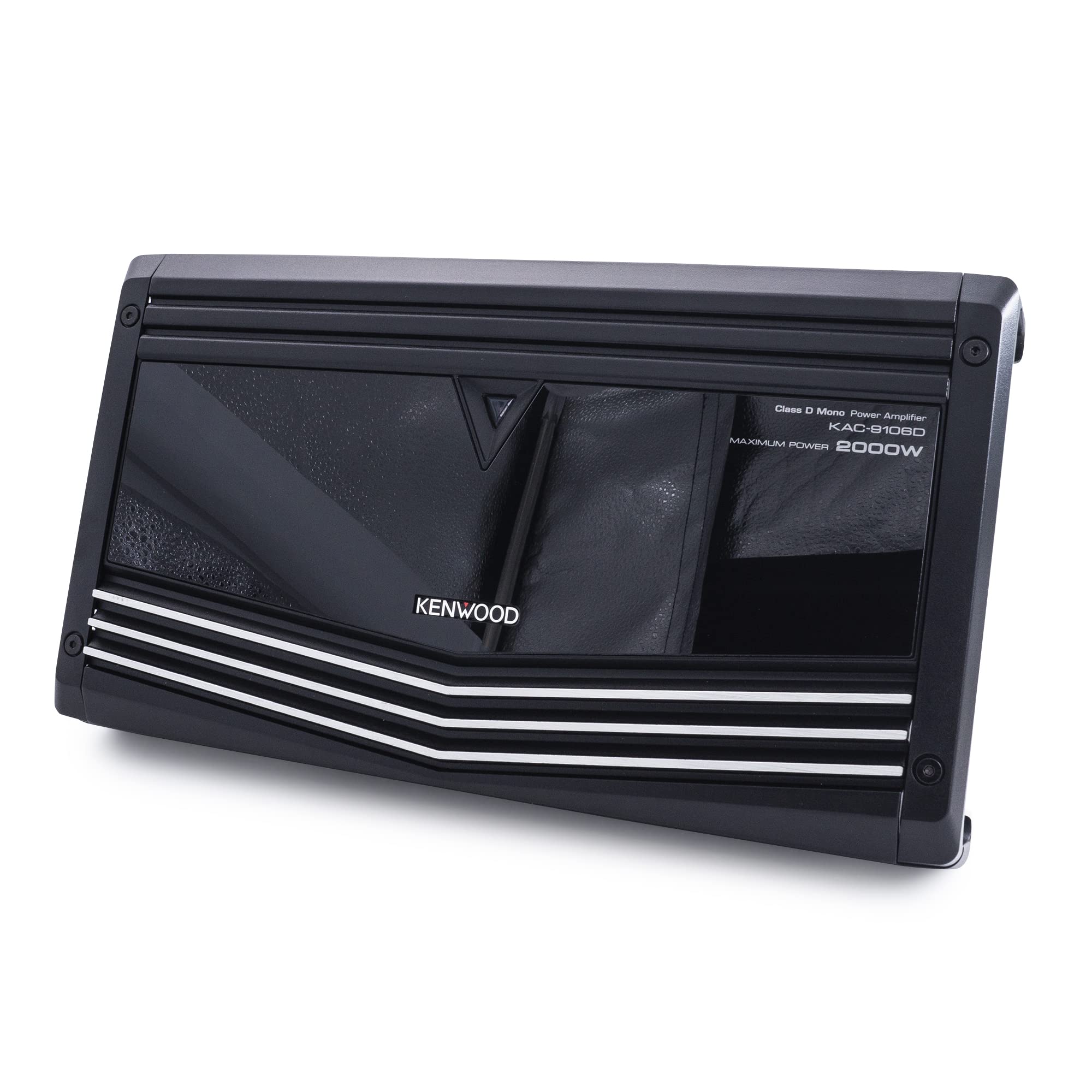

Kenwood KAC-9106D 2000W Monoblock Class D Car Audio Power Amplifier

CEA-2006 Compliant:

CEA-2006 is a system of testing and measurement for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4Ω load, with 1% or less Total Harmonic Distortion plus noise (THD+N), and over a frequency range of 20 Hz to 20 kHz (for full range amplifiers). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4Ω. CEA-2006 standards allow consumers to compare car amplifiers and receivers under the same conditions (apples to apples). Using CEA-2006 criteria, the Kenwood KAC-9106D is rated at 500 watts RMS x 1 channel with a 76 dBA signal to noise ratio. The signal to noise ratio at the rated power output (not CEA-2006 conditions) is 100 dB.

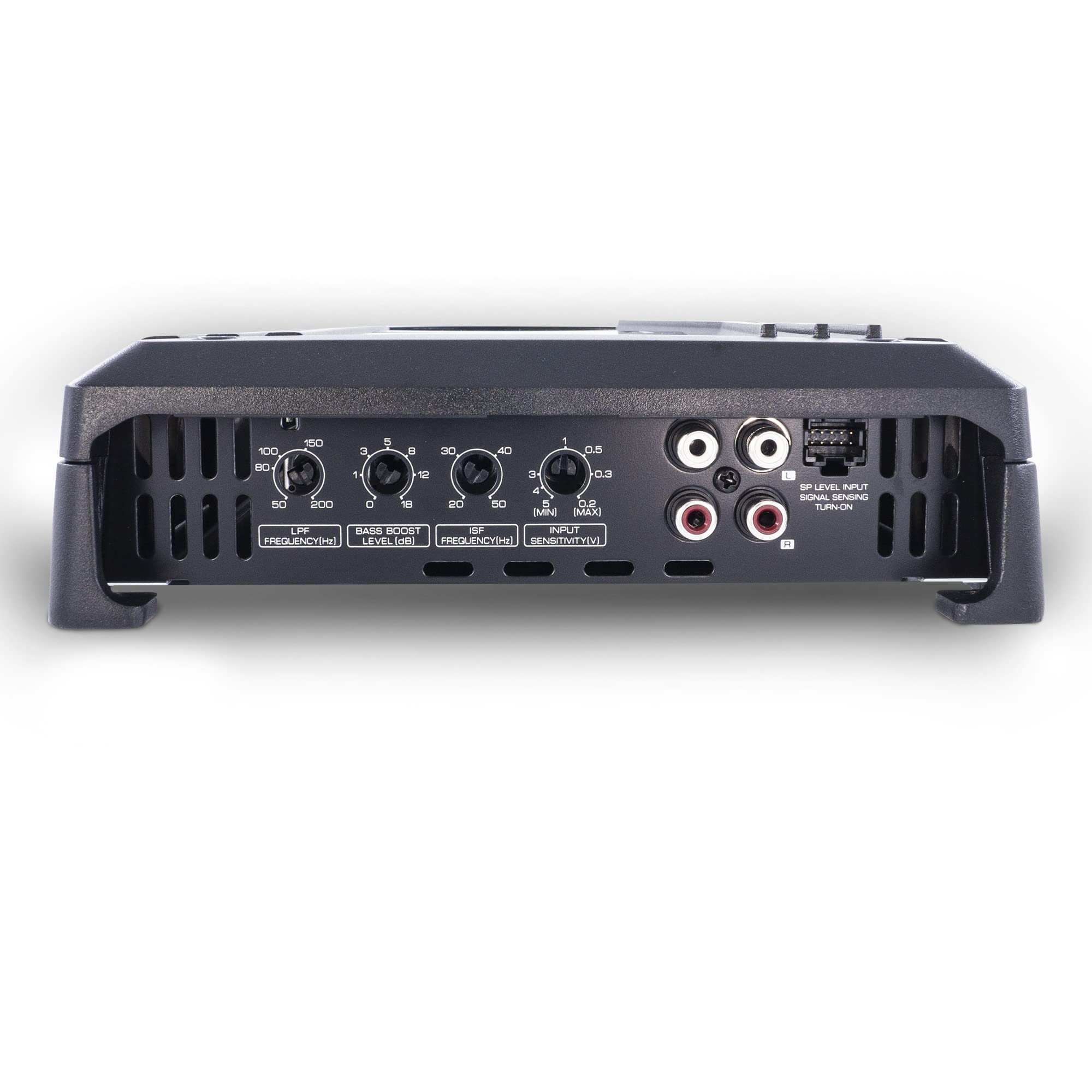

Controls:

Gain: To accommodate the varying range of signal levels from today's factory and aftermarket radios, the KAC-9106D features an adjustable gain control, 0.2-5.0 volts line level (RCA) and 4.0-12.0 volts speaker level.

Crossover: The built-in 24 dB/octave low-pass filter has a continuously variable crossover point, 50Hz to 200Hz. Because this is a subwoofer amp, the crossover is always engaged.

Bass Boost: The bass boost is adjustable from 0-18dB at 40Hz.
