Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
Lightning USB 40G: Featuring a built in USB 4 port offering lightning fast 40Gbps transmission speed
Extended Heatsink Design: Extended PWM heatsink and enhanced circuit design ensures high-end processors to ran at full speed
5G Network Solution: Featuring 5G LAN to deliver network experience
Audio Boost 5: Isolated audio with a high-quality audio processor for the most immersive gaming experience
Product Specifications
RAM: DDR5
Memory Clock Speed: 7800 MHz
Platform: Windows 11
Graphics Card Interface: PCI Express
Memory Slots Available: 4
Manufacturer: MSI
UPC: 824142380499
Item model number: X870TMAHAWKWIFI
Item Weight: 4.4 pounds
Package Dimensions: 13.46 x 10.71 x 2.87 inches
ASIN: B0DG3HK897
Date First Available: September 30, 2024
Product Information
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
From the manufacturer
AMD X870

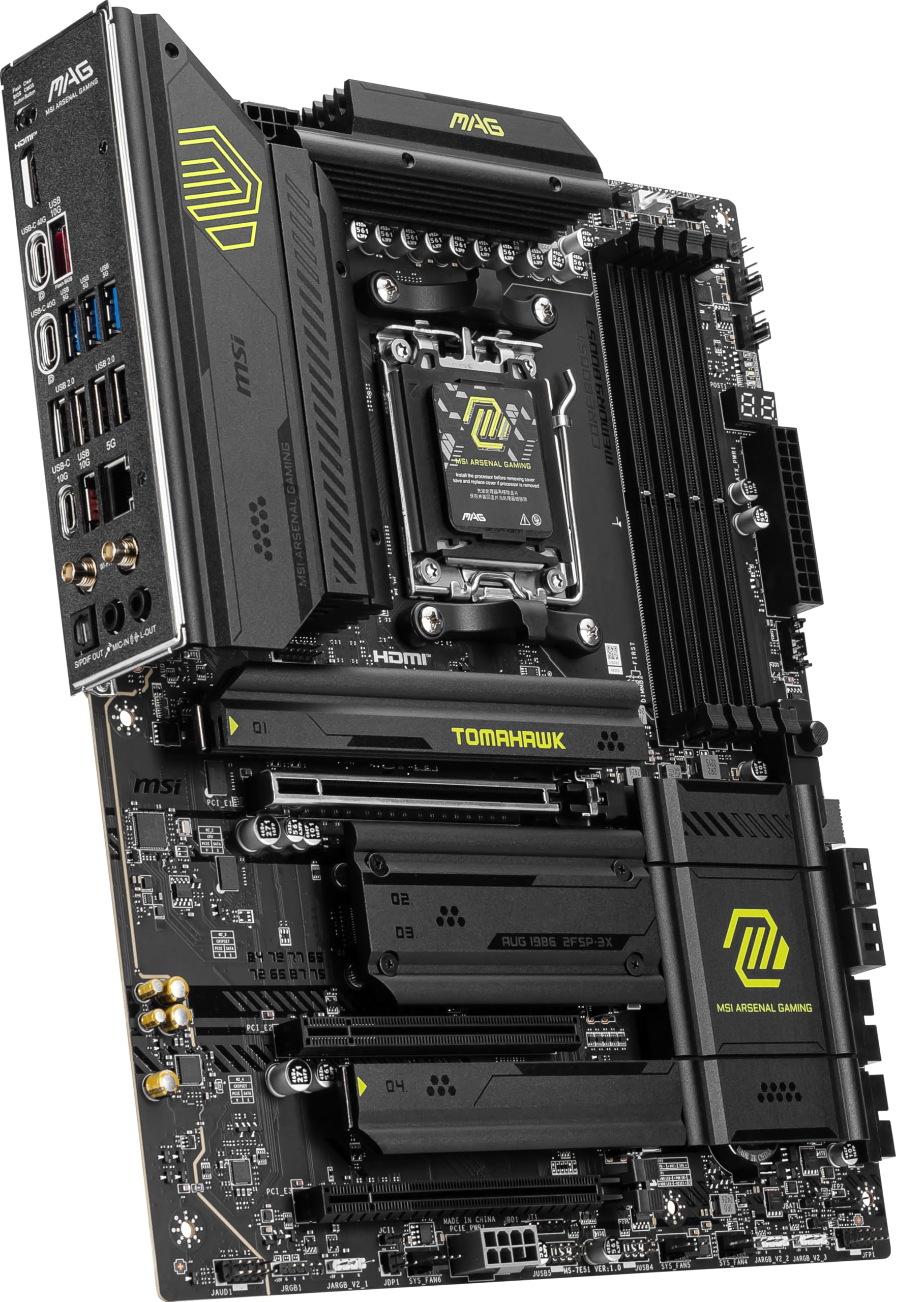

The MAG X870 TOMAHAWK WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
4 x DDR5 Dual Channel (8400+ MT/s OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Ultra Connect
5G LAN, Wi-Fi 7, USB4 Type-C
14 Duet Rail Power System with 80A SPS
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG X870 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.
EZ DIY
The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.
Gen5 M.2 Connector
2 x Gen5 x4 128Gbps slots (one with double-sided M.2 Shield Frozr), 1 x Gen4 x4 64Gbps slot, 1 x Gen4 x2 32Gbps slot
