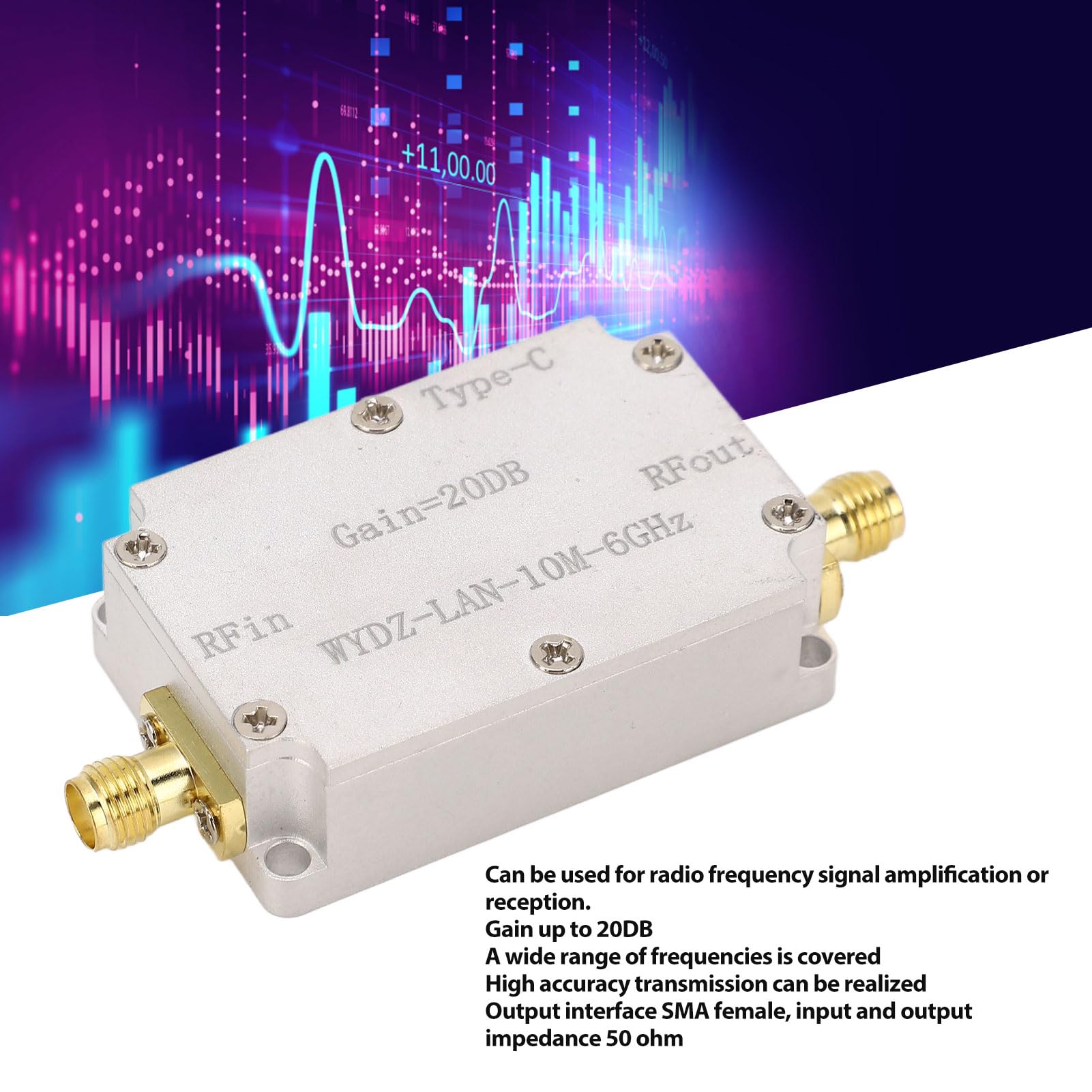

1. FREQUENCY AMPLIFICATION: LNA low noise high flatness amplifier can be used for radio frequency amplification or reception. Gain up to 20DB.
2. HIGH ACCURACY : LNA low noise high flatness amplifier covers a wide range of frequencies and can achieve high accuracy .
3. WIDE USE: Low noise high flatness amplifier can be used for GPS receiver, receiving system such as FM radio, receiver, etc, electromagnetic compatibility receiving system and software radio.
4. CURRENT AND OUTPUT INTERFACE: High flatness amplifier's current is less than 80ma and the output interface is SMA female, input and output impedance is 50 ohm.
5. ALUMINUM ALLOY: LNA high flatness amplifier is made of aluminum alloy with excellent workmanship and robust.
Spec:
Item Type: High Flatness Amplifier
Material: Aluminum Alloy

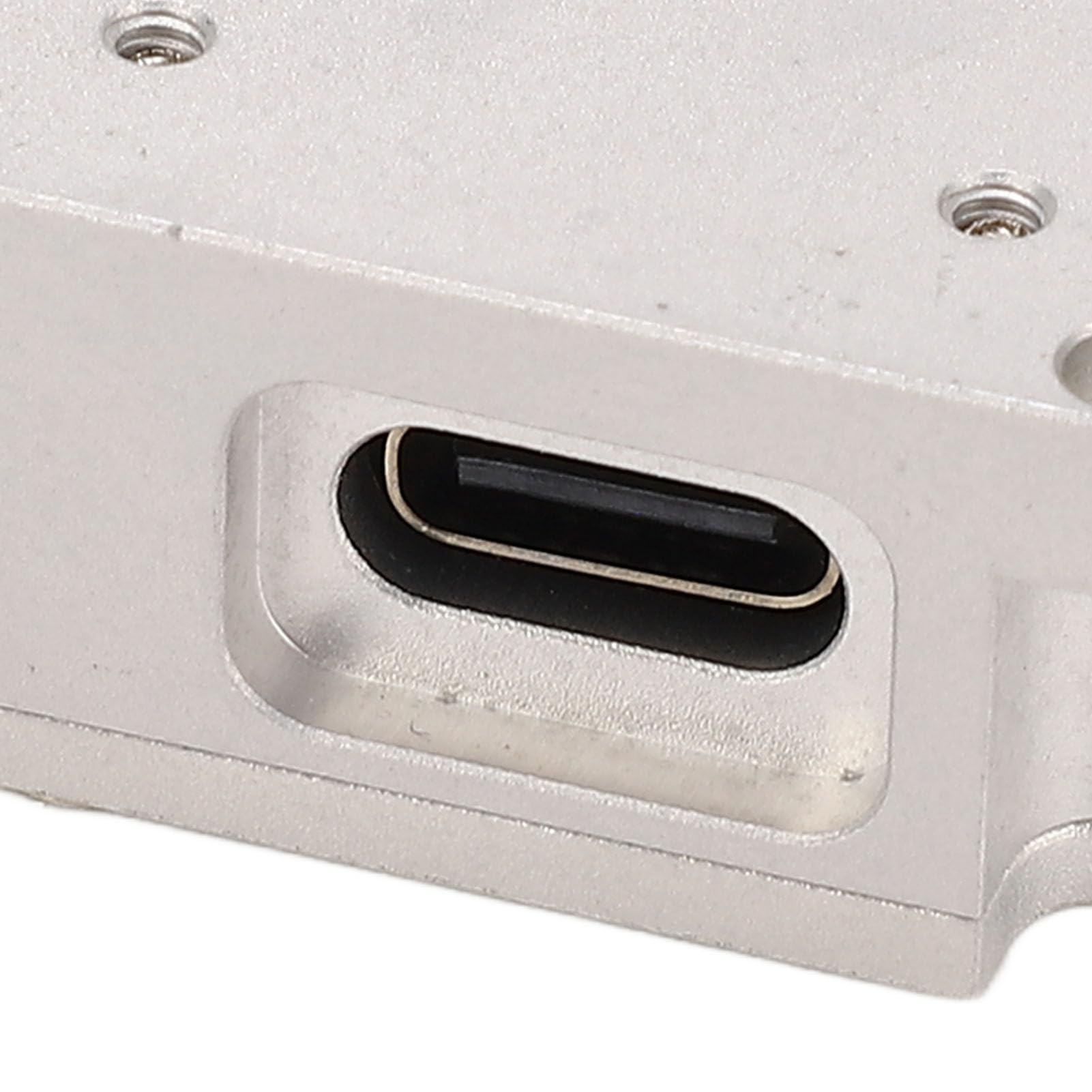

Power Supply: Type C Line DC5V
Module Frequency Range: 10M-6GHz

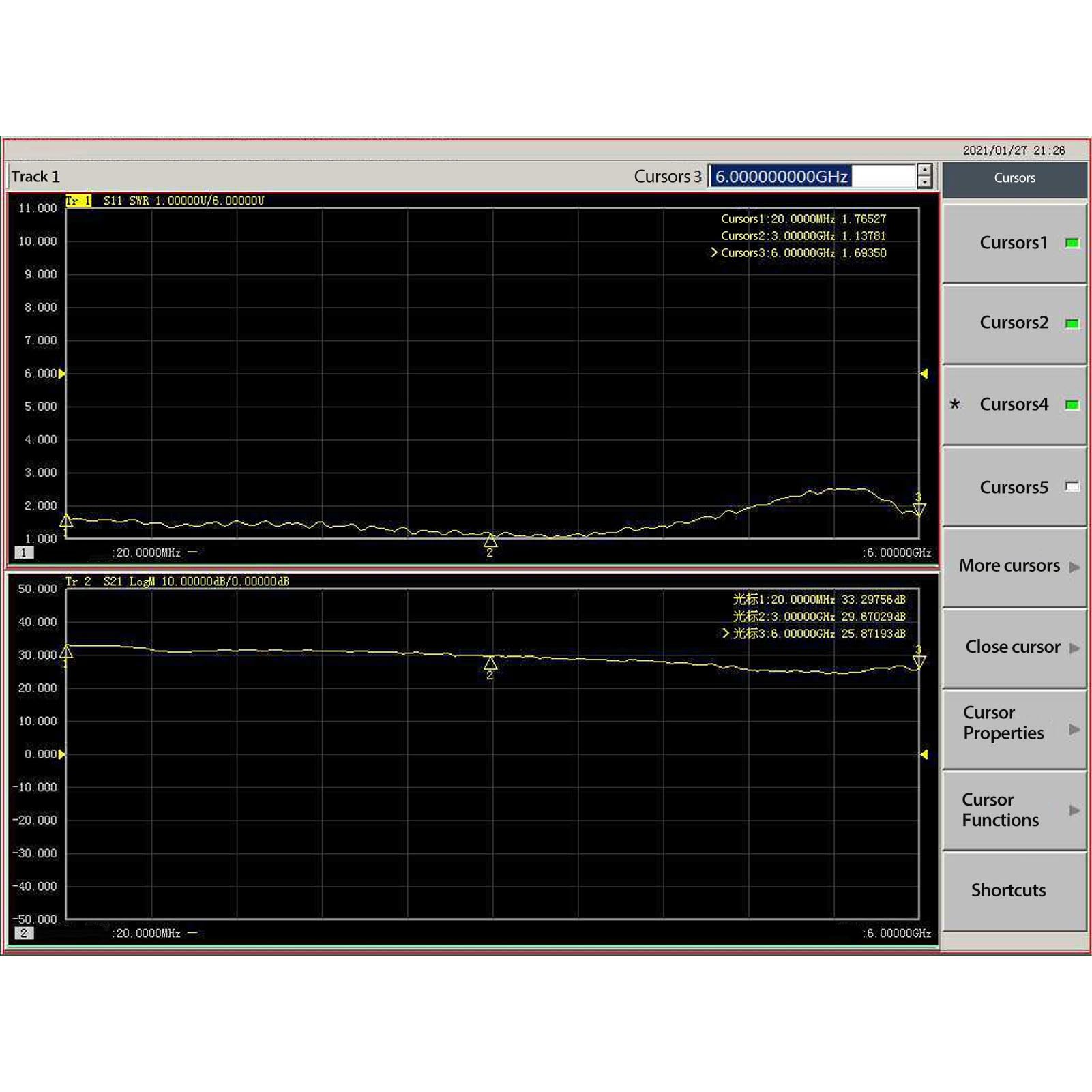

Noise Factor: NF (Different Frequency Reference Measured Curve)
Gain: 20DB (Different Frequency Reference Actual Measurement Curve)
Current: Less Than 80mA
DB: P1dB Equal To 10dBm At 2GHz

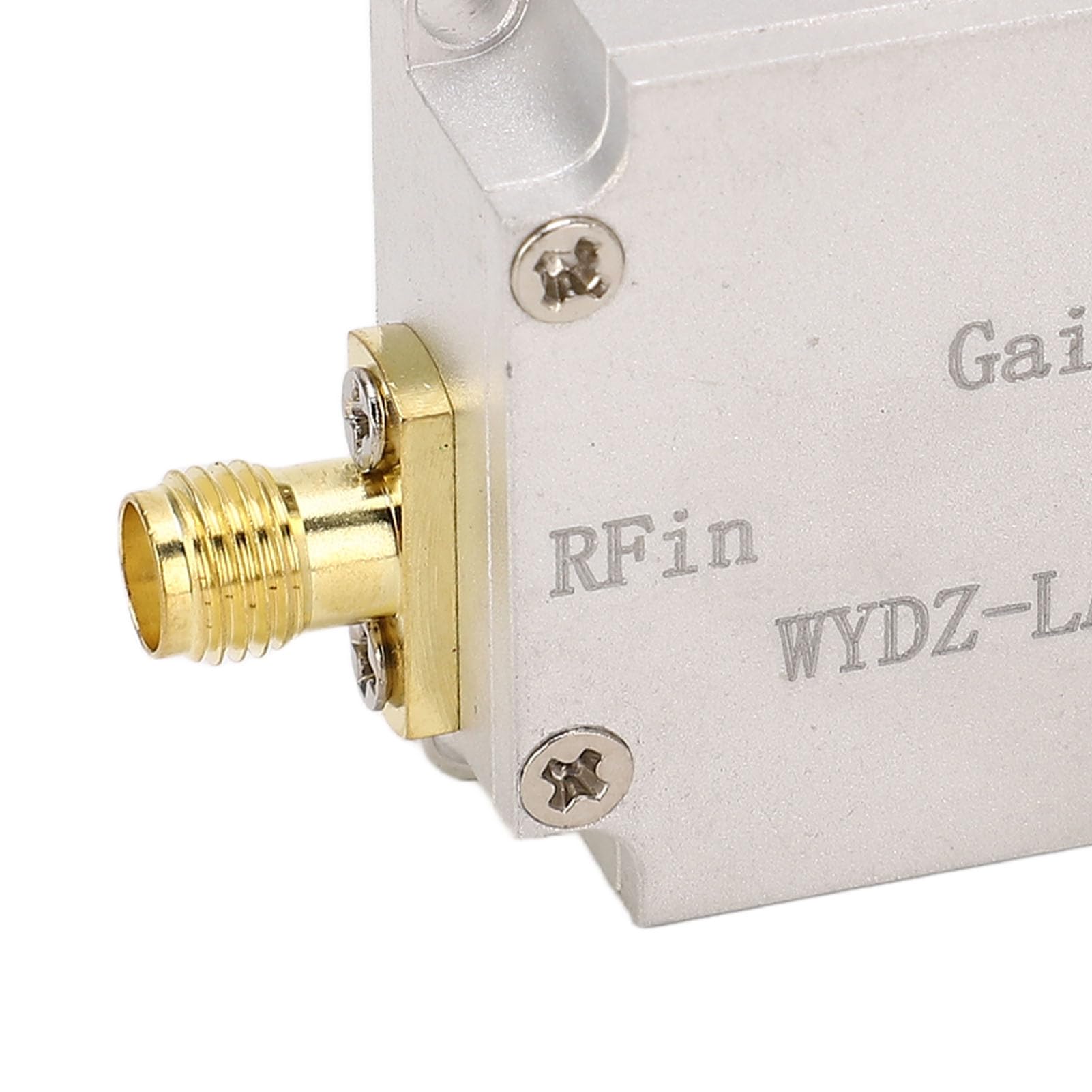

Output Interface: SMA Female
Input And Output Impedance: 50 Ohm
How to Use:
After taking out the product, connect the antenna to the machine according to the output and input terminals, and then use it after connecting to the power supply.

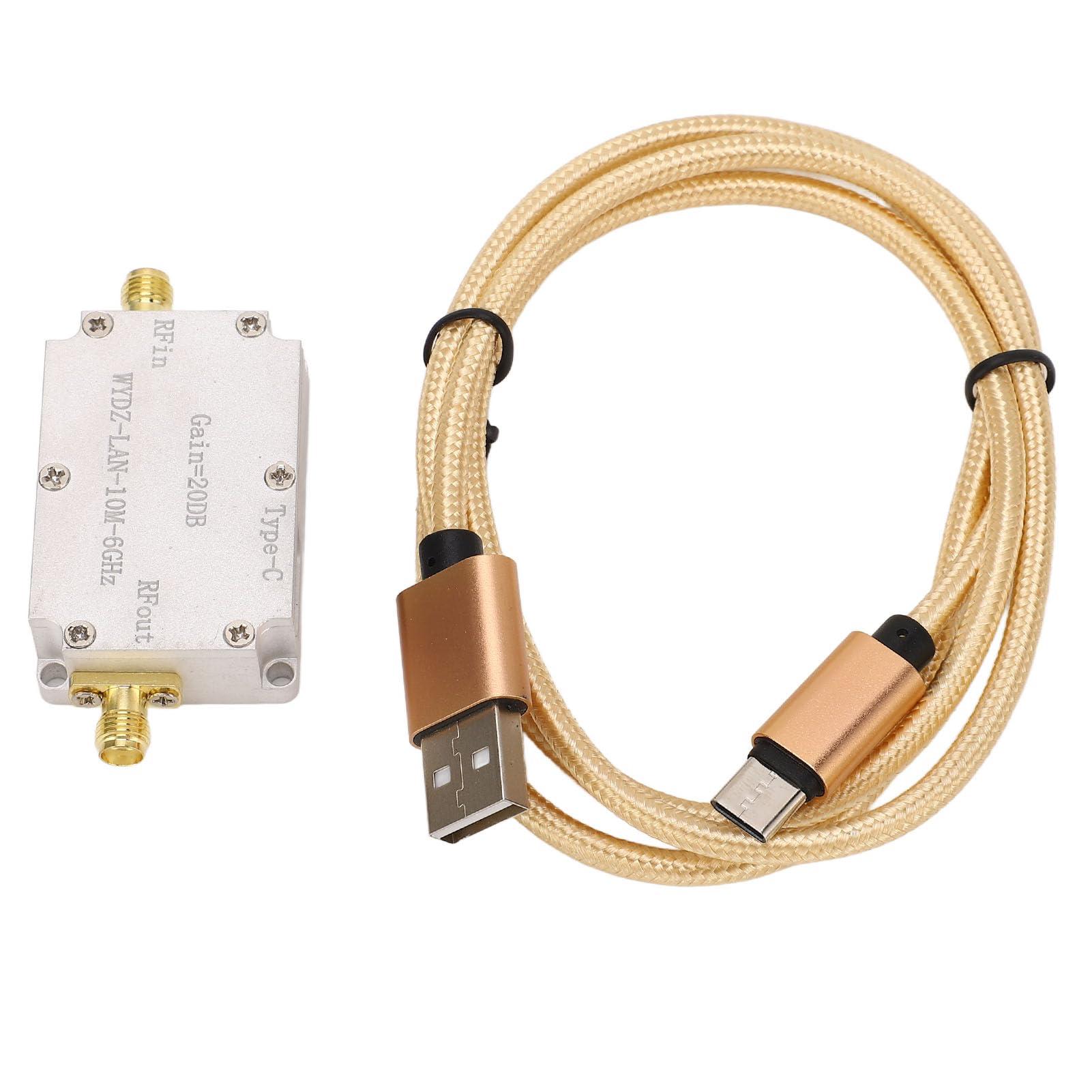

Package List:
1 x High Flatness Amplifier
1 x Amplifier Power Cord(Random Color)
