RackChoice 3u Rackmount Server Chassis MATX/Mini-ITX 3x5.25 Support ATX PSU with Either top/Bottom or Side Cooling and SFX PSU (Need to use The ATX to SFX braccket in Screw Box)
3U server case has External Bay: 3x5.25" + Internal Bay: 8x3.5 max+1x3.5 to 2.5 adapter
Cooling fan: 2x 80mm infront preinstalled + 2 x 60mm fan at rear (option)
M/B size: Use ATX M/B support 2 x 5.25 / use Micro ATX M/B support 3 x 5.25

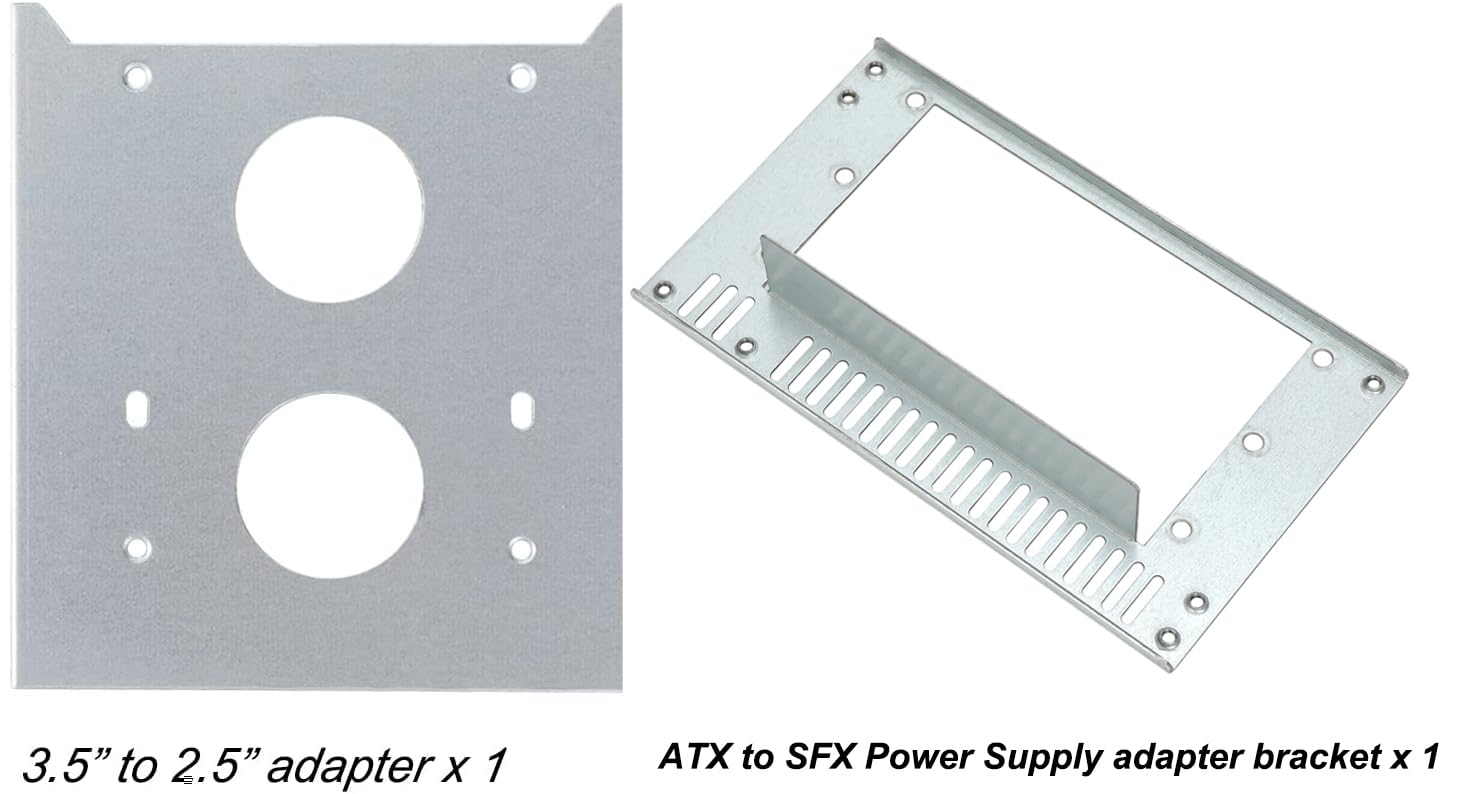

Supports standard ATX PSU with top / bottom 120mm or side 80mm fan or SFX PSU (need to use the ATX to SFX braccket in screw box
About GPU If remove a HDD cage max support 320mm to 340mm if donot remove the HDD cage, max support 240mm to 260mm please note 3U size is limited, please use the small power supply like SFX PSU to save space for cable management
Material: Zinc-Coated Steel+aluminum handel
With dust filter bracket in front easy maintenace
Case Type: 3U Rack mount
Product Specifications
Customer Reviews: 4.0 out of 5 stars 20Reviews
Best Sellers Rank: #703 in Computer Cases
Product Information
Product description

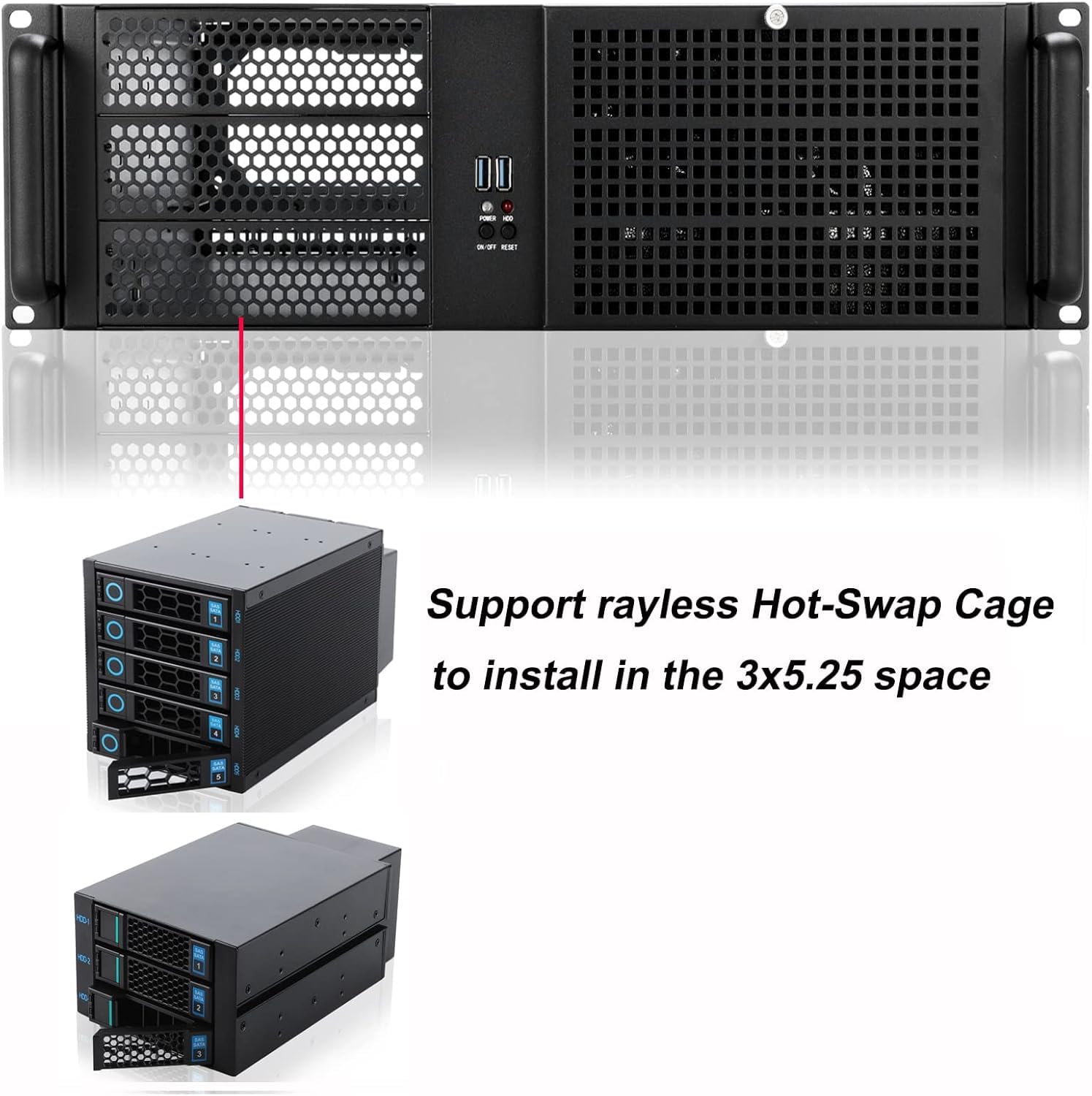

3x5.25 space for flexible 5.25 device option for example 3.5" hotswap cage
drawing

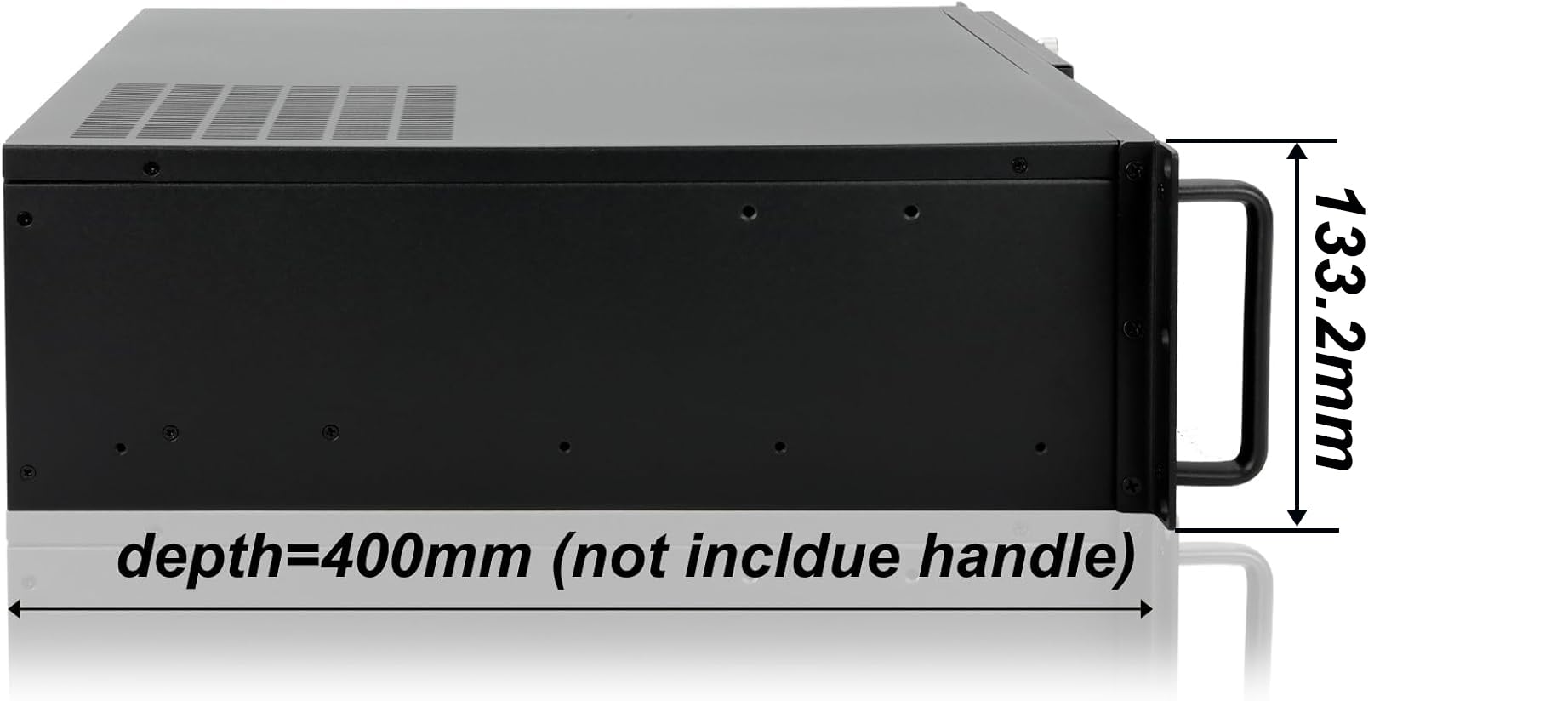

1) compact size chassis depth=400mm not include handle.
2) depth=435mm include handle
3) when use ATX M/B , support 2x 5.25" drive bays, as MB conflict the bottom 5.25"
4) when the ATX or MATX M/B, support 4x3.5"
when use the Mini itx M/B,support 8x3.5"
1) 2x80mm cooling fans preinstalled in front
2) 2x60mm cooling fans preinstalled at rear

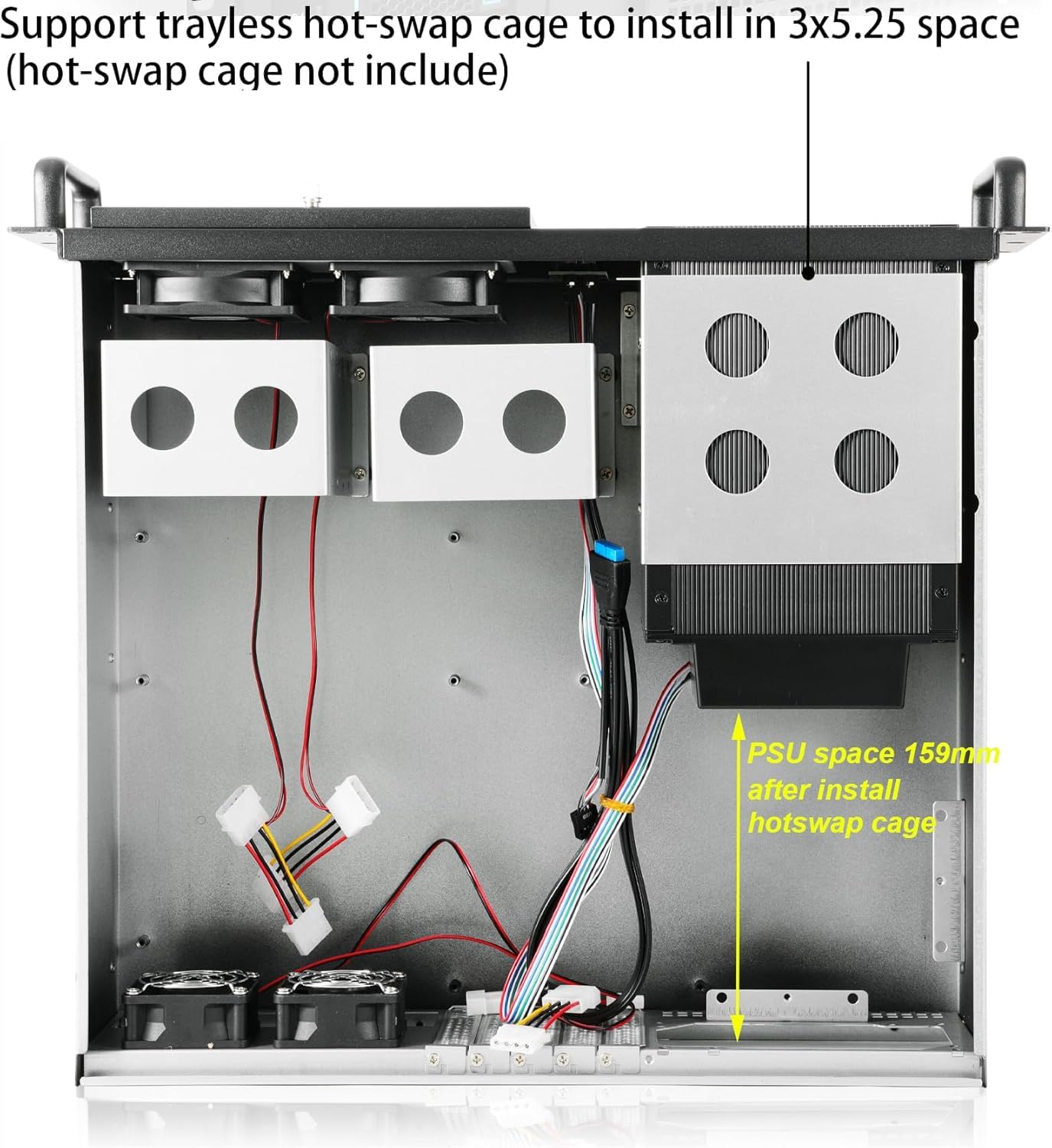

3) About 159mm space left for PSU after install hotswap cage

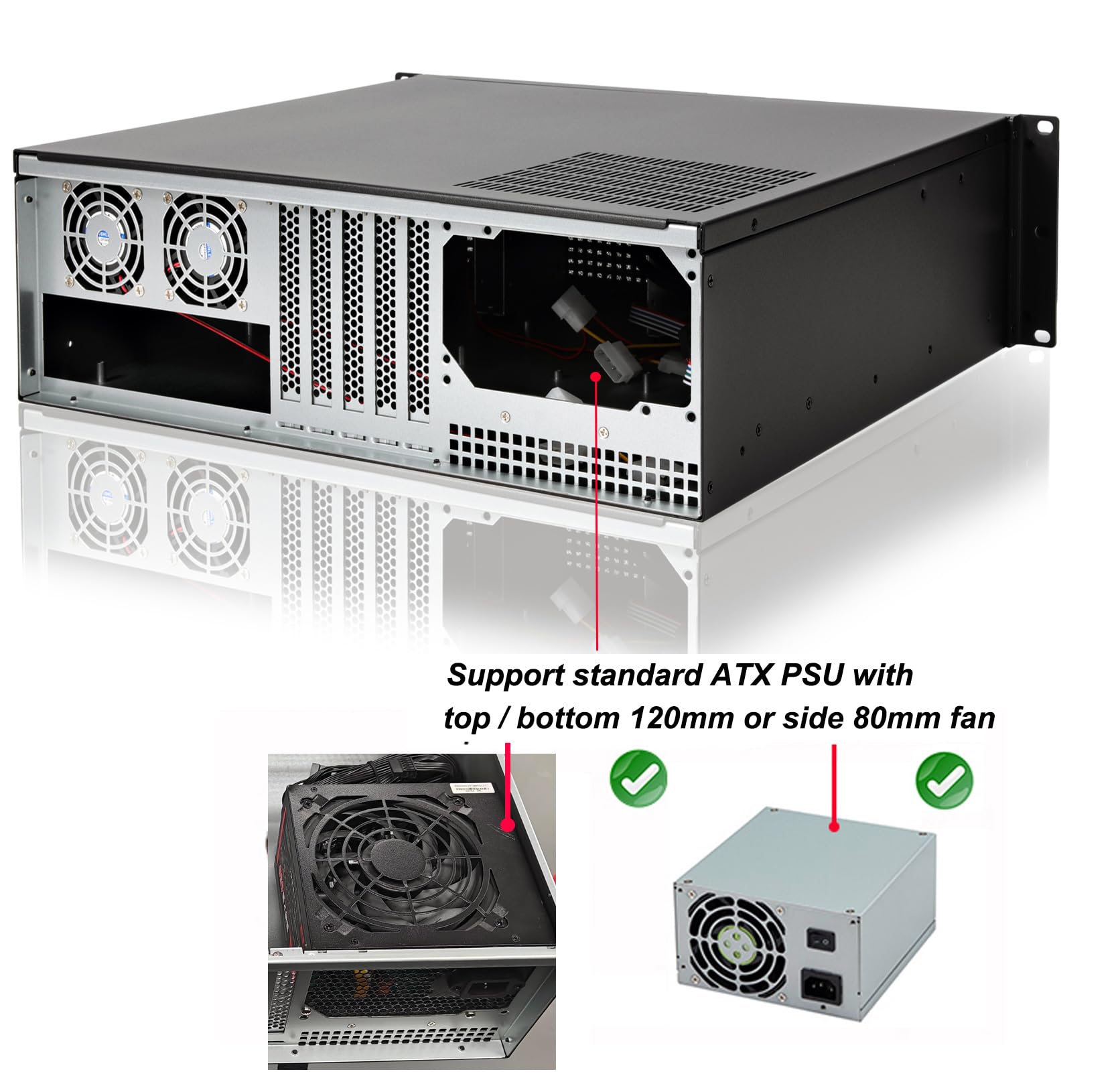

Unique design support ATX PSU with different type cooling fan
1) Support ATX PSU with top/bottom 120mm cooling fan
2) Support ATX PSU with side 80mm cooling fan
with replaceable dust filter in front
with replaceable dust filter in front
to support GPU, please use as small as possible for PSU like SFX and with module cable

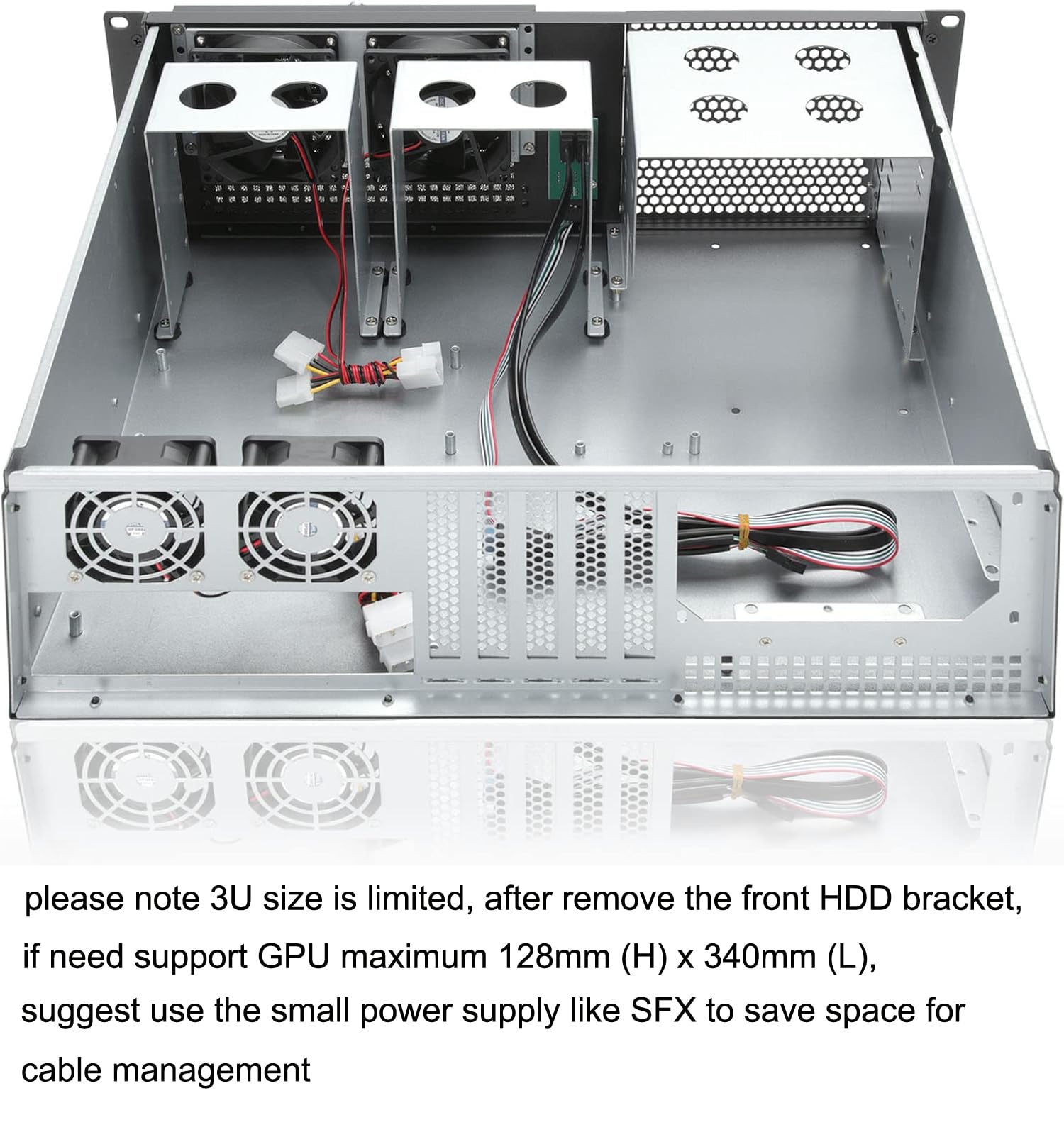

please note 3U size is limited, after remove the front HDD bracket, If you need support for a maximum GPU size of 128mm (H) x 340mm (L), please use the small power supply like SFX PSU to save space for cable management
