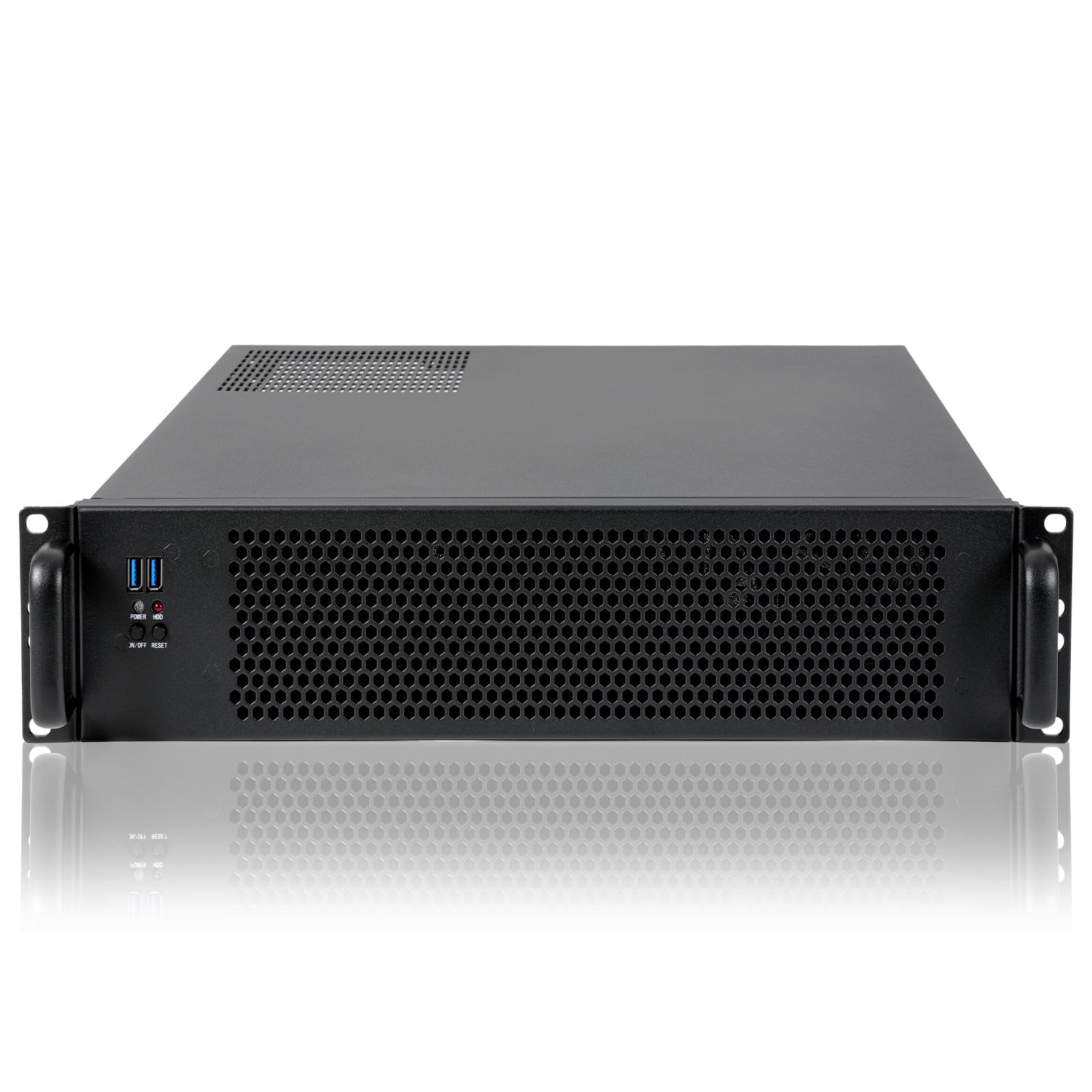

RackChoice MicroATX/Mini-ITX 2U Rackmount Server Chassis max 9x3.5 Bay / USB3.0 with 2.0 Adapter Support ATX PSU Either top or Side Cooling Depth 17.7" Black
M/B size: Micro-ATX 9.6 x 9.6 / mini-itx 6.7 x 6.7
Supports standard ATX power supply with any fan type (120mm or 80mm both OK)

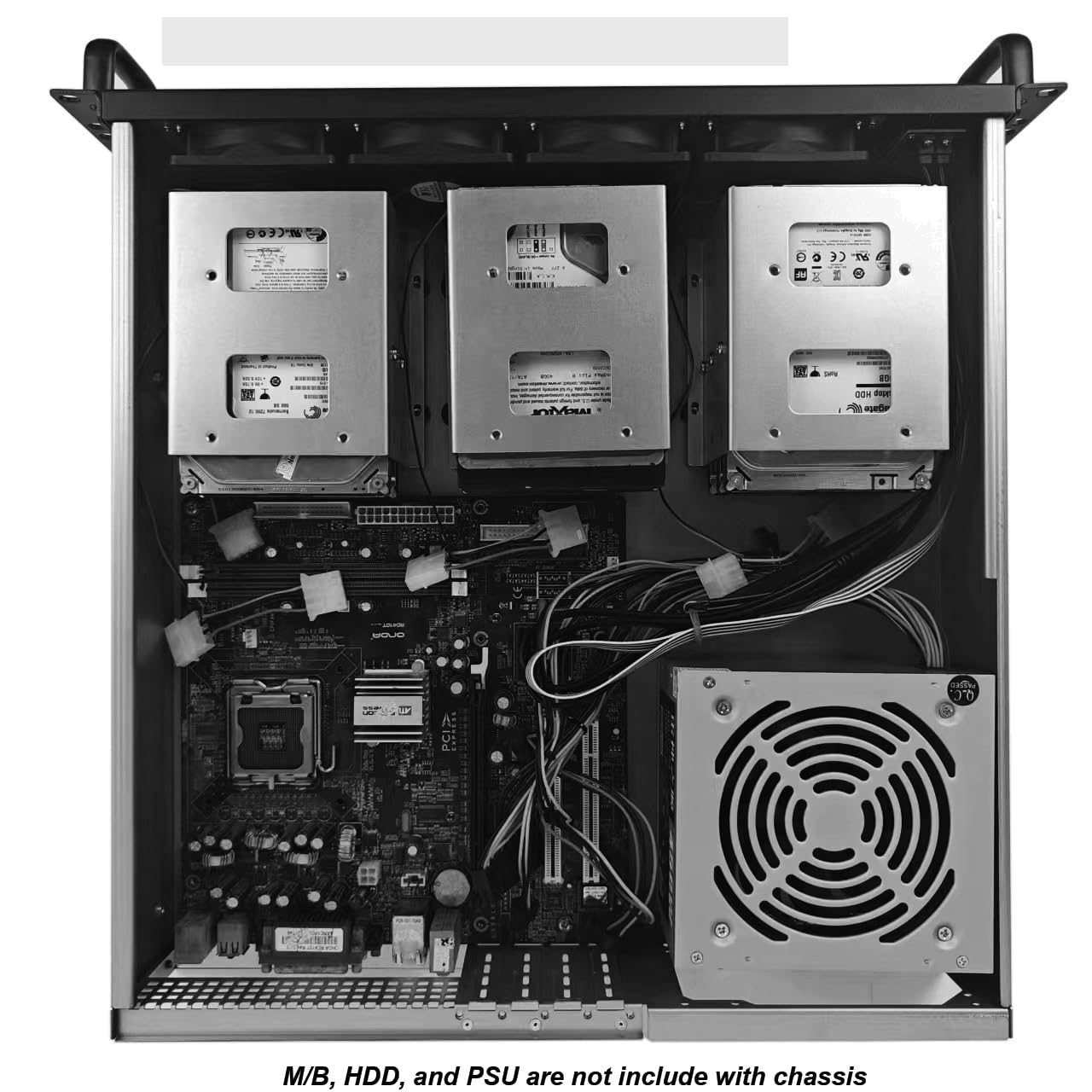

Internal Bays: 9x3.5" Drive Bays when use Mini-ITX M/B (the bottom 3.5 drives suggest to use 90 degree sata adapters) 7x3.5" Drivebays when use Micro ATX M/B Each HDD cage with 2.5 dirivebay hole on top
Material: Front Bezel Steel ; Main Chassis- Zinc-Coated Steel; handle Aluminum
2 x front access USB 3.0 (compatible with USB2.0)
With 4x80mm intake cooling fan preinstalled
case type: rack mount
2U rackmount chassis depth 450mm for moreo Organize cables space (not includel handel)
Product Specifications

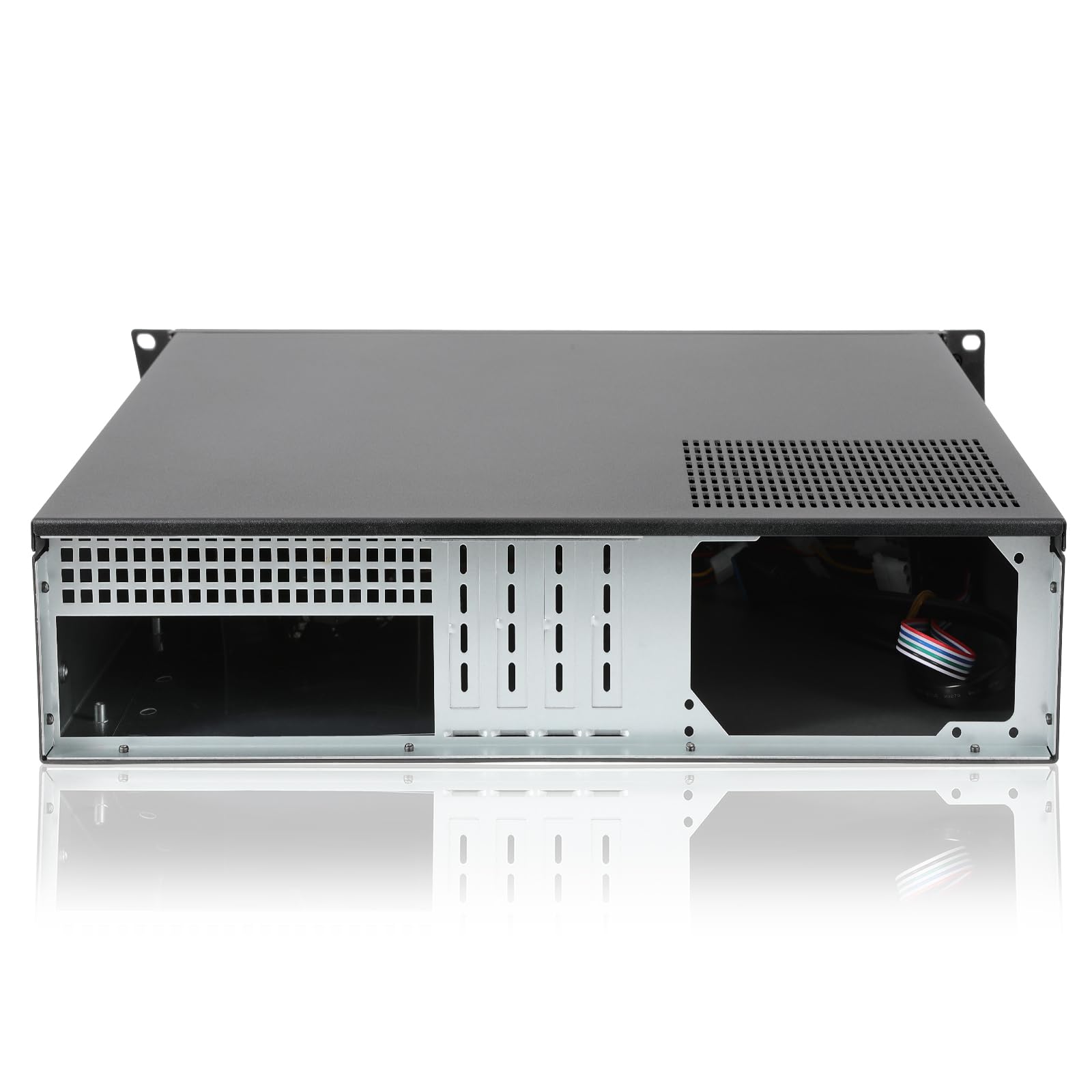

Power Supply Mounting Type: Rear Mount
Cooling Method: Air
Fan Size: 8E+1 Millimeters
Item Weight: 15.4 pounds
Number of USB 2 Ports: 2
Number of USB 3 Ports: 1
Total USB Ports: 2
Special Feature: Supports standard ATX power supply with any fan type (120mm or 80mm both OK)
Hard Disk Form Factor: 3.5 Inches
Total Internal Bays: 9
Compatible Devices: [INCOMPLETE]
Fan Count: 4
Manufacturer: Rackchoice
UPC: 787996911922
Product Dimensions: 15.7 x 19 x 3.5 inches
Item Dimensions LxWxH: 15.7 x 19 x 3.5 inches
ASIN: B0CC2ZMC7M
Country of Origin: China
Date First Available: July 17, 2023
Product Information
Product description
cooling fan
4x80mm cooling fan preinstalled
Drive bay

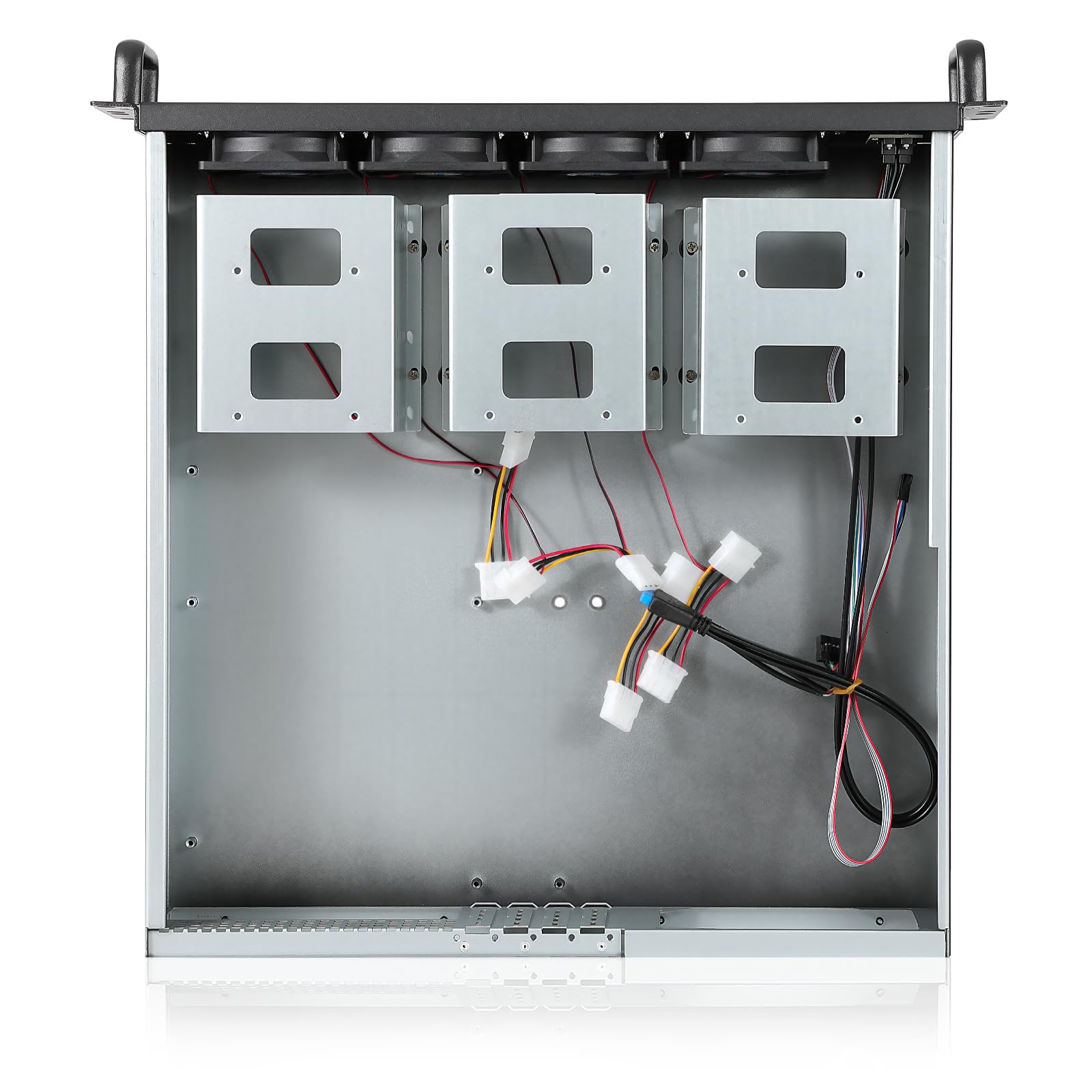

Three HDD bracket, can holding 9x3.5" or 6x3.5"+3x2.5" drive bay
Dust filter
Removable and replaceable dust filter
Drawing

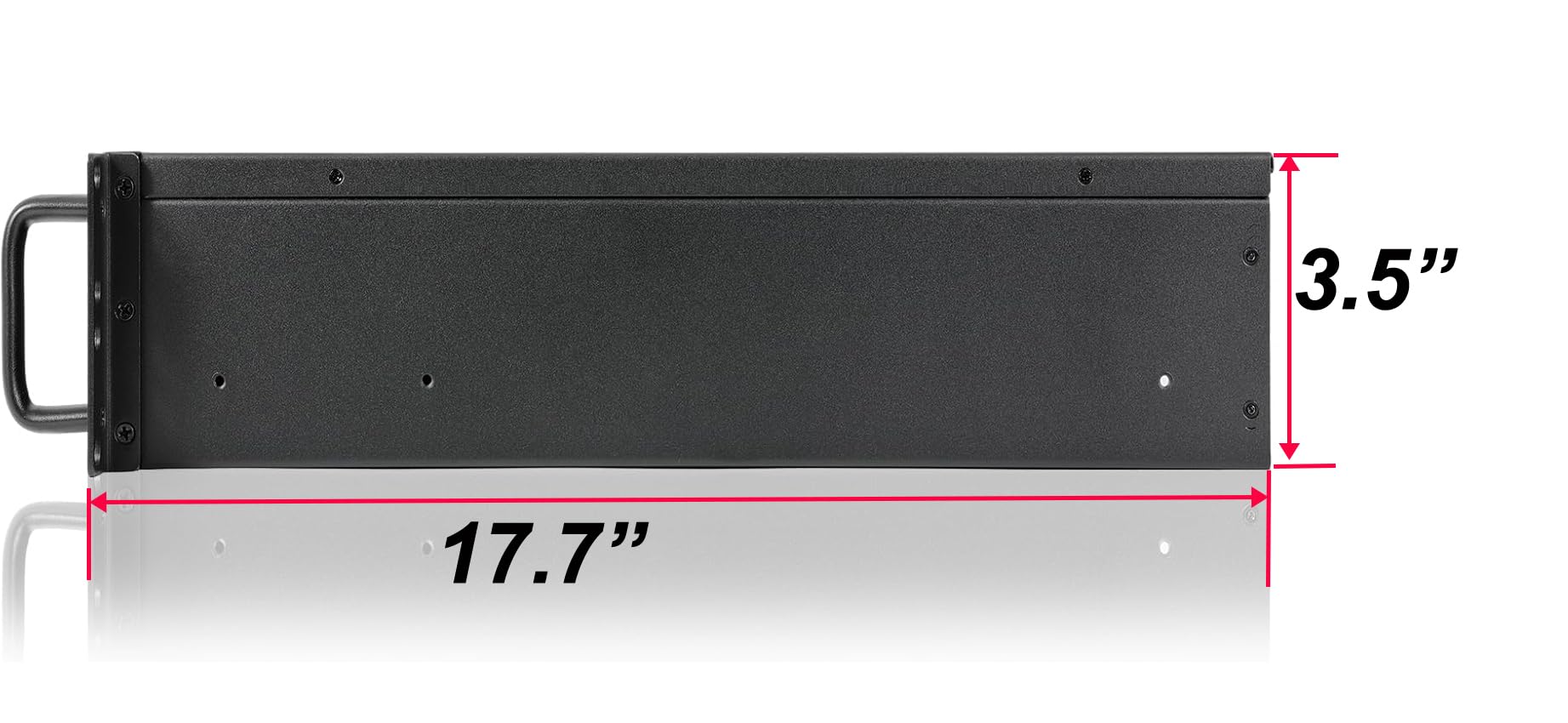

Chassis depth=450mm not include handle

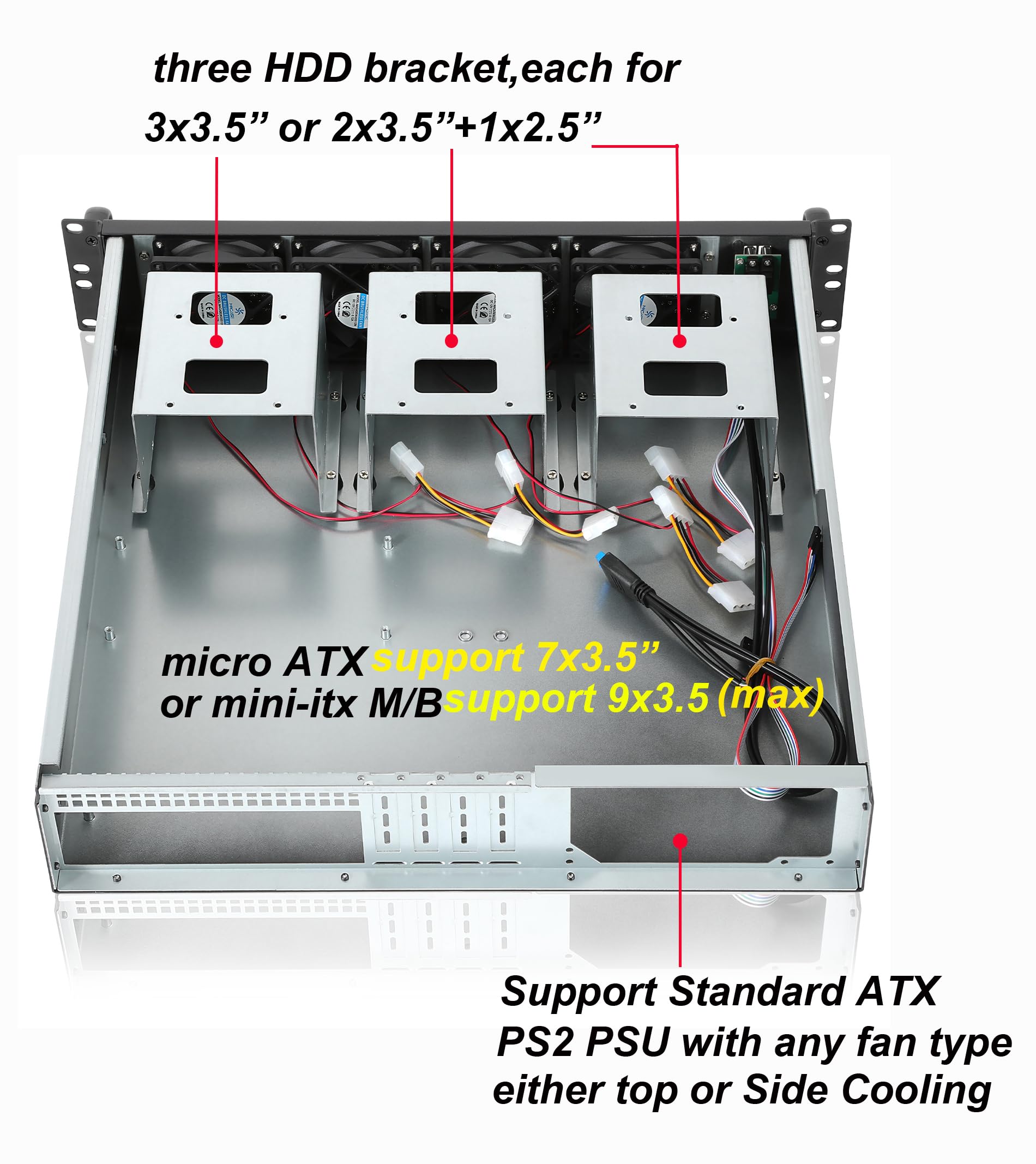

Support Max 9x3.5"
1) Supports 9x3.5" when using Mini-itx mother board
2) Supports 7x3.5" when using Micro ATX mother board
Unique design supports ATX PSU with different types cooling fans
1) Support ATX PS2 PSU with top/bottom 120mm fan
2) Support ATX PS2 PSU with 80mm side fan
The shorter version depth=15.7"
If need shorter version, please select ASIN B0CH3JXKZF
