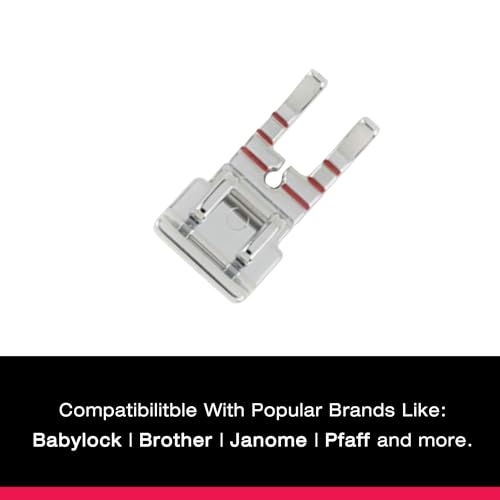

Fits Most Low-Shank Sewing Machines
Compatible with the SINGER C1, C3 Series
C1: 2010 Superb, ET-1 Perfect Finish, H74, 9340, 9100 Professional. C3: Curvy Series: 8763, 8770, 8780, 5625 Stylist II, 8768 Heritage, 2009 Athena, Singer One & One Plus, 160 Anniversary Machine, 70 Jo-Ann Fabric Anniversary Machine, Confidence 7400 Series including 7467S Confidence Stylist, 7469 Confidence, 7469Q Confidence Quilter, 7470, 7256 Fashion Mate, 7258 Stylist, 7285Q Patchwork, S800 Fashionista.
Additional Tips and Information for successful sewing with the SINGER ¼ inch Presser Foot
A Quarter Inch Foot is vital to creating precise ¼ inch seam allowances when piecing quilt tops together.
The Quarter Inch Foot is most often used for quilt piecing. The foot will help you sew and create 1/4 inch seam allowances. Quarter inch seam allowances are also used when sewing many small projects such as crafts, doll clothes and more.

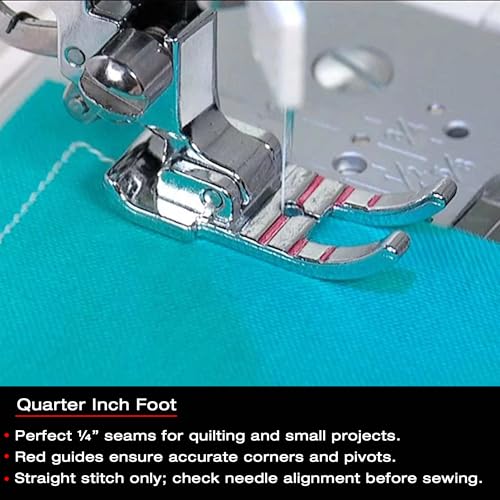

This foot has various markings on the surface to aid with pivoting at corners.
The Quarter Inch Foot is used for straight stitch sewing only and is perfect for 1/4 inch seams.
Accurate 1/4 inch seam allowances are achieved with the Quarter Inch Foot because the distance from center needle opening to the right hand edge of the foot is 1/4 inch.
Instructions on using the Quarter Inch Foot
When using the Quarter Inch Foot first check to be sure your SINGER sewing machine is set to straight stitch, center needle position. Turn the handwheel toward you slowly and check to see thatthe needle clears the small opening in the foot. If it does not clear the small opening, use the stitch width control to move the needle until it lines up with the hole of the foot without hitting the foot.

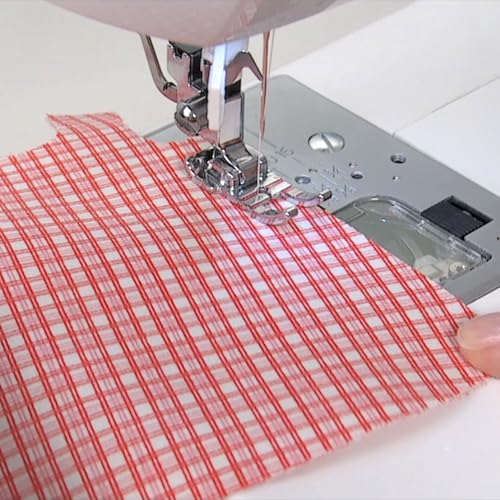

Place your fabric under the presser foot and align the raw edge of the fabric with the right hand side of the presser foot for an accurate 1/4 inch seamline. As you begin sewing, hold the thread tails at the back of the foot to keep them secure and prevent thread tangling.
Instructions on using the Quarter Inch Foot when Pivoting
The Quarter Inch Foot has horizontal markings for multi-purpose uses in sewing. The horizontal marking closest to the front of the Quarter Inch Foot is a 1/4 inch guide useful when pivoting at a seamline corner with a 1/4 inch seam allowance.
To pivot using the guideline at the front, sew your seam up to the corner, but stopping when the edge of the fabric aligns with the 1/4 inch horizontal guideline.
Then, put the needle down in the fabric. With the needle down in the fabric, raise the presser foot, turn the fabric to sew the remainder of the seam, aligning the raw edge of the fabric with the righthand edge of the presser foot. Lower the presser foot then continue sewing a 1/4 inch seam.
The remaining two horizontal markings can also be used for pivoting. The center horizontal mark is used for a 3/8 inch seam and the horizontal mark closest to the needle opening is used for a 1/2 inch seam.
