SmartiPi Touch Pro for Raspberry Pi 3,4, and 5 (Large - Without External Micro SD Card Access)

Brand: Smarticase

(199 votes)

Seller: N/A

Sell on:

Amazon US

SmartiPi Touch Pro for Raspberry Pi 3,4, and 5 (Large - Without External Micro SD Card Access)

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$60.49

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Style:

Small - With external micro SD card access

Small - Without external micro SD card access

Large - With external micro SD card access

Large - Without external micro SD card access

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

Works with the Official 7" Raspberry Pi display and Raspberry Pi 3,4, and 5
Includes a cooling fan with rubber vibration mounts
Raspberry Pi, Raspberry Pi camera, and Raspberry Pi display not included
Weighted base
Works with Raspberry Pi HAT boards and has secondary mounting points for your own development board
Not compatible with Raspberry Pi Touch Display 2

Product Specifications

Item model number: STPLB
Item Weight: 1.56 pounds
Package Dimensions: 8.54 x 6.02 x 3.31 inches
ASIN: B08VSFZDDT
Date First Available: February 4, 2021
Compatible Devices: Raspberry 3,4 and 5
Fan Count: 1
Manufacturer: Smarticase
UPC: 850010058030

Product Information

Product description

Works with the Official Raspberry Pi display

Works with the official Raspberry Pi 7" touchscreen display

The SmartiPi Touch Pro is a case for the official 800 x 480 Raspberry Pi 7" Touchscreen display manufactured by the Raspberry Pi foundation and the Raspberry Pi 3,4 and 5. One power input in the back powers both the Raspberry Pi and the Official Pi display, creating a small all in one computer. There is even a spot for the Official Raspberry Pi camera V1,V2, or V3. Not compatible with Raspberry Pi HQ camera.

Not compatible with the 720x1280 Raspberry Pi Touch Display 2.

USB-C power supply required if using Raspberry Pi 4 or 5. Micro USB power supply required if using the Raspberry Pi 3

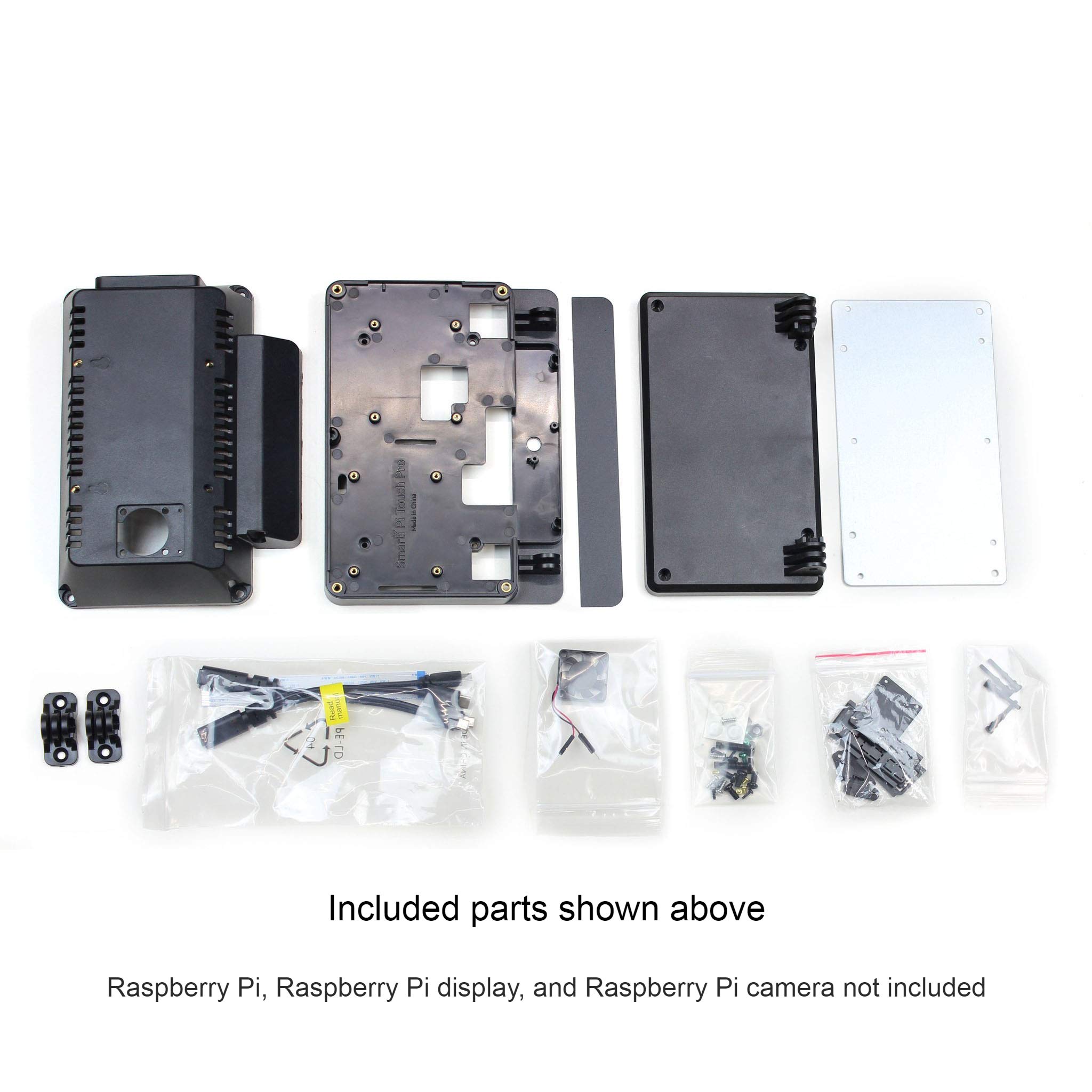

The Raspberry Pi, Raspberry Pi camera, and Raspberry Pi display are not included and must be purchased separately.
Once assembled, the SD card, HDMI port, and audio jack are not accessible from outside the case. You can plug in a HDMI or audio cable into the Raspberry Pi inside the case and then run the wire outside the case.

	SmartiPi Touch Pro (Large)	SmartiPi Touch Pro 2 (Large)	SmartiPi Touch 2	SmartiPi Touch Pro 3 (Large)
Display compatibility	Official Raspberry Pi display	Official Raspberry Pi display	Official Raspberry Pi display	Official Raspberry Pi display 2
Steel reinforced base	✓	✓	no data	✓
Cooling fan	✓	✓	✓	Optional accessory
Compatibility	Raspberry Pi 3,4 and 5	Raspberry Pi 4 and 5	Raspberry Pi 3,4 and 5	Raspberry Pi 3,4 and 5
Port blocking option	✓	✓	no data	✓
Raspberry Pi camera mount	On bottom of display	On bottom of display	On side of display	On bottom of display
Extra room inside for your own components	Yes, extra space inside the case	Yes, extra space inside the case	As a separate back cover accessory	Yes, extra space inside the case
External micro SD card access	No	Yes	No	Yes

Key features

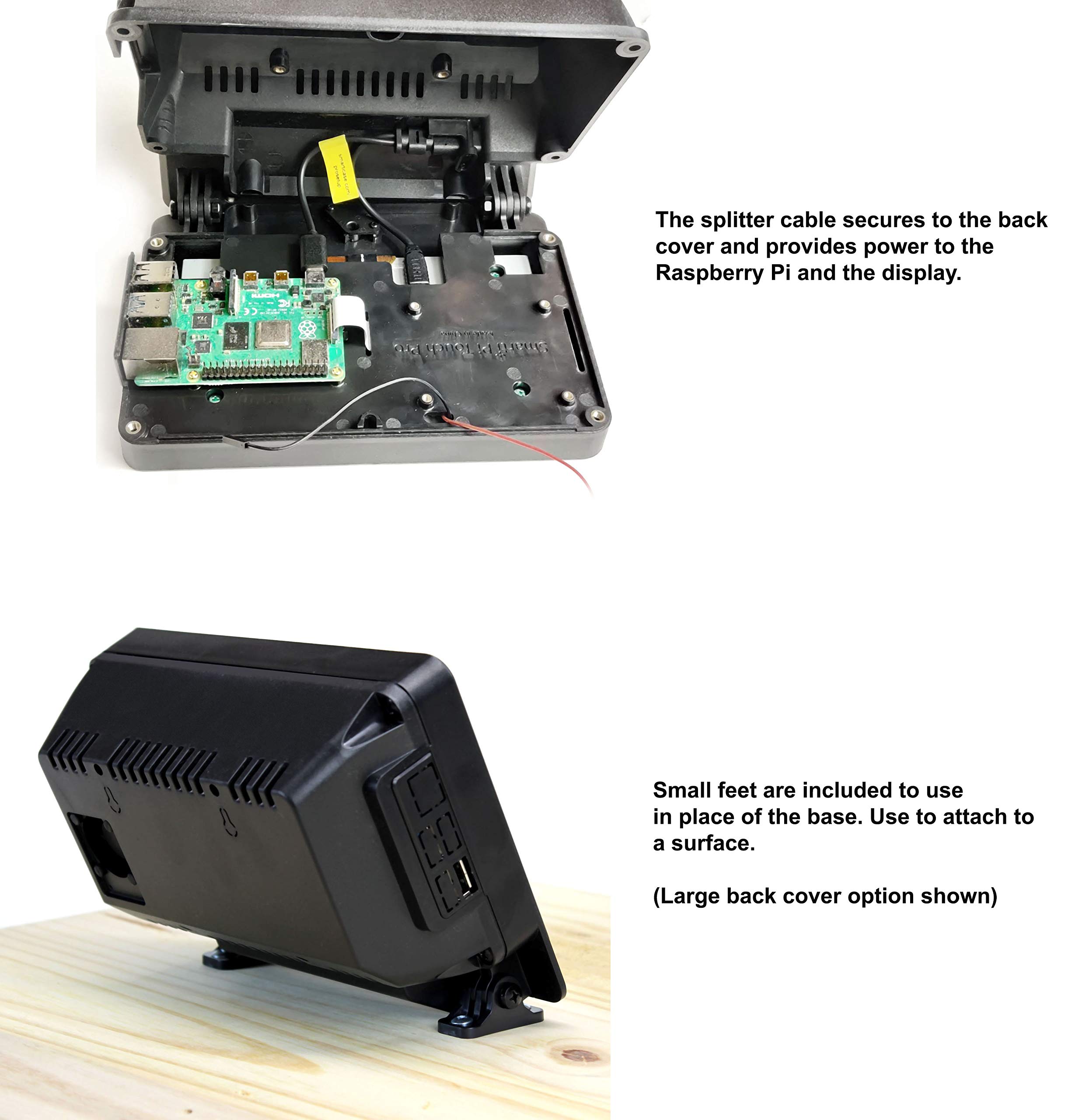

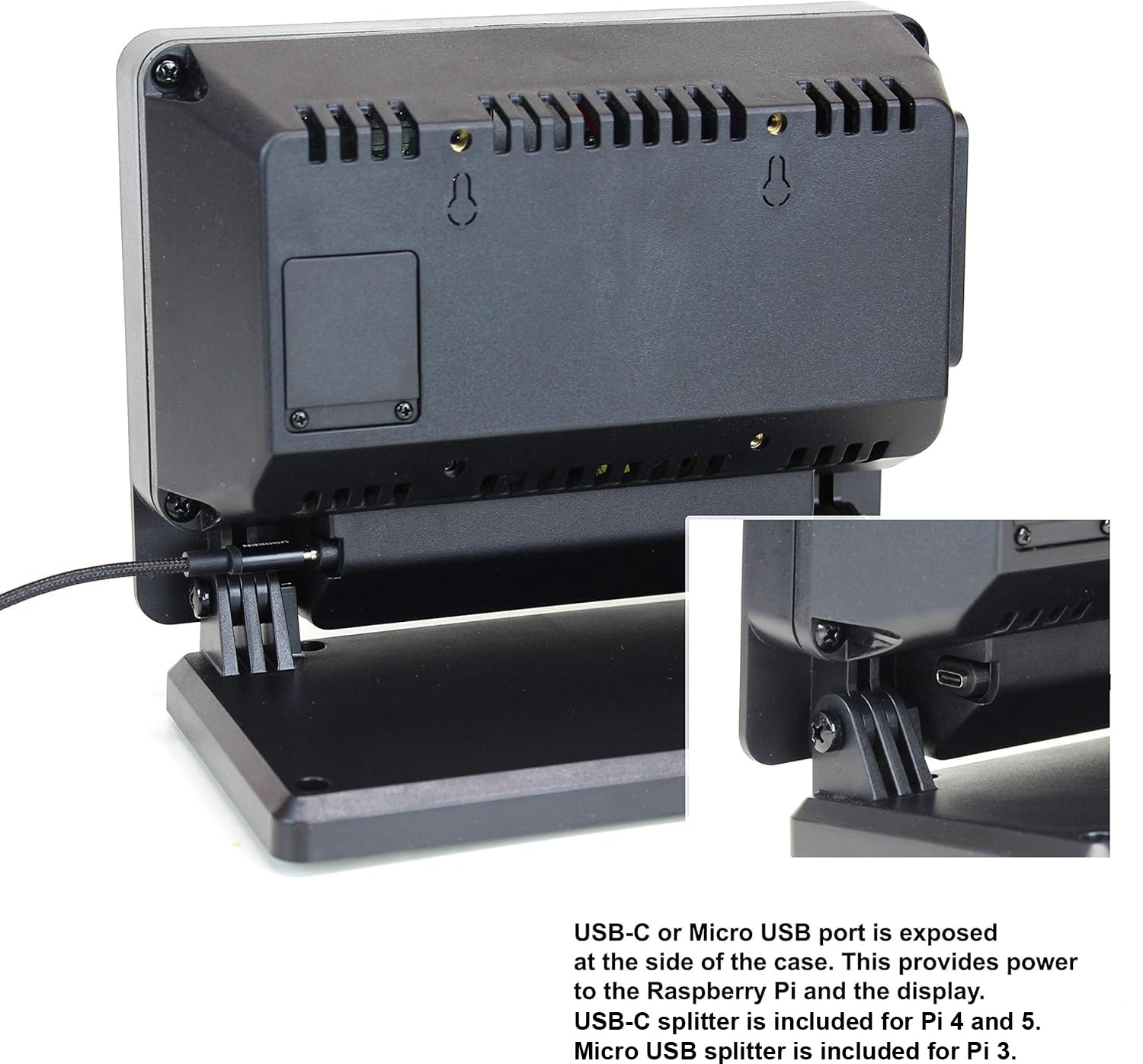

Single power port to power the display and Raspberry Pi

Single power input

A USB-C power input for the Raspberry Pi 4 and 5 is included. A micro USB power input for the Raspberry Pi 3 is included.

Cooling fan with rubber vibration mounts included

Cooling fan with vibration mounts is included

The cooling fan mounts to the case with rubber mounts to keep the fan quiet.

Cooling fan hole ban be covered with panel

The fan hole can be covered

The fan opening can be covered with the included panel to hide the opening. This panel could be used to route wiring out of the case.

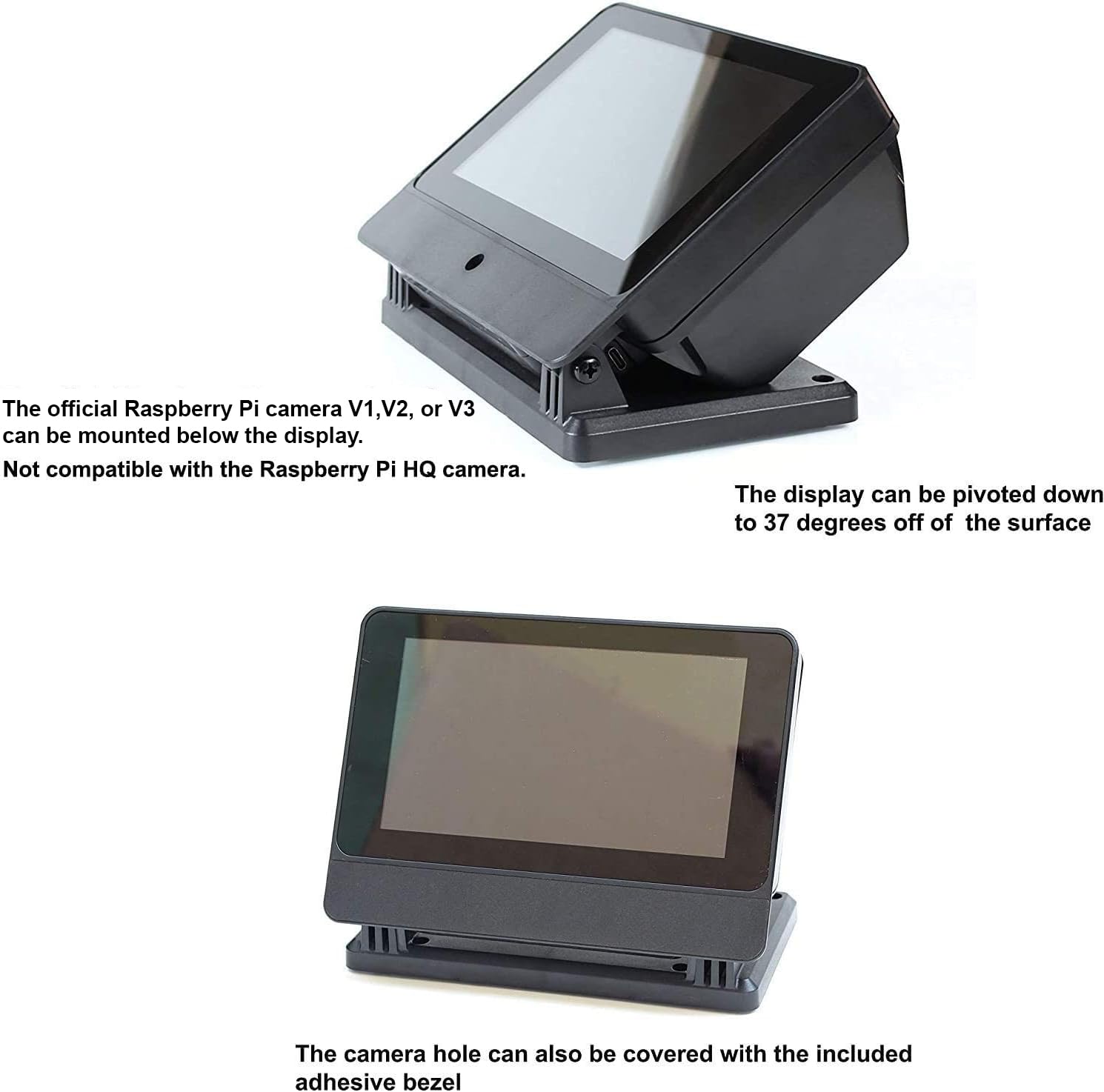

Raspberry Pi official camera mount

The Raspberry Pi official camera V1, V2, or V3 can be mounted below the display. A camera cable for use with Raspberry Pi 3 or 4 is included. If using a Raspberry 5 you will need to purchase a camera cable separately.

Key features

75mm VESA mounting points

75mm VESA mounting points on the back cover. (M4 threads) Wall eyelets can be cut out with a utility knife

Camera hole can be covered

The camera hole can be covered completely with the included adhesive panel

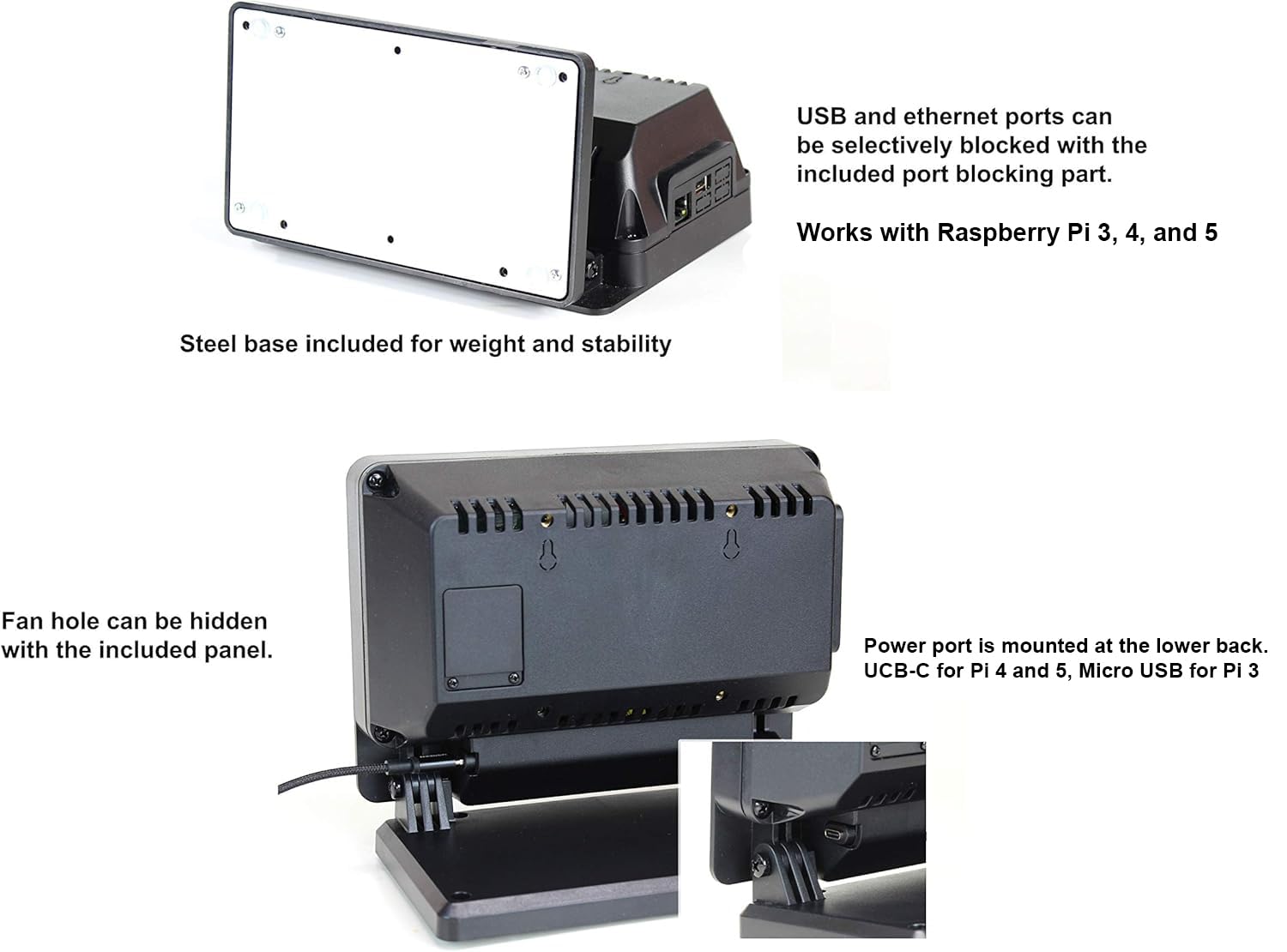

Port blocking option

The Raspberry Pi ports can be covered with the included port blocking part. One is included for Raspberry Pi 3 and 5 and one for Raspberry Pi 4. The openings can be cut with a utility knife.

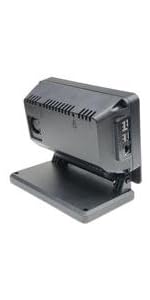

Steel base with rubber feet

A steel reinforced base is included and includes non slip rubber feet

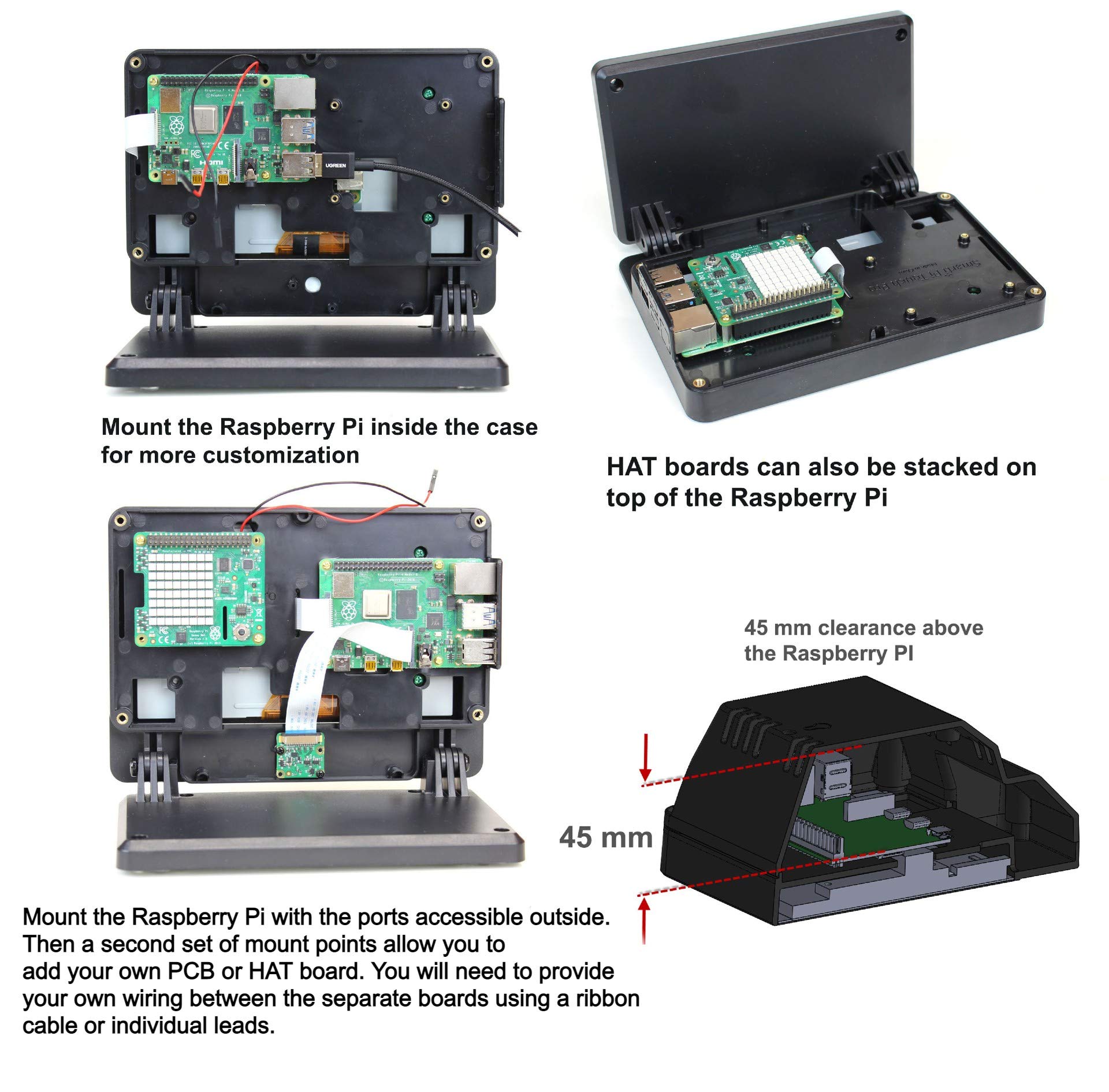

Extra room inside for your own customization

Mount the Raspberry Pi inside to hide USB cables

There are two 49mm x 58mm ,M2.5 mounting points inside the case. The Raspberry Pi can be mounted to either mounting point. When mounted internally, USB cables/peripherals could be hidden inside the case.

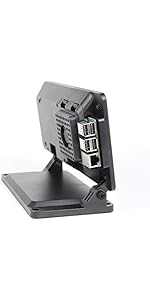

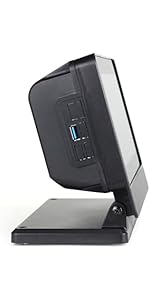

Mount the Raspberry at the edge to access ports

When the Raspberry Pi is mounted at the side of the case, the ports are accessible on the side. Then HAT boards or your own PCB can be mounted to the other 49mm x 58mm , M2.5 mounting points. You would need to connect the boards together with ribbon cables or leads. Once assembled, the SD card, HDMI port, and audio jack are not accessible from outside the case. You can plug in a HDMI or audio cable into the Raspberry Pi inside the case and then run the wire outside the case.

HAT boards can be stacked on top of the Pi

HAT boards can be stacked on top of the Raspberry Pi . You will need to provide M2.5 screws to secure it to the standoffs. The standoffs to secure the Pi to the case are included with the display.

The case has plenty of room inside for your own electronics or other components

The case has 45mm of clearance above the surface of the Raspberry Pi. The extra room inside this case allows you to experiment with different HAT boards or add you own hard drive, batteries, or other PCB boards inside the case. Plenty of room to experiment with your own electronics inside. The case is made out of ABS plastic , so you cut or drill it to run wires or add other connectors.
