Sonnet M.2 4x4 Silent PCIe Card (Four M.2 NVMe SSD Slot)

Install up to Four M.2 NVMe SSDs into a PCIe Card Slot – Ultra-speed Data Transfers!

Add your own SSDs up to 32TB

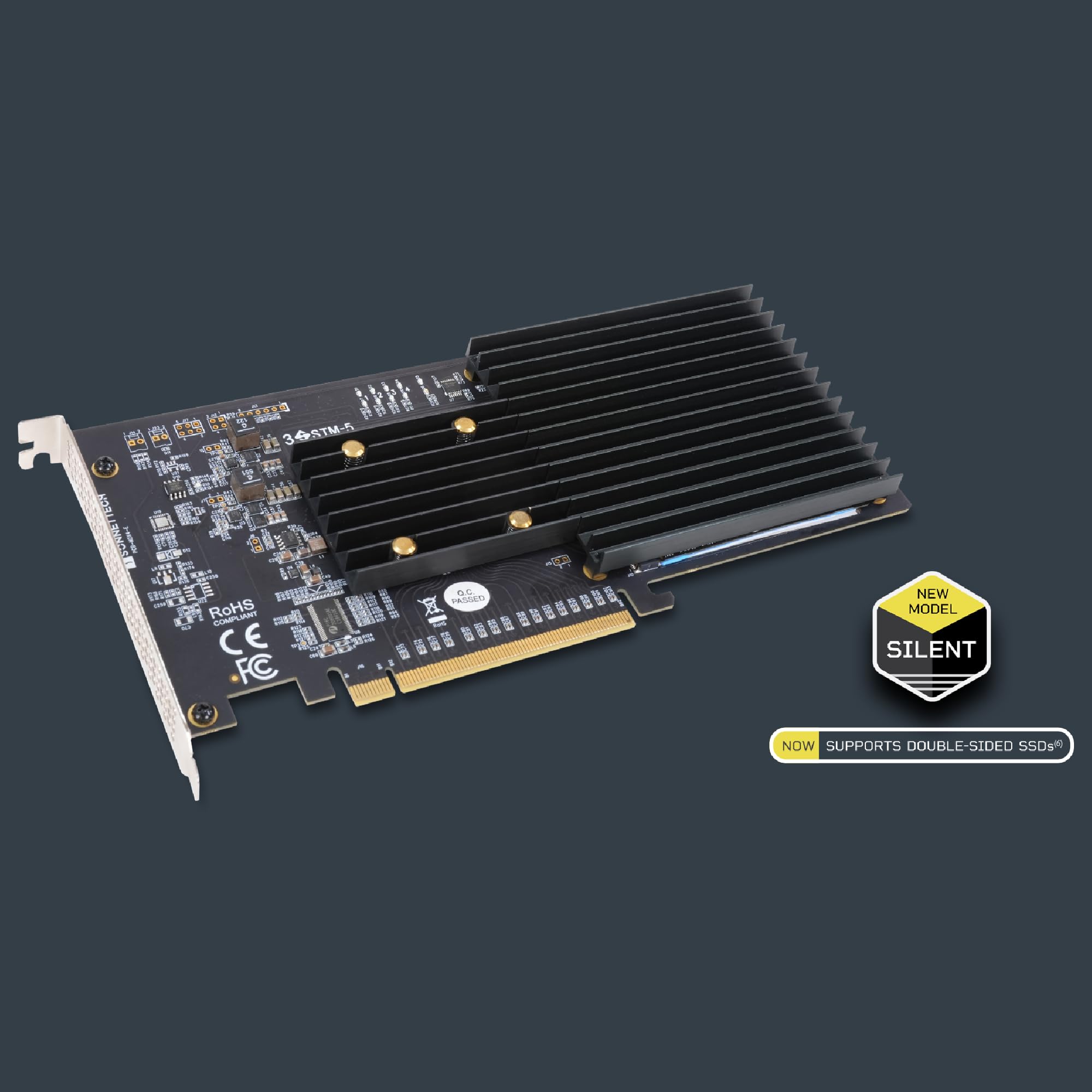

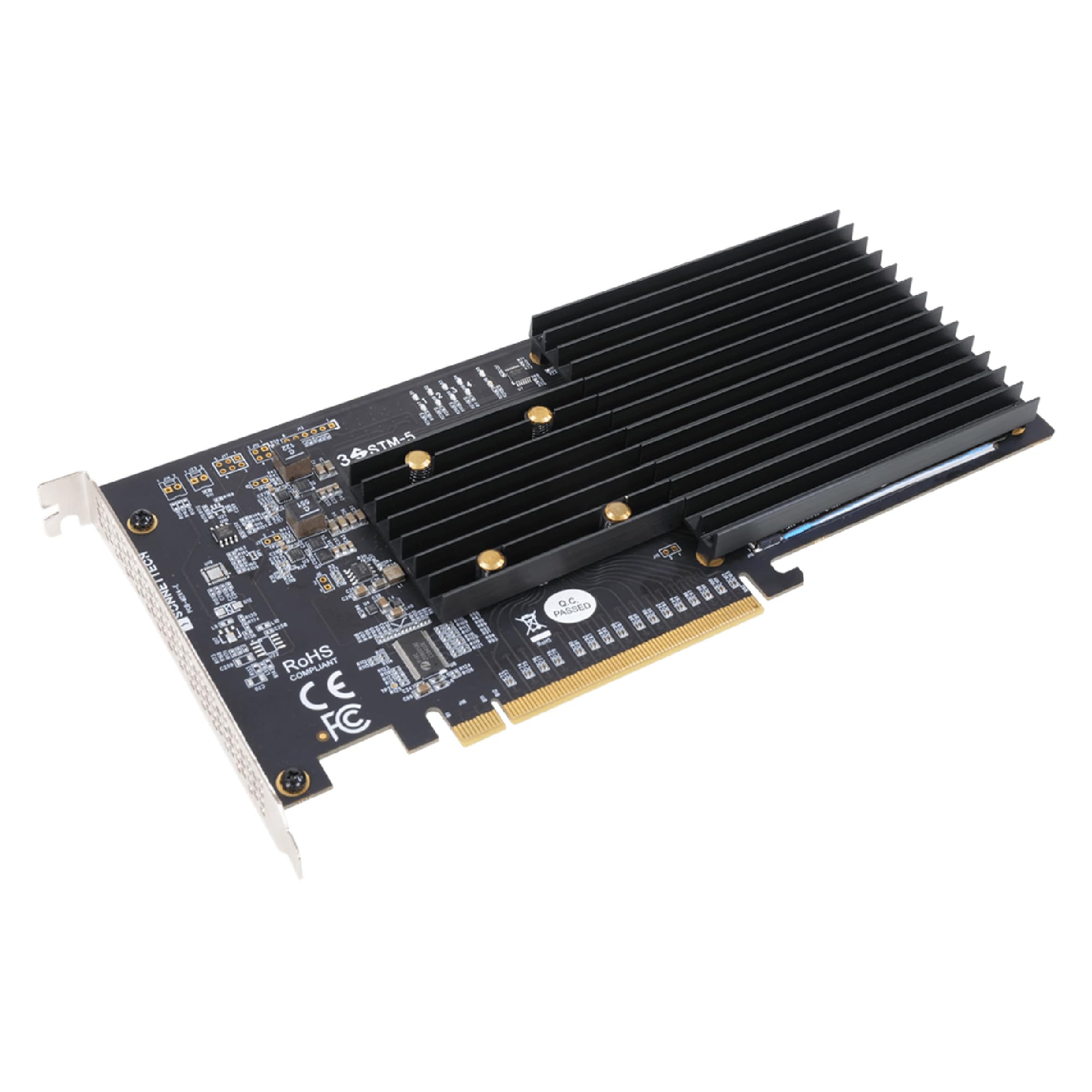

NEW - Silent Model - Now Supports Double-sided SSDs

If you need to add internal storage to your computer and ultra high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Individually, M.2 NVMe PCIe SSDs offer tremendous performance, but Sonnet’s M.2 4x4 PCIe Card enables you to mount up to four of them into a single x16 card slot.

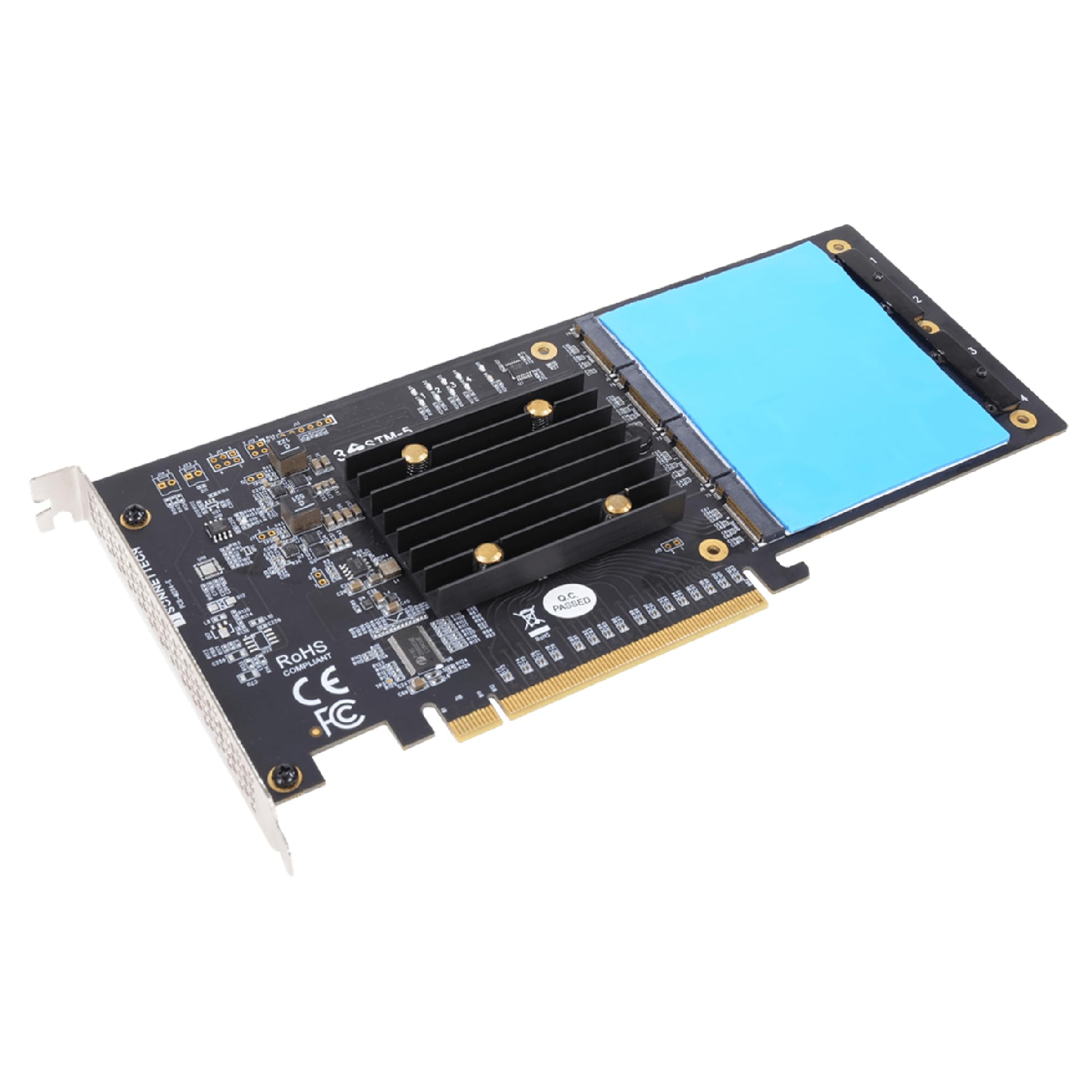

Sonnet’s M.2 4x4 PCIe card is a full-height, full-length PCIe 3.0 card with a 16-lane (x16) interface, designed to support full performance from four SSDs. Unlike “similar” adapter cards, the M.2 4x4:

• Features a 16-lane (x16) and devotes four lanes of PCIe 3.0 bandwidth to every SSD you install (instead of limiting the x4 bandwidth to two SSDs at a time)
• Works with a wide variety of single- and double-sided M.2 PCIe SSDs
• Is self-contained and doesn’t require a specific motherboard to operate or specific SSDs to support RAID features; no PCIe bifurcation required

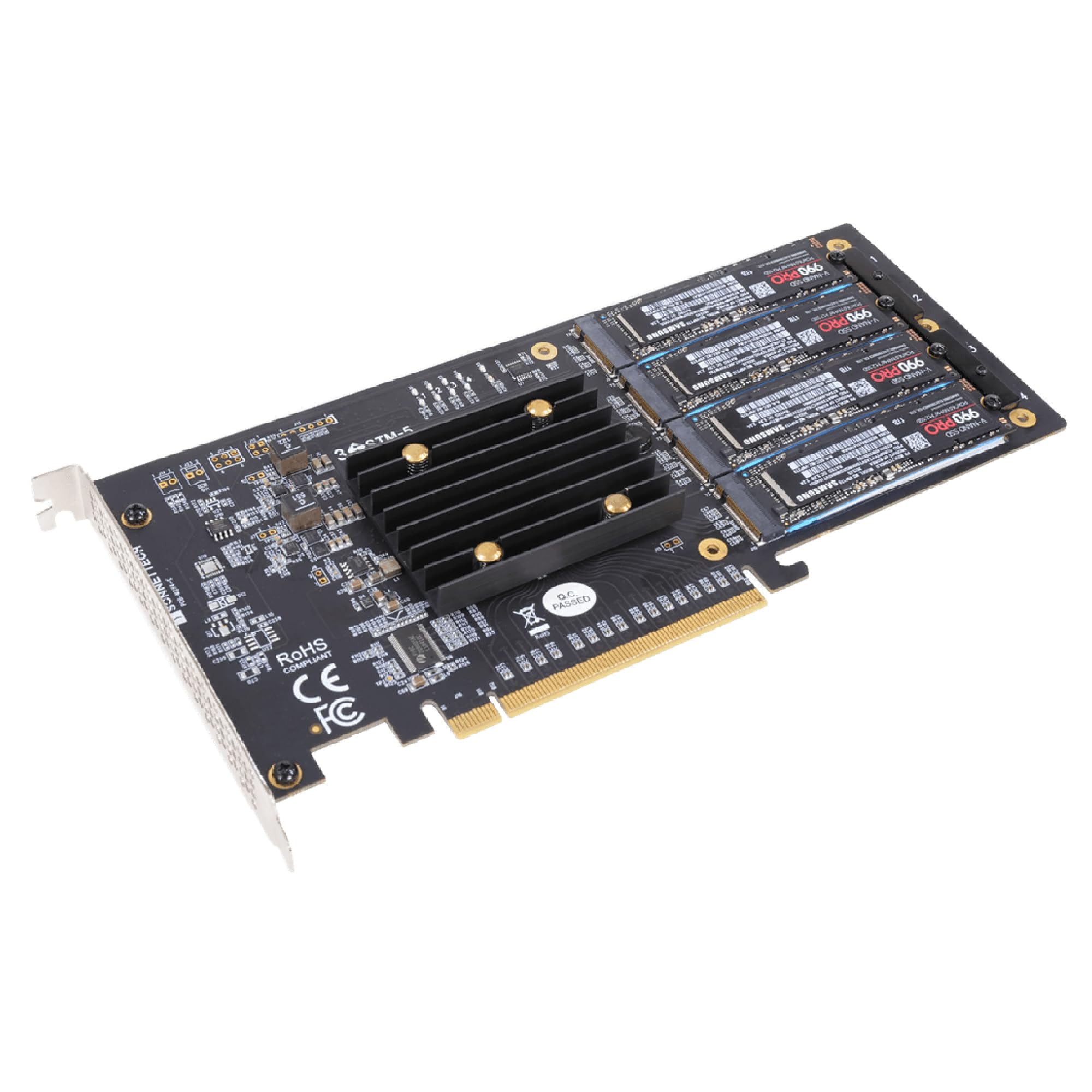

Install Four M.2 NVMe PCIe SSDs in a Single x16 card Slot

Mac, Windows, and Linux Compatible

Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro tower; Windows or Linux PC desktop or server; or Thunderbolt to PCIe card expansion system with an available x16 PCIe slot. Are you an Adobe After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer's onboard storage couldn’t keep up! Legacy Mac users can install macOS on one SSD to create an incredibly fast boot drive and create a RAID 0 set with the other installed SSDs and still obtain blazing-fast performance. No matter how you use it, this card can transform the way you work.
