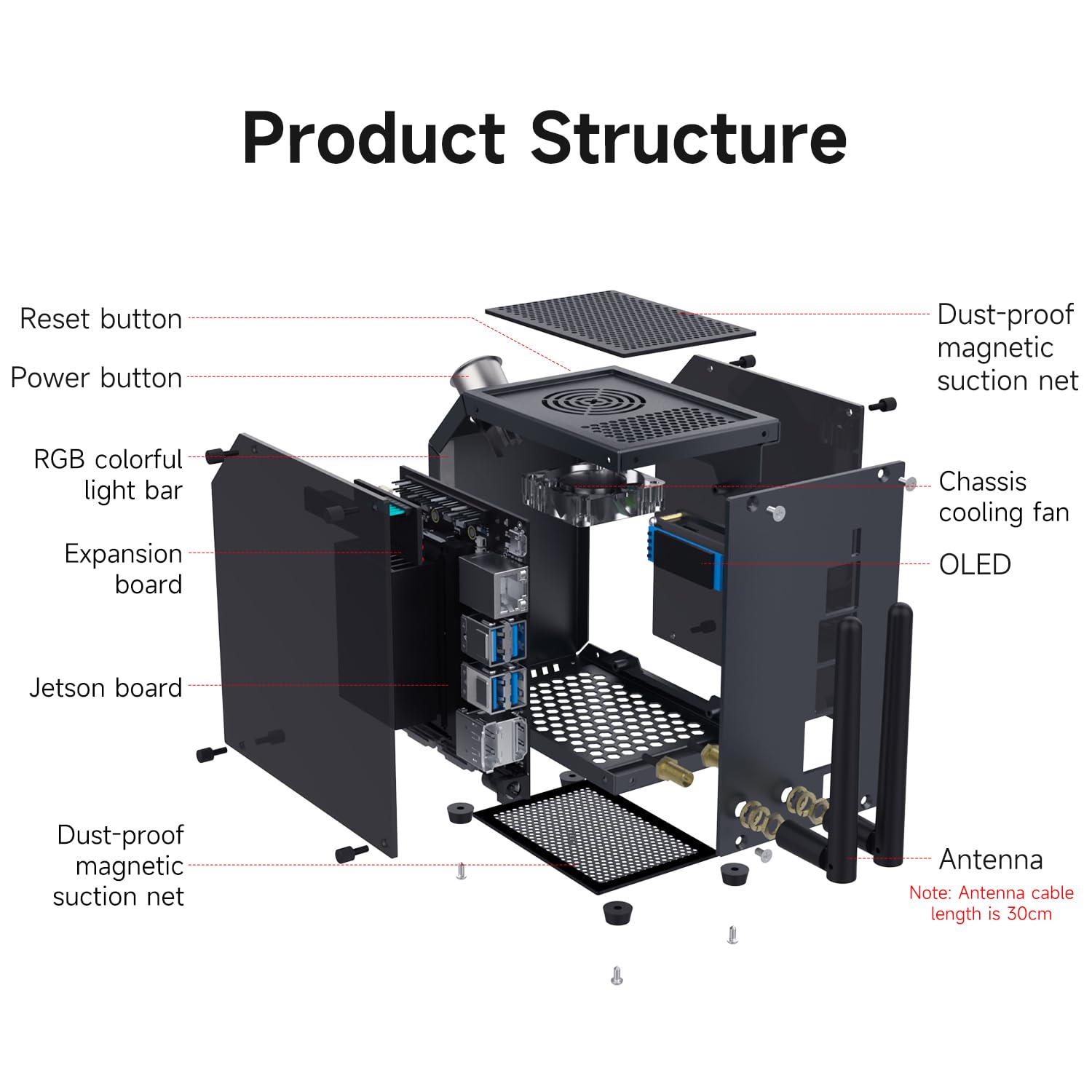

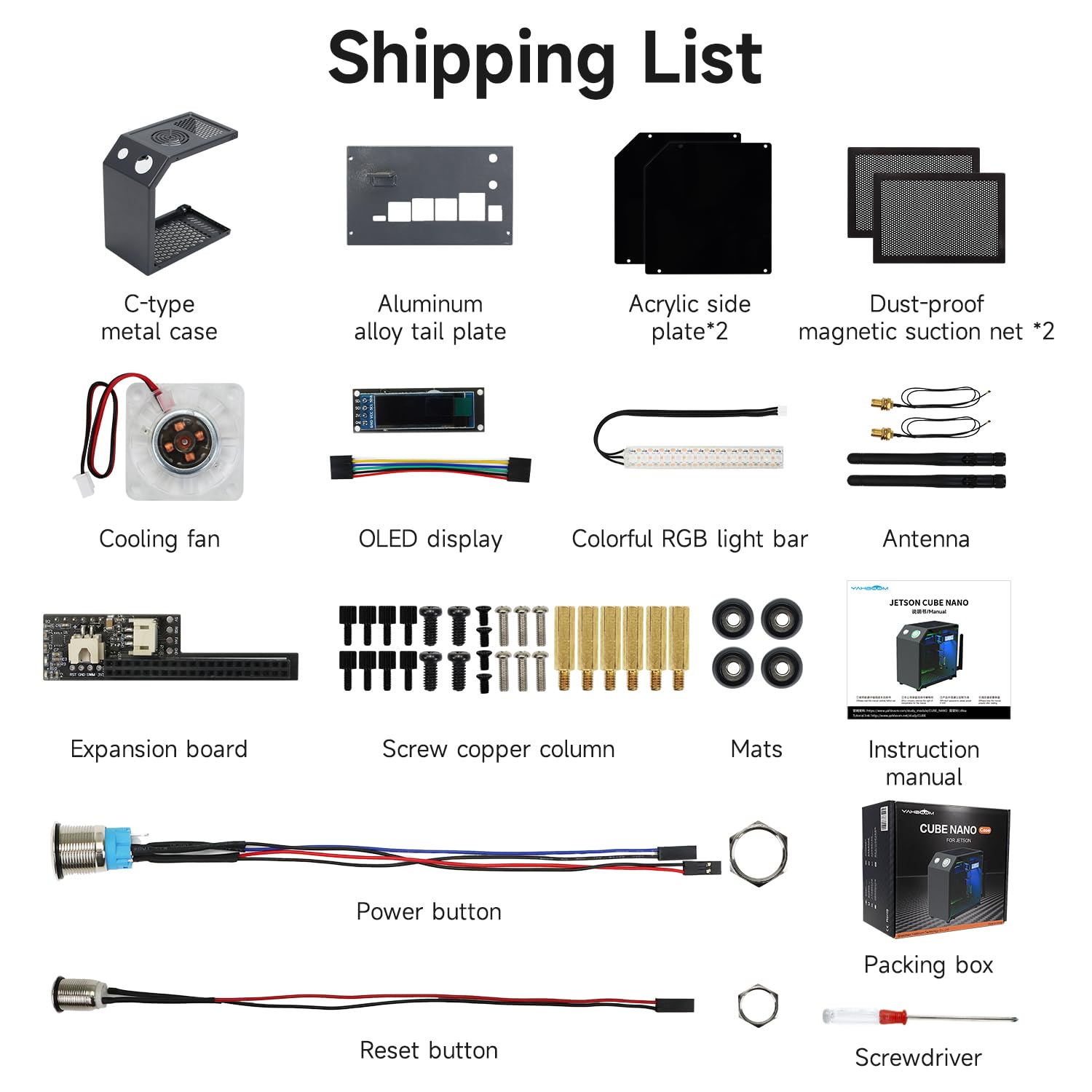

【Complete Accessories, Compatible with Multiple Development Boards】Yahboom CUBE nano case is compatible with NVIDIA's Jetson series development boards, including the Orin nano Orin NX SUPER, and Jetson Nano B01, etc. The case kit includes essential components such as the shell, antennas, cooling fan, RGB light strip, expansion board, and OLED display screen, providing a comprehensive package that allows you to get started immediately.

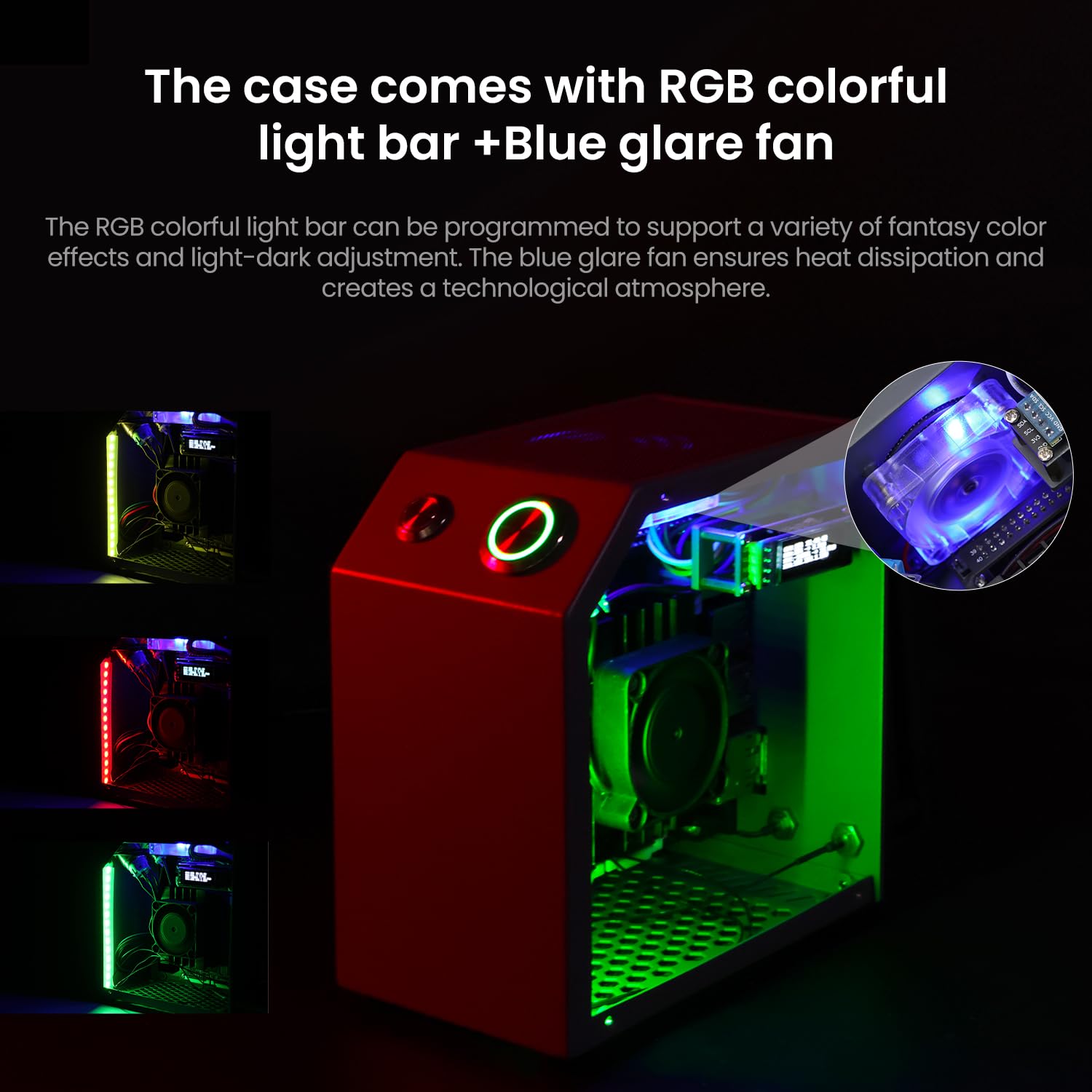

【Compact Mini Design with Decorative Lights】The metal shell of Yahboom is custom-designed for Jetson development boards, with interfaces that perfectly fit and support the installation of light fans and RGB light strips, making this case resemble a mini computer host case.

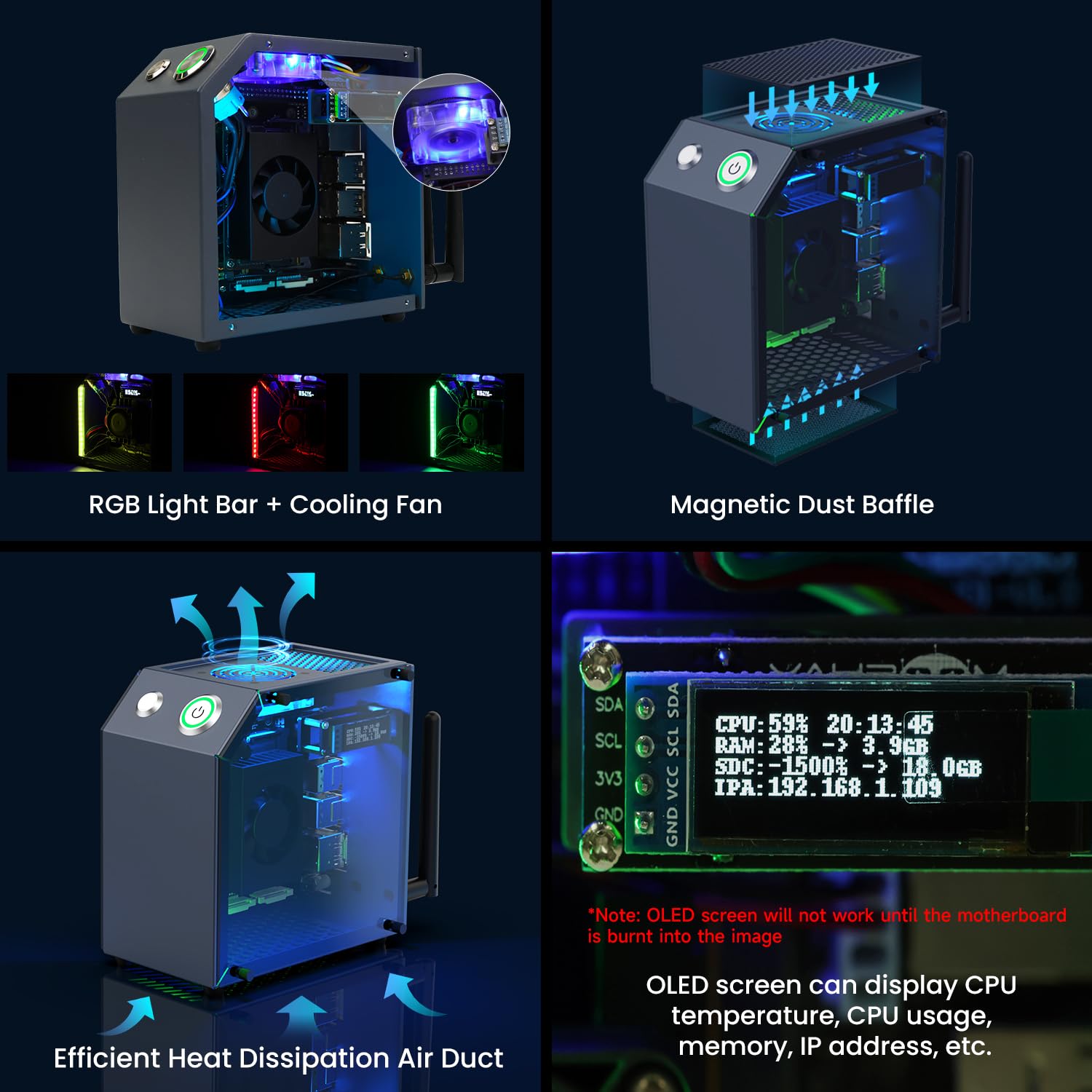

【Efficient Cooling and Dust Protection】With the dual-channel design and C-type metal cold-rolled plate as the main material, the case is not only sturdy and durable but also facilitates efficient cooling. The upper and lower magnetic suction plates effectively isolate dust, ensuring effective protection.
【Real-time Monitoring of Case Data】The expansion board reserves space for installing an OLED screen, which allows you to monitor real-time data such as the development board's temperature, CPU usage, disk space, memory, and IP address. This not only protects the development board but also makes it more convenient to use.
【Easy Installation】The case requires manual installation, and Yahboom provides installation videos, case driver materials, and online technical assistance to facilitate the process.

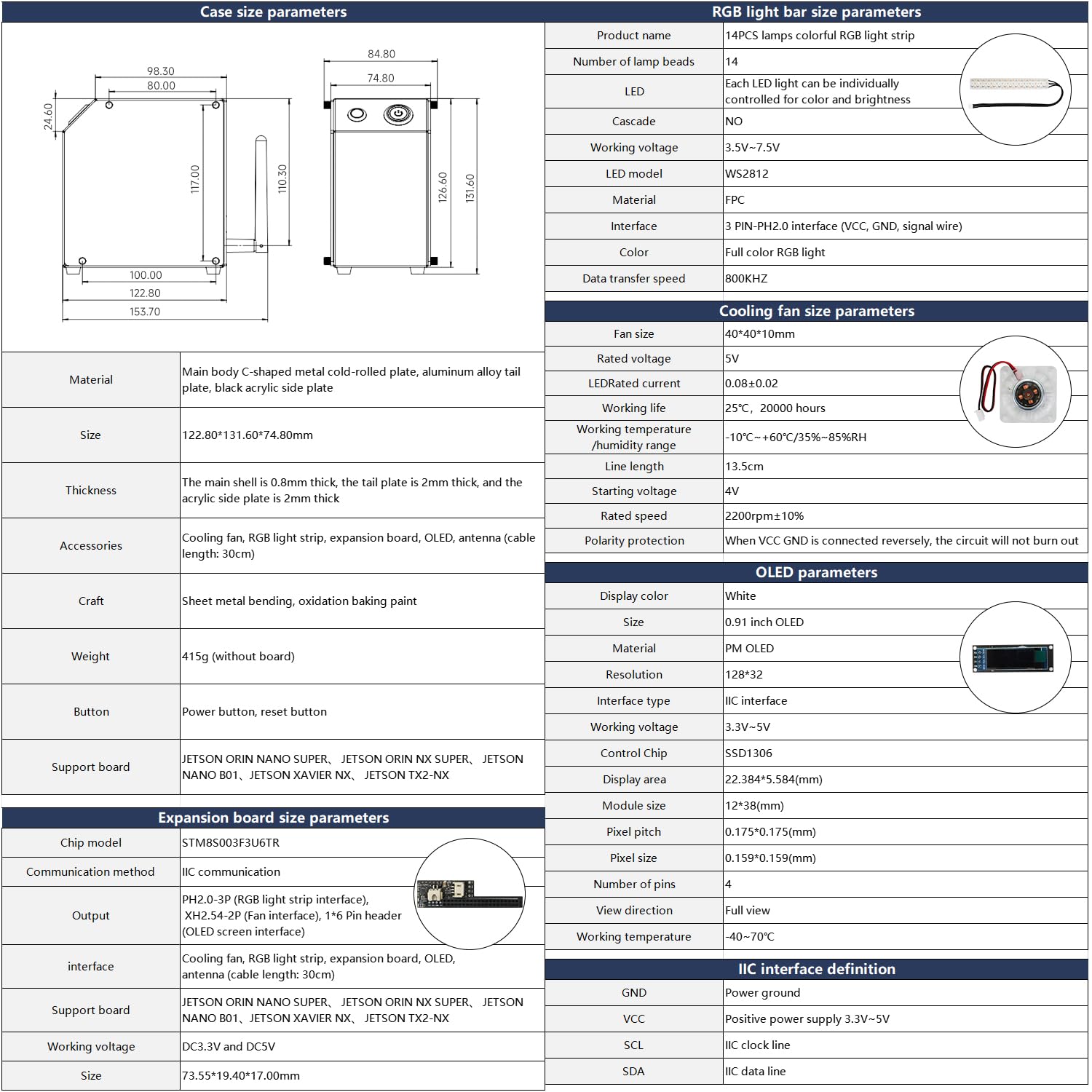

Product Specifications
Item Weight: 150 Grams
Package Dimensions: 6.97 x 6.22 x 3.82 inches
ASIN: B0CD71X8SV
Date First Available: July 31, 2023
Cooling Method: Air
Model Name: CUBE NANO
Light Color: RGB
Special Feature: mini, for orin nx, for orin nano, for jetson nano
Compatible Devices: jetson xaver nx, orin nx, orin nano, jetson tx2 nx, jetson nano
Manufacturer: Yahboom
Product Information
Product description
Cube nano case for Jetson Series Development Board Kit
Description

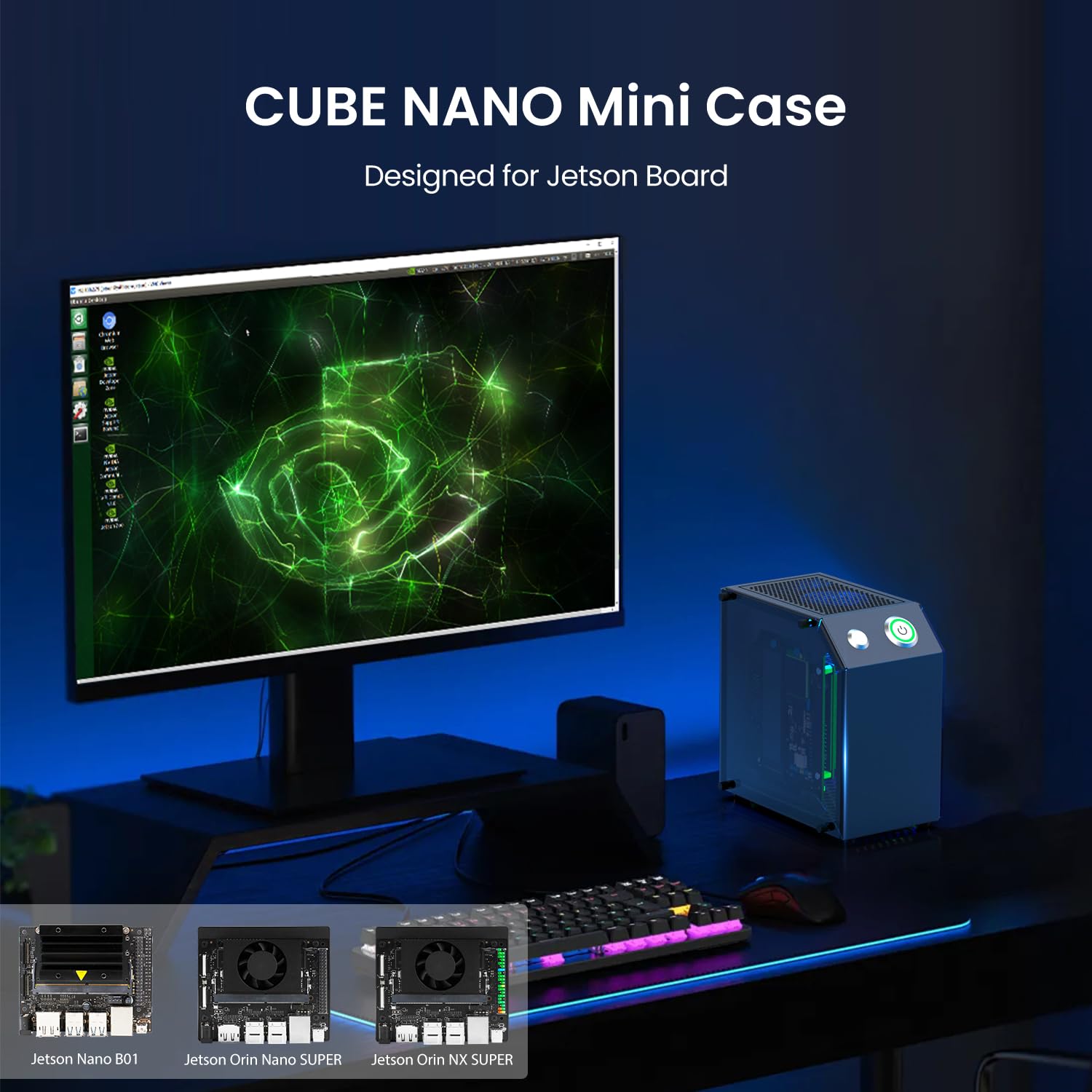

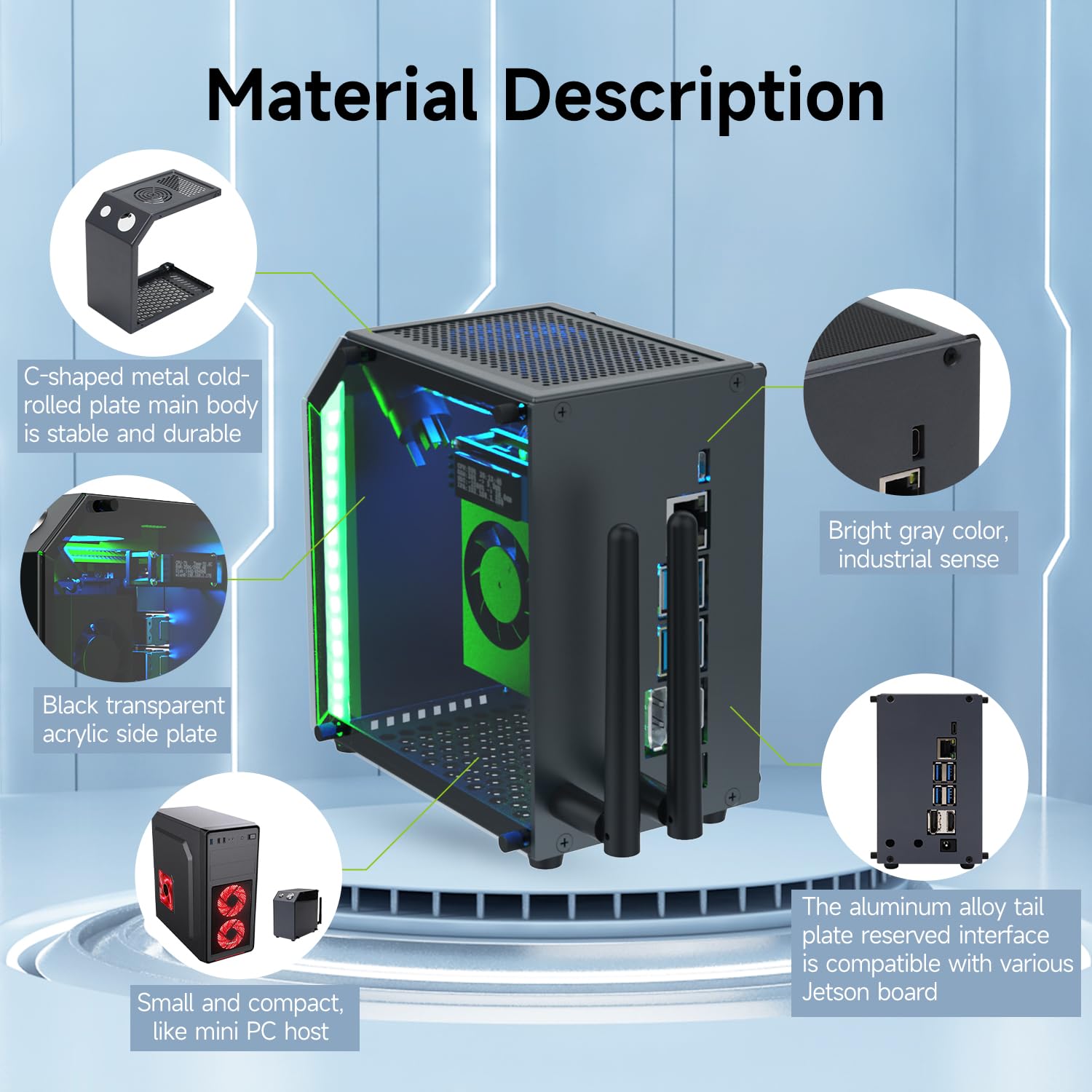

The CUBE NANO case is a protective case specially designed for NVIDIA Jetson development boards. Made of C-shaped metal cold-rolled plate and high-quality acrylic material, it provides comprehensive protection and stable support for Jetson boards. It looks like a mini computer case, with a built-in cooling fan, RGB colorful light bar, OLED display, and power and reset buttons. Compatible with JETSON ORIN NANO SUPER/JETSON ORIN NX SUPER/JETSON NANO 4GB.
Powerful protection function: It can effectively prevent the Jetson development board from being damaged by external collisions, dust or other substances, and prolong its service life.
Perfect transparency + OLED real-time display: The side is made of translucent acrylic material, so that you can clearly see the working status of the development board.

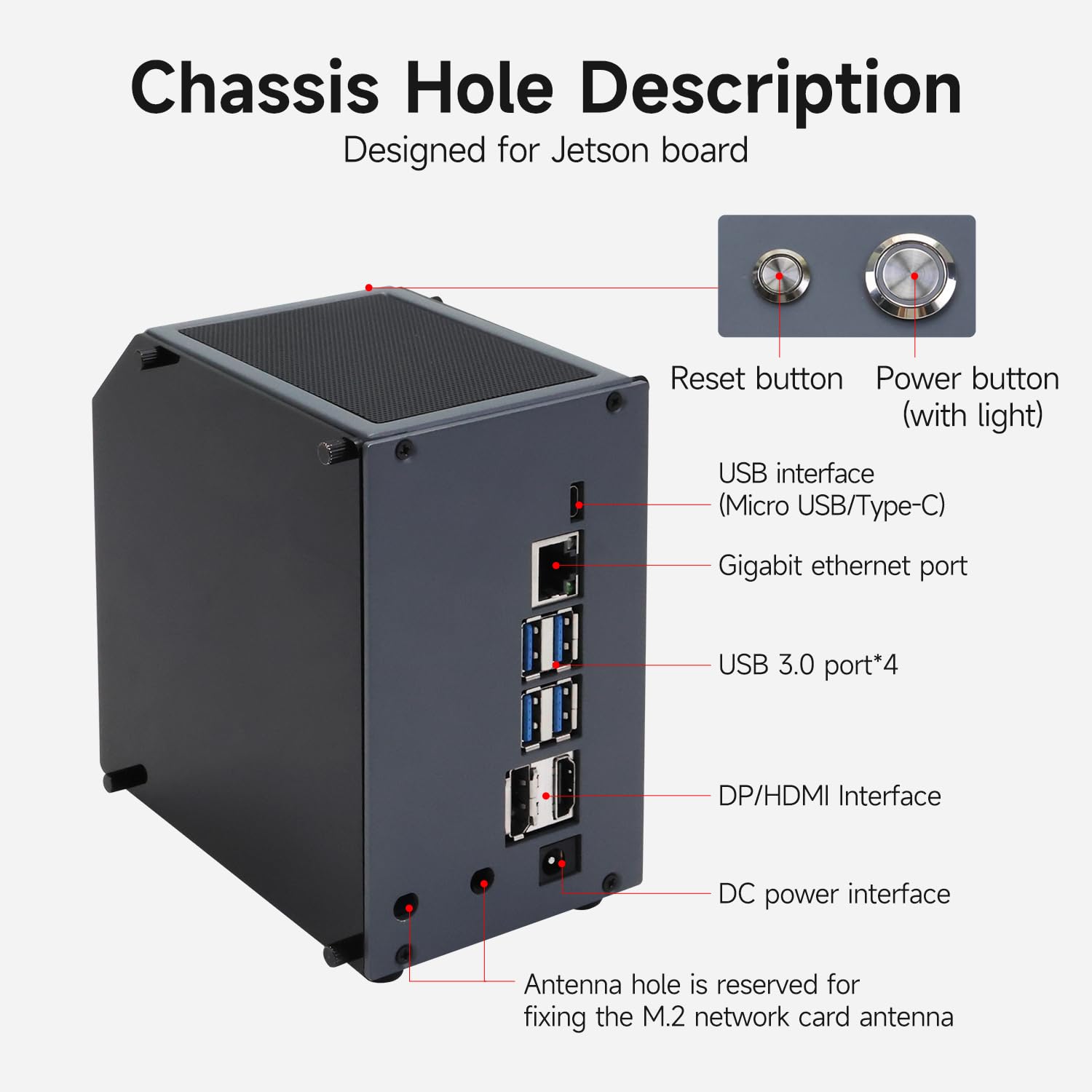

Convenient interface: The holes at the rear of the case correspond to the Jetson development board one by one, and the device can be plugged and unplugged without removing the case.
Exquisite heat dissipation design: There are upper and lower double-pass cooling air ducts to ensure that the development board always maintains a stable working state during high-load computing.
