zdyCGTime Balun HD Cat5 RJ45 to BNC Video Baluns transceiver Passive with Power Connector for 720P 1080P 3MP 4MP 5MP 8MP HD-CVI/TVI/AHD/CVBS/960H Camera(2 Pairs)

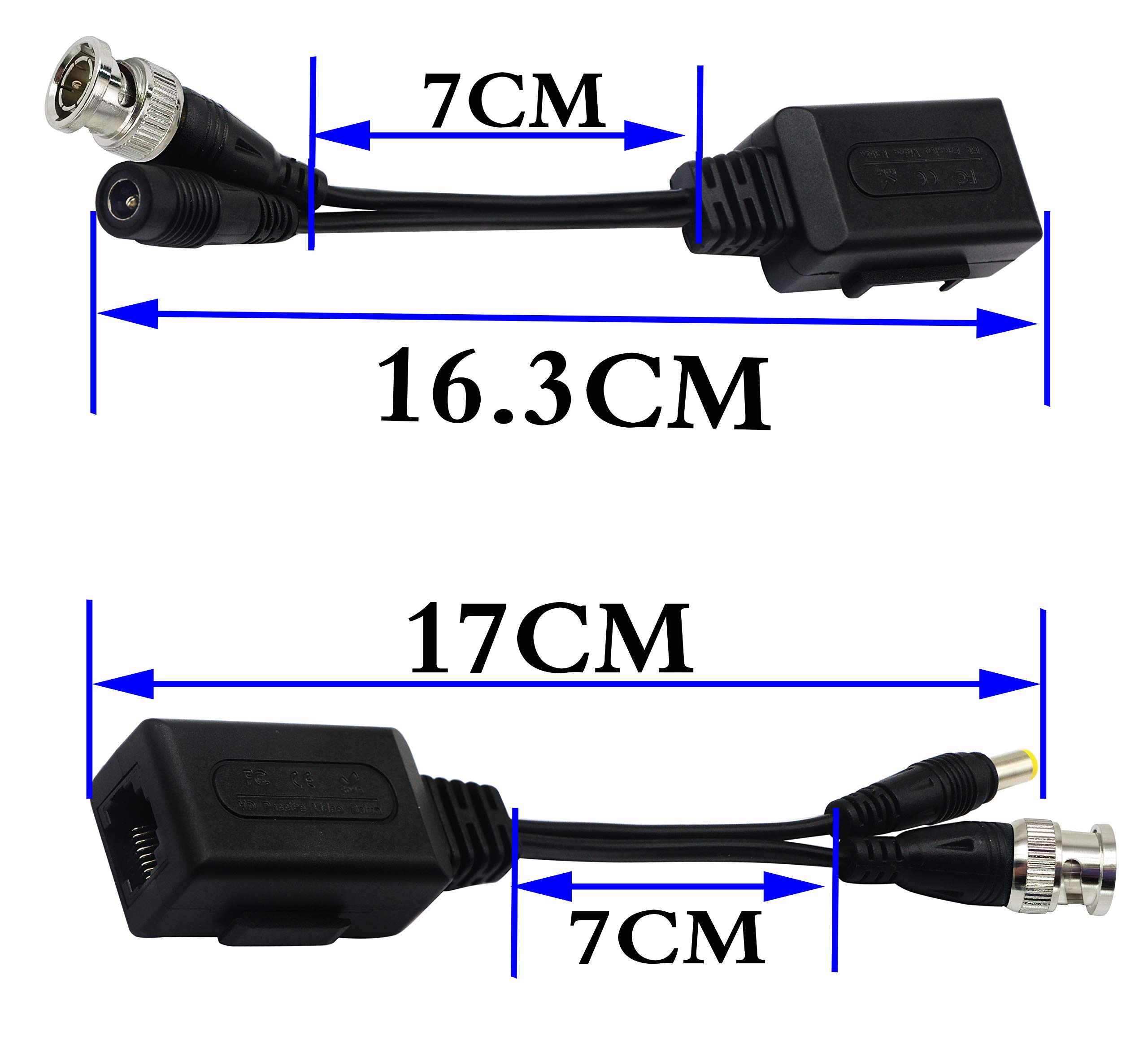

Size:(16.3CM) and (17CM)
Colour:(black)

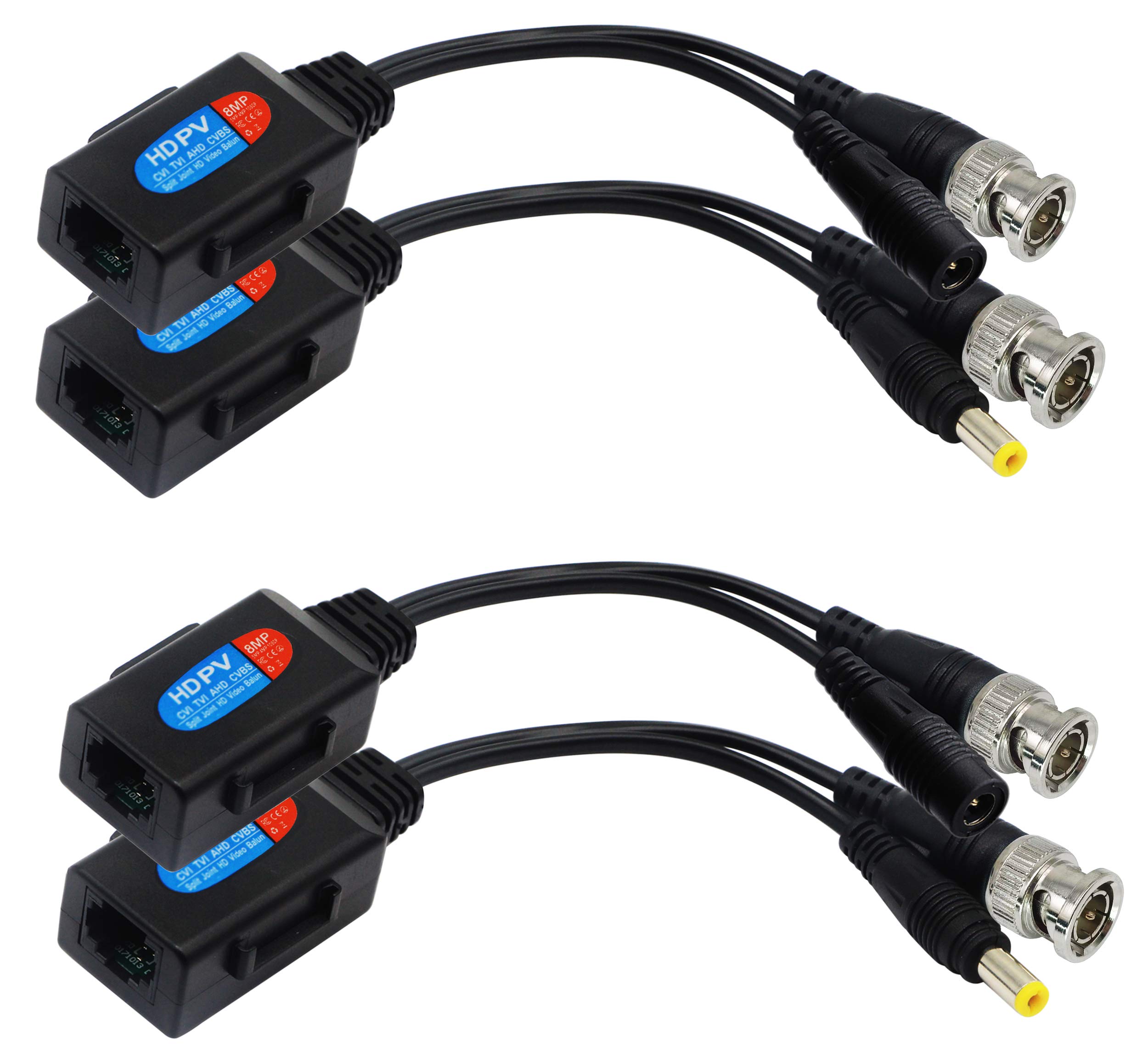

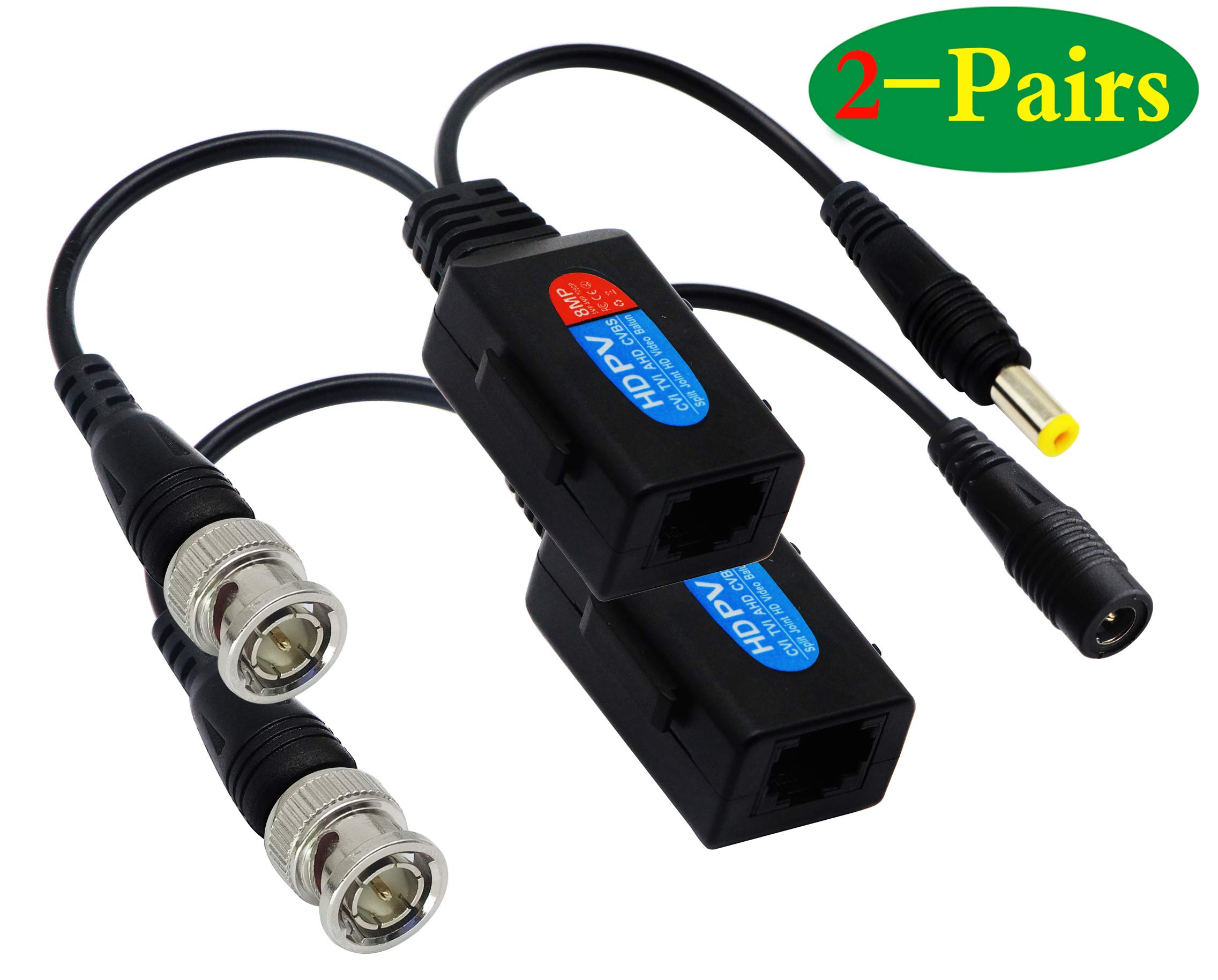

Package Quantity:(2 PAIRS)
Material:plastic+metal Features: Balun HD cat5 female to BNC male video baluns+DC 5.5 x 2.1mm female /male jack adapter cable

This video baluns will allow you to transmit power and video over CAT5 cable up to 1,000ft. Just use standard RJ-45 connectors on the ends of the CAT5 cable. These baluns have RJ-45 plugs built right in.
Video transmission distance
A Maximum distance length：(CVI/AHD/TVI)(1080P 3MP 4MP 5MP 8mp:200 m/656ft ) (720P 960P :250 m/820ft )

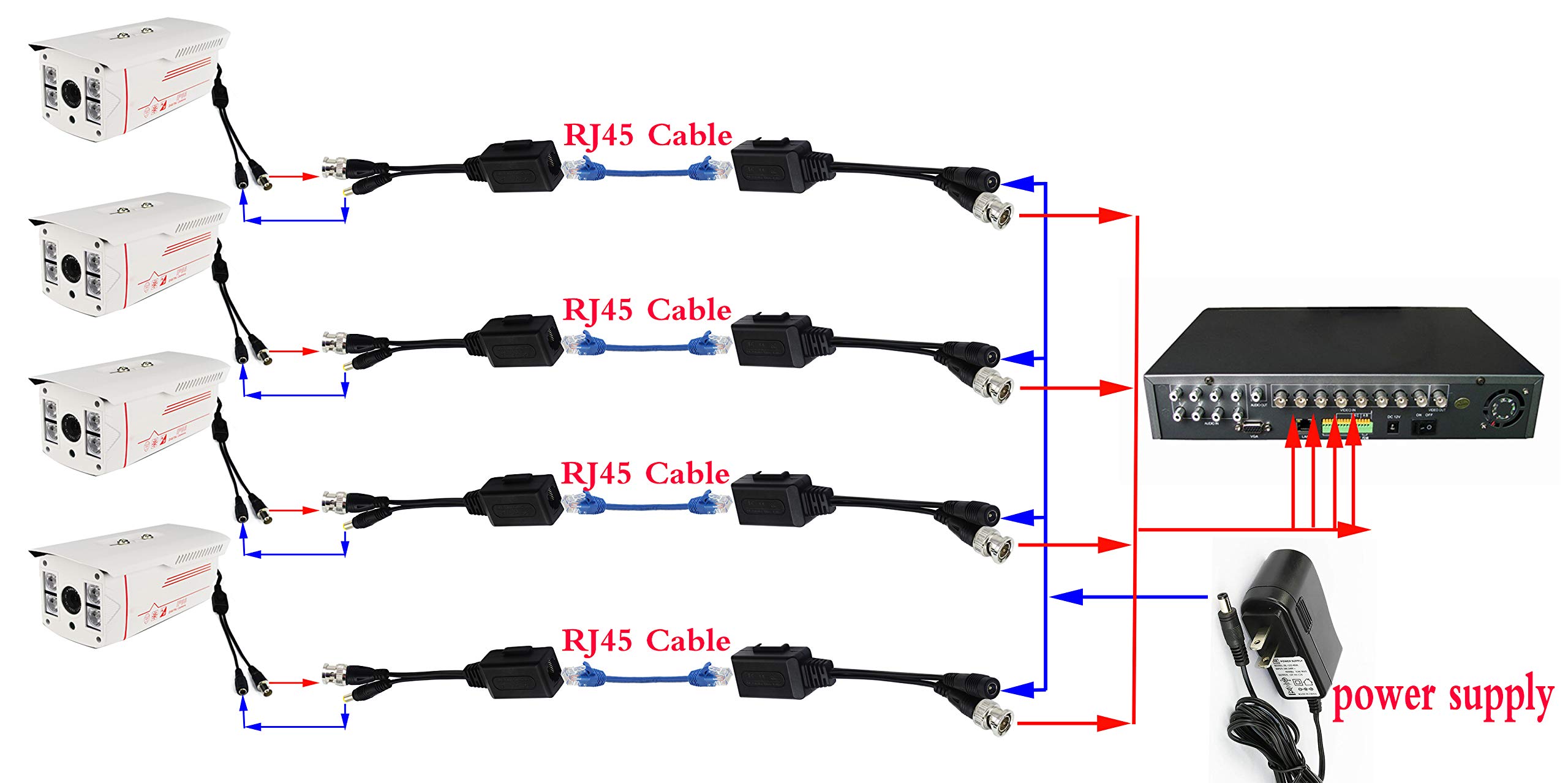

B Maximum distance length：(CVBS/Analog)(960H:300m/1,000ft )This video transceiver allows transmission of CCTV video and low voltage power over UTP cable. Power and Video are routed via UTP and RJ45 connections.Super Extensive Applications:Support all video devices, such as camera, monitor, DVR card and recorder etc.Compatible with all digital CVI, TVI and AHD Cameras. Note: Power voltage drop calculations: For 12V DC 1Amp, Cable distance should not exceed 90 feet/27 meters.For longer distances, please use 14V DC, 16V DC,18V DC,20-48V DC . Note:RJ45 video balun is not waterproof. For indoor use only.Make sure the rj45 for camera side and DVR side are the same standardsWrongfully mixing the colors may result in burning the camera and devices.Note: This product is without the indicator light
